Advantech’s High Performance Embedded Computers are powered by Intel® Core and ARM processors, support multiple I/O expansions, and wide temperature ranges. These fanless embedded PCs are ideal for industrial and factory automation, cabinet integration, and other high performance applications..

Modular Expansion Fanless Embedded Computers


	Compact Dual Layer Embedded PC ARK-2250L	Wide Range Power Embedded PC w/ Expansion Slots ARK-3520P	Flexible Expansion Embedded PC ARK-3520L
Processor	Intel® Core™ i7-6600U/ Intel® Core™ i3-6100U	Intel® Core™ i7-6820EQ Intel® Core™ i5-6440EQ	Intel® Core™ i7-6820EQ / Intel® Core™ i5-6440EQ
Memory	DDR3L SO-DIMM up to 16 GB	DDR3L SO-DIMM up to 32 GB	DDR3L SO-DIMM up to 32 GB
Storage	1x full size mSATA 1x 2.5" SATA storage bay 2nd 2.5" SATA bay by optional add-on	1x Full-Size mSATA 2x removable 2.5" SATA bays (support SATA RAID 0, 1)	1x Full-Size mSATA 2x 2.5" SATA bays total (1x default internal bay & optional 2nd internal bay or 2x removable bays)
Display	VGA, HDMI, Optional Display Module	VGA/HDMI/Optional Display Module	VGA/HDMI/Optional Display Module
Power	12VDC (9-36VDC by optional add-on)	9-36VDC	12VDC (9-36VDC by optional add-on)
Expansion	2x Full-size Mini-PCIe (1x shared with mSATA) iDoor module	2x Full-size Mini-PCIe (1x shared with mSATA) 2x PCI (default) or 2x PCIex4 (option) iDoor module	2x Full-size Mini-PCIe (1x shared with mSATA) Optional Riser Card: (2x PCI) or (2 x PCIex4) or (2x PCI+ 1x PCIex4) 1x M.2 E-key iDoor module
I/O Ports	4x USB3.0 2x USB2.0 4x RS-232/422/485 2x GbE 8 bit GPIO Dual layer expansion	6x USB3.0 2x USB2.0 4x RS-232 4x RS-232/422/485 2x GbE 16 bit GPIO	6x USB3.0 2x USB2.0 4x RS-232 4x RS-232/422/485 2x GbE 16 bit GPIO
Wide Temp*	-20 ~ 60°C	-20 ~ 60°C	-20 ~ 60°C
	From Contact us for a quote	From $2,110.00	Coming Soon
	Datasheet	Datasheet	Datasheet
	Learn More	Learn More	Learn More

Check datasheet for detailed system specifications

Thin Industrial Embedded PCs

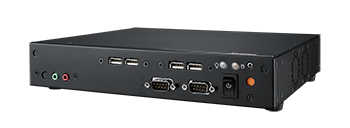

	Full Power Embedded PC EPC-T2285	Power Efficient Embedded PC EPC-T1232
Processor/System	Intel® Core™ i5-6500TE/ Intel® Celeron® G3900	Intel Core™ i5-6300U/ Intel Core™ i3-6100U
Memory	DDR4 SO-DIMM up to 32GB	DDR4 SO-DIMM up to 32GB
Storage	1x 2.5" SATA bay 1x Full-Size mSATA	1x 2.5" SATA bay 1x Full-Size mSATA
Display	VGA, DP++	HDMI, DP++
Power	12VDC	12VDC
Expansion	1x Full-size Mini-PCIe e (shared with mSATA) 1x Half-size Mini-PCIe	2x Full-size Mini-PCIe (1x shared with mSATA)
I/O Ports	4x USB2.0 1x RS-232 1x RS-232/422/485 2x GbE	2x USB2.0 4x USB3.0 2x RS-232 2x GbE
Operating Temp	0 - 45 °C	0 - 45 °C
	From Contact us for a quote	Coming Soon
	Datasheet	Datasheet
	Learn More	Learn More

Check datasheet for detailed system specifications

Embedded PCs with Flexible CPU Options


	Intel® Q170 i-series Mini-ITX Embedded PC EPC-B2275	Intel® H81 i-series Mini-ITX Embedded PC EPC-B2203
Processor	Intel® Core™ i7/i5/i3 LGA 1150P	Intel® Core™ i7/i5/i3 LGA 1150P
Memory	DDR4 SO-DIMM up to 32 GB	DDR3 SO-DIMM up to 16 GB
Storage	2x 2.5" SATA bays or 1x 2.5" SATA bay + 1x slim ODD 1x Full-Size mSATA	2x 2.5" SATA bays or 1x 2.5" SATA bay + 1x slim ODD 1x Full-Size mSATA
Display	VGA, HDMI, DP++	VGA/DP++/DVI-D
Power	ATX-150W or External AC-DC 120W	ATX-150W or External AC-DC 120W
Expansion	1x Full-size Mini-PCIe (1x shared with mSATA) 1x M.2 B-key 1x low profile, half-length, PCIe x16 slot	2x Full-size Mini-PCIe (1x shared with mSATA) 1x low profile, half-length, PCIe x16 slot
I/O Ports	4x USB3.0 1x RS-232 2x GbE	2x USB3.0 2x USB2.0 1x RS-232 2x GbE
Operating Temperature	0 - 40 °C	0 - 40 °C
	From Contact us for a quote	From Contact us for a quote
	Datasheet	Datasheet
	Learn More	Learn More

Check datasheet for detailed system specifications

Select Peripherals

Industrial Storage

• Wide temp (-40°~85°C)
• SLC: 64 to 512GB
• Ultra MLC: 64 to 512GB
• MLC: 128GB to 2TB

See Details

Industrial Memory

• Consumer Temp 0~70°C and Wide temp -40~85°C
• DDR3L SO-DIMM
• 1GB/2GB/4GB/8GB

See Details

Display Module

• 6.5”-21.5” size options
• VGA, DVI, HDMI Interfaces
• Standard temp 0`50°C
• Wide temp. -20~70°C

See Details

Wireless Module

• Wi-Fi/Bluetooth, 3g and GPS
• Standard temp. 0~60°C
• Wide temp -40~85°

See Details

iDoor Module

• Isolated high speed COM ports
• CANBus/Parallel/GbE
• 24-Channel Isolated Digital I/0

See Details

ARK Plus Expansion

• 3 x GbE supported by switch
• 4 x RS232/422/485
• 4 x 10/100/1000BaseT(x)PoE

See Details

Software Offerings

FREE Demo Available - How it Works Video

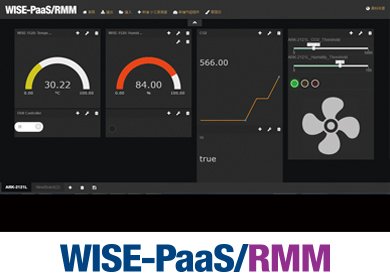

Remote Monitoring and Management

• Data and Device Management
• Built-in 15+ Real-time Monitoring Widgets
• Up to 1000 Device Connections

Learn More

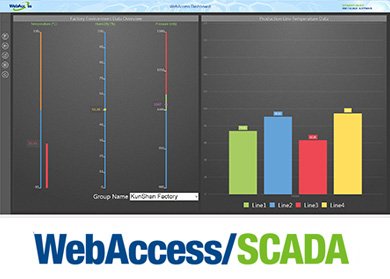

IoT Application Software Platform

• Dashboard Editor and Viewer
• Widget Library & Widget Builder
• Cross browser & Device Viewing

Learn More

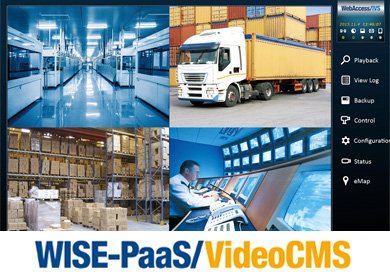

Video Content Management

• Intelligent video management & analytics
• Selectable IVA modules for various apps
• Modularized SDK

Learn More

Resources

Watch Videos Read the News

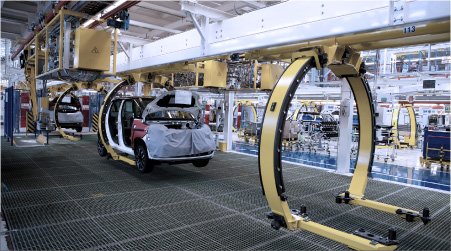

Empower Automated Optical Inspection for Automobile Factory

Enhancing the quality of production lines is vital in the industrial 4.0 era. Automated Optical Inspection (AOI) systems are becoming the quality control method of choice to replace manual checks. AOI enables fast and accurate inspection of electronics assemblies to ensure that the quality of product leaving the production line is high...

Read Case Study >

Flexible Modules Enable Real-Time Video for Ambulance Telemedicine

Modern technologies are expanding the ways medical care can be delivered and bringing unparalleled efficiency. This is especially significant for emergency medical services (EMS), where seconds can make the difference between life and death. With the advancements in telecommunication bandwidth and real-time mobile technologies...

Read Case Study >

Go Live with High Quality Video Streaming

In a world of thriving social media with 3G/4G broadband mobile communications, more and more live broadcasts are streaming into Facebook, YouTube, vlogs and other online video platforms. Anyone with a smartphone can become a live event streamer or news broadcaster; access to a worldwide audience is in his/her palm.

Read Case Study >

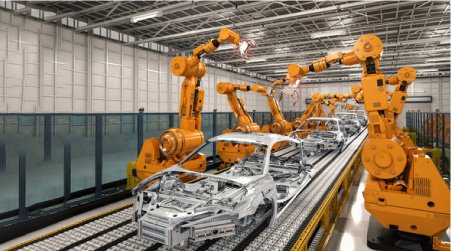

Robotic Manufacturing for Automobiles

The ever-increasing manufacturing speed and precision brought by advancements in robotic technology have given automakers an important competitive edge in producing premier quality autos. Safety, quality, and capability are the main reasons for adopting robotic technology.

Read Case Study >

Videos

Rugged Embedded Computers
Looking for more embedded computers options? Check out Advantech’s full selection by:

Processor

Advantech has a full selection of embedded processors from leading manufacturers including Intel® and AMD® to match your specific embedded application needs.

Full Selection

Expansion

Expandable line of fanless embedded computers offers rugged construction with scalability features for commercial systems and other i/o intensive applications.

Full Selection

Wide Temp

Advantech offers many models of wide temperature embedded computers designed for most extreme industrial applications, ideal for outdoor and harsh environments.

Full Selection
