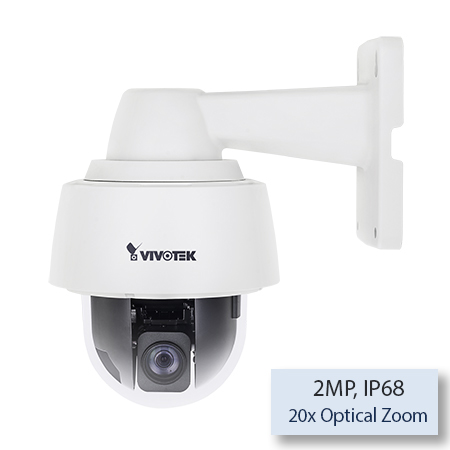

XCAM-SD9361-V1 VIVOTEK SD9361-EHL 2MP Indoor/Outdoor Day/Night Speed Dome IP Network Camera, Vari-focal 4.7-94mm Lens, 1920x1080, 60fps, H.265, H.264, MJPEG, IP68, Vandal-proof IK10, PoE

VIVOTEK SD9361-EHL 2MP Indoor/Outdoor Day/Night Speed Dome IP Network Camera, Vari-focal 4.7-94mm Lens, 1920x1080, 60fps, H.265, H.264, MJPEG, IP68, Vandal-proof IK10, PoE
  • VIVOTEK SD9361-EHL 2MP Indoor/Outdoor Day/Night Speed Dome IP Network Camera, Vari-focal 4.7-94mm Lens, 1920x1080, 60fps, H.265, H.264, MJPEG, IP68, Vandal-proof IK10, PoE

  1. H.265 Compression
  2. 1080P Full HD CMOS Sensor
  3. 60 fps @ 1920x1080 (2MP)
  4. 20x Optical Zoom
  5. Vari-focal 4.7-94mm
  6. 360° Continuous Pan and 110° Tilt
  7. WDR Pro (100dB)
  8. IP68-rated and NEMA 4X Housing
  9. Temperature is -40⁰C ~55⁰C & Defog
Resources
Resources Download
DownloadExtended SpecificationsReturn Policy
Please visit via PC to place order/quote
Make an inquiry
Please Select Purchase Qty X
confirm
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
IP Camera
Accessory List
No
IP Camera
Auto-Iris
DC-Iris
IP Camera
Beam Angle
60 fps @1920x1080 ; 30 fps @1920x1080
IP Camera
Compression
H.265 & H.264 & MJPEG
IP Camera
Day/Night
Yes
IP Camera
Dimension
18.11 x 11 x 13 inch
IP Camera
Frame/Second
60 fps @1920x1080 ; 30 fps @1920x1080
IP Camera
IK-10
Yes
IP Camera
IR Illumination
No
IP Camera
Lens
Vari-Focal 4.7 - 94mm 20x Optical Zoom
IP Camera
Manufacturer
Vivotek
IP Camera
On-Board Storage
SD/SDHC/SDXC Card Slot
IP Camera
Power Adaptor Included
No
IP Camera
Power Consumption
No Power Consumption; Max 48 W/ 26 W (Heater on/off)
IP Camera
Power Input
24V DC 24V AC 60W UPoE
IP Camera
Protection Level
IP68
IP Camera
Resolution (Sensor)
1920x1080 (2MP)
IP Camera
Sensor
1/3" CMOS
IP Camera
Temperature
-40°C ~ 65°C (-40°F ~ 149°F)
IP Camera
Type
Outdoor
IP Camera
Warranty
3-Year
IP Camera
WDR
WDR Pro (100dB)
IP Camera
Weight(kg)
4.8
