XCAM-MD8563-V1 VIVOTEK MD8563-EHF2 2MP Outdoor Mobile Dome IP Network Camera, WDR Pro, 3DNR, 1920x1080, 30fps, H.264, MPEG-4, EN50155 Mobile Surveillance, IP66, Vandal-proof IK10, PoE

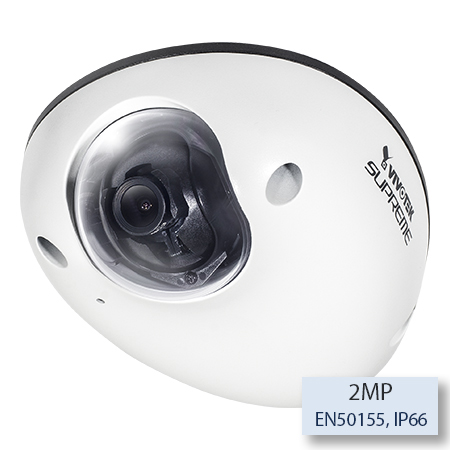

VIVOTEK MD8563-EHF2 2MP Outdoor Mobile Dome IP Network Camera, WDR Pro, 3DNR, 1920x1080, 30fps, H.264, MPEG-4, EN50155 Mobile Surveillance, IP66, Vandal-proof IK10, PoE
  • VIVOTEK MD8563-EHF2 2MP Outdoor Mobile Dome IP Network Camera, WDR Pro, 3DNR, 1920x1080, 30fps, H.264, MPEG-4, EN50155 Mobile Surveillance, IP66, Vandal-proof IK10, PoE

  1. 2-Megapixel 1/2.7" CMOS Sensor
  2. 30 fps @ 1920x1080 (2MP)
  3. EN50155 Compliance for Mobile Surveillance
  4. WDR Pro (100dB) Visibility in Bright & Dark
  5. IP66-rated and Vandal-proof IK10-rated Housing
  6. Built-in 802.3af PoE
  7. Video Rotation
Resources
Resources Download
DownloadExtended SpecificationsReturn Policy
Please visit via PC to place order/quote
Make an inquiry
Please Select Purchase Qty X
confirm
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
IP Camera
Accessory List
No
IP Camera
Auto-Iris
No
IP Camera
Beam Angle
30 fps @1920x1080
IP Camera
Compression
Dual (H.264/MJPEG)
IP Camera
Day/Night
No
IP Camera
Dimension
7.1 x 5.91 x 5.12 inch
IP Camera
Frame/Second
30 fps @1920x1080
IP Camera
IK-10
Yes
IP Camera
IR Illumination
No
IP Camera
Lens
Fixed 2.8mm
IP Camera
Manufacturer
Vivotek
IP Camera
On-Board Storage
MicroSD/SDHC/SDXC Card Slot
IP Camera
Power Adaptor Included
No
IP Camera
Power Consumption
Max 4.2 W
IP Camera
Power Input
PoE
IP Camera
Protection Level
Yes
IP Camera
Resolution (Sensor)
1920x1080 (2MP)
IP Camera
Sensor
1/2.7'' Progressive CMOS
IP Camera
Temperature
-40°C ~ 70°C (-40°F ~ 158°F)
IP Camera
Type
Mobile
IP Camera
Warranty
3-Year
IP Camera
WDR
WDR Pro (100dB)
IP Camera
Weight(kg)
0.8
