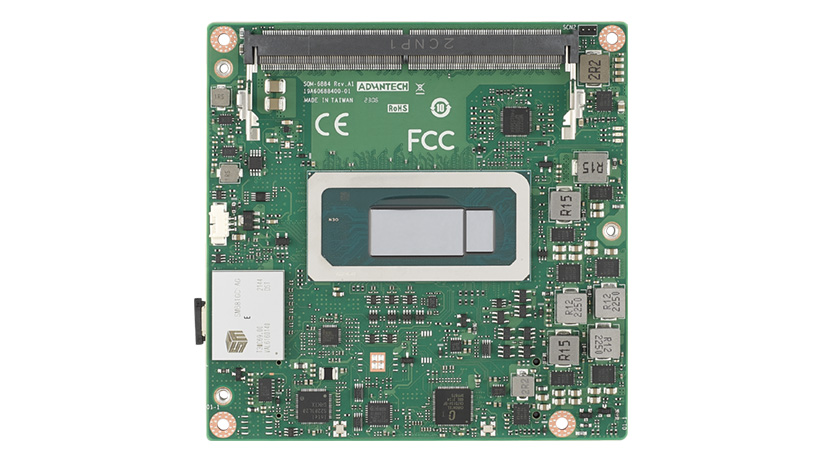

SOM-6884C7HXA-U5A2 Intel i7-13800HRE 64GLPDDR5 1TBNVME COMe Compact

Intel i7-13800HRE 64GLPDDR5 1TBNVME COMe Compact
  • Intel i7-13800HRE 64GLPDDR5 1TBNVME COMe Compact
  • Intel i7-13800HRE 64GLPDDR5 1TBNVME COMe Compact
  • Intel i7-13800HRE 64GLPDDR5 1TBNVME COMe Compact
  • Intel i7-13800HRE 64GLPDDR5 1TBNVME COMe Compact

  1. 13th Generation Intel® Core™ Processor
  2. COM Express R3.1 Compact Module Type 6 Pinout
  3. Dual channel memory up to 64GB, 4800MT/s
  4. High speed I/O: 16x PCIe Gen4, 8x PCIe Gen3, 2x USB4 & 4x USB3.2 Gen2
  5. Supports SUSI, DeviceOn and Edge AI Suite
Resources
Resources Download
DatasheetDownloadDriverManualExtended SpecificationsReturn Policy
Please visit via PC to place order/quote

$2,980.00

2 years extended warranty
Make an inquiry Add to Quote
Please Select Purchase Qty X
confirm
Add to Cart
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Display
DDI (HDMI/DVI/DisplayPort)
3 DDI ports support configurable HDMI/DisplayPort (HDMI 2.0b: 4Kx2K 48-60Hz 24bpp , DisplayPort 1.4: 4096x2304 60Hz 36bpp)
Display
LCD (TTL/LVDS/eDP)
LVDS: dual channel 24-bit up to 1920 x 1200
Form Factor
Form Factor
COM Express Compact R3.1
Form Factor
Pin-out Type
Type 6
I/O
COM Port
2 (2-wire)
I/O
GPIO
8-bit GPIO
I/O
I2C Bus
1
I/O
LPC
1
I/O
Smart Fan
2 Ports: 1 port on COM module (Notice: the input voltage of fan is aligned to Vin); 1 port on carrier board
I/O
SMBus
1
I/O
SPI Bus
Yes
I/O
TPM
TPM 2.0
I/O
USB 3.2
4
I/O
USB2.0
8
I/O
Watchdog timer
65536 level, 0 ~ 65535 sec
Memory
ECC Support
Yes
Memory
Max. Capacity
64 GB
Memory
Socket
N/A
Memory
Technology
LPDDR5
Processor
Core Number
14C (6P+8E)
Processor
CPU
Intel® Core™ i7-13800HRE
Processor
CPU TDP
45 W
Processor
LLC
24MB
Environment
Operational Temperature
-40° C ~ 85° C
Environment
Storage Temperature
-40 ~ 85° C
Environment
Vibration Resistance
3.5 Grms
Power
Supply Voltage
Vin: 8.5V ~ 20V; VSB: 4.75V ~ 5.25 V, RTC Battery: 2.0V ~ 3.3V
Power
Type
ATX: Vin, VSB; AT: Vin
Ethernet
Controller
Intel® I226
Ethernet
Speed
10/100/1000/2500 Mbps
Graphics
Controller
Intel® UHD Graphics
Environment
Relative Humidity
40° C @ 95%, Non-Condensing, operating; 60° C @ 95%, Non-Condensing, non-operating
Mechanical
Dimensions
95 x 95 mm (3.74" x 3.74")
