Home I/O Devices & Communication Industrial Communication Serial Converters, Repeaters and Suppressors Serial Repeaters

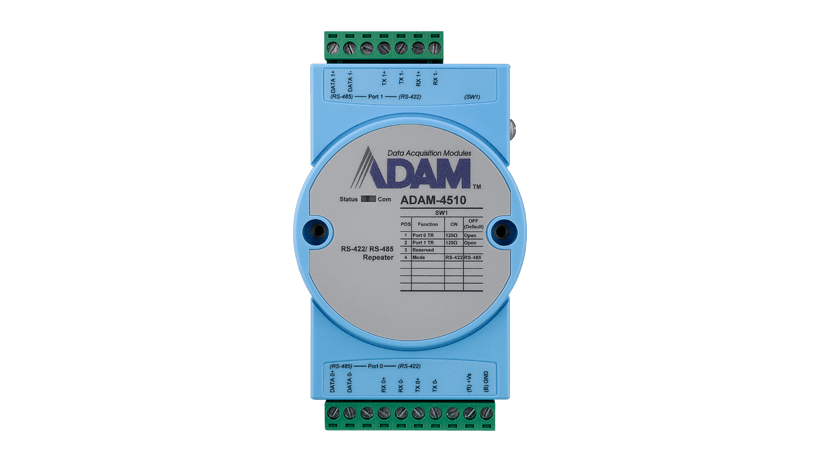

ADAM-4510-F RS-422/485 Repeater

RS-422/485 Repeater
  • RS-422/485 Repeater

  1. Automatic RS-485 data flow control
  2. Surge protection RS-485 data line
  3. Transmission speed up to 115.2 Kbps
  4. Networking up to 1200 meters (4000 feet)
  5. LED indicator to monitor status
Certifications
CE
Resources
Resources Download
DatasheetDownloadManualUtilities3D ModelExtended SpecificationsReturn Policy
Please visit via PC to place order/quote

$140.70

5 years extended warranty
Make an inquiry Add to Quote
Please Select Purchase Qty X
confirm
Add to Cart
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
General
Connectors
2 x 10-pin plug-in screw terminal
Communications
Converter/Repeater
RS-422/485 Repeater
Serial Communication
Baud Rate (bps)
1200 bps~115.2 kbps
Environment
Operating Temperature
-10~70 °C (14~158 °F)
Power Requirements
Input Voltage
10~30 VDC
