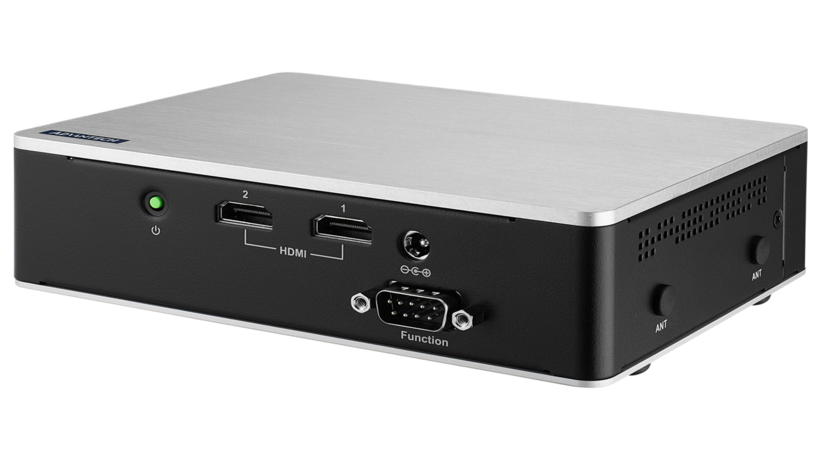

DS-450-1 Two 4K HDMI outputs Palm-sized Digital Signage Mini PC with Intel Celeron Elkhart Lake J6412 Processor

DS-450GB-U0A1U
  • DS-450GB-U0A1U

  1. Intel Celeron Elkhart Lake J6412 Quad-core Processor
  2. 4GB or 8GB memory onboard
  3. Support HDMI 2.0 (4K@60Hz) & HDMI 1.4 (4K@30Hz)
  4. 2 x Gb LAN, 2 x HDMI, 6 x USB, 1 x Function Port
  5. Power Off / Restart system easily through DeviceOn Dashboard
Certifications
CE CE CE CE CE CE CE
Resources
  • Base System
Please visit via PC to place order/quote

$510.00

2 years extended warranty
Request Quantity Discount Preview Add to Quote Add to Cart
Configure System
  • Configure Your System
  • Accessories
Base System
Base System : Two 4K HDMI outputs Palm-sized Digital Signage Mini PC with Intel Celeron Elkhart Lake J6412 Processor, 4GB Memory onboard
Two 4K HDMI outputs Palm-sized Digital Signage Mini PC with Intel Celeron Elkhart Lake J6412 Processor, 4GB Memory onboard
[ +$0.00 ]
Two 4K HDMI outputs Palm-sized Digital Signage Mini PC with Intel Celeron Elkhart Lake J6412 Processor, 8GB Memory onboard
[ +$30.00 ]
Memory
Memory : 4GB or 8GB DDR4 Memory Built-In
4GB or 8GB DDR4 Memory Built-In
[ +$0.00 ]
M.2 SSD : None
None
[ +$0.00 ]
SQF SATA M.2 2242 650-D 64G 3D TLC BiCS5 (0~70°C)
[ +$24.11 ]
SQF SATA M.2 2242 650-D 128G 3D TLC BiCS5 (0~70°C)
[ +$31.37 ]
SQF SATA M.2 2242 650-D 256G 3D TLC BiCS5 (0~70°C)
[ +$45.76 ]
SQF SATA M.2 2242 650-D 512G 3D TLC BiCS5 (0~70°C)
[ +$74.94 ]
Wireless LAN Connectivity
Wireless LAN Connectivity : Optional feature. Please contact Advantech for more details.
Optional feature. Please contact Advantech for more details.
[ +$0.00 ]
Wi-Fi6, BT5.2, M.2 Key A/E + Cables & Antennas
[ +$74.00 ]
Operating System
Operating System : None
None
Windows 10 IoT Enterprise 2021 LTSC Entry EPKEA
Power Adapter
Power Adapter : Included with the system
Included with the system
[ +$0.00 ]
Power Cord
Power Cord : Power Cable 3P/3P 1.8M
Power Cable 3P/3P 1.8M
[ +$0.00 ]
Assembly and Testing
Assembly and Testing : Standard Assembly, Functional Testing, SW installation (Moderate)
Standard Assembly, Functional Testing, SW installation (Moderate)
[ +$0.00 ]
Extended warranty
Extended warranty : NoneExtended Warranty Details
None
[ +$0.00 ]
Extended Warranty for 3 Months
[ +$4.50 ]
Extended Warranty for 6 Months
[ +$9.00 ]
Extended Warranty for 12 Months
[ +$18.00 ]
Extended Warranty for 24 Months
[ +$40.50 ]
Extended Warranty for 36 Months
[ +$67.50 ]
Mounting : None
None
[ +$0.00 ]
UNO-2000 Series Din Rail Mounting Kit
[ +$9.00 ]
UNO-2000 Series VESA Mounting Kit
[ +$41.00 ]
Flat Panel Monitors
Flat Panel Monitors : None
None
[ +$0.00 ]
6.5" VGA Ind Monitor w/Resistive TS (VGA/DP), Wide Temp
[ +$637.78 ]
12.1" XGA Ind Monitor w/Resistive TS (VGA/DP),Wide Temp
[ +$889.78 ]
15" Stainless Steel Ind. Monitor w/ Resistive TS (VGA/DP), Wide Temp
[ +$984.78 ]
17" Stainless Steel Ind. Monitor w/ Resistive TS (VGA/DP), Wide Temp
[ +$1,016.78 ]
21.5" Wide Screen Ind. Monitor w/ PCAP TS (HDMI)
[ +$1,167.00 ]
Mouse
Mouse : None
None
[ +$0.00 ]
LOGITECH M100 MOUSE OPTICAL USB(G)
[ +$24.66 ]

Comment

Specifications
Category
Attribute
Value
System
System
Two 4K HDMI outputs Palm-sized Digital Signage Mini PC with Intel Celeron Elkhart Lake J6412 Processor
Processor
Processor
Intel® Celeron® J6412 Processor
Memory
Memory
4GB or 8GB DDR4 Memory Built In
I/O Ports
I/O Ports
2 x USB 3.0
4 x USB 2.0
2 x RS-232
2 x RJ45
2 x HDMI
Expansion
Expansion
1 x M.2 2230 E-key for wireless card
Storage
Storage
1 x M.2 SSD (2242)
Operating System
Operating System
Windows 10
Operating Temperature
Operating Temperature
0~45°C (32~113°F)
Power Requirement
Power Requirement
19 Vdc
Dimensions (W x H x D)
Dimensions (W x H x D)
160 x 44 x 115 mm
6.3" x 4.5" x 1.7"
Weight
Weight
0.7 kg (1.54 lb)
