Home Panel Computers Touch Panel Computers Display Size 10" ATOM Processor

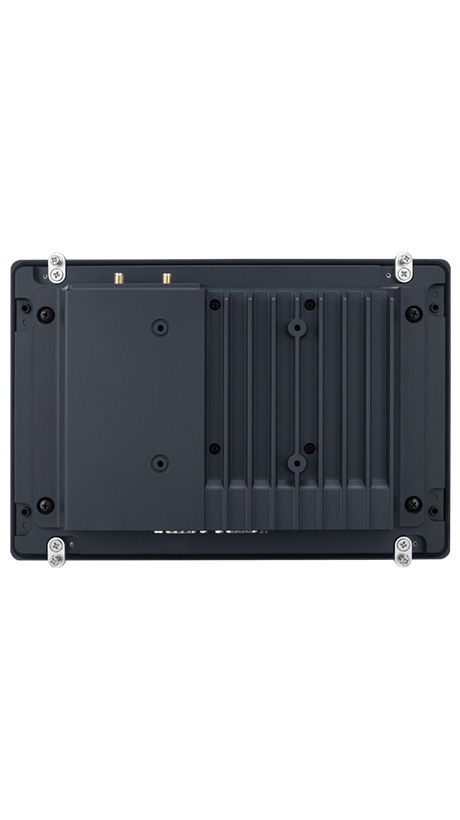

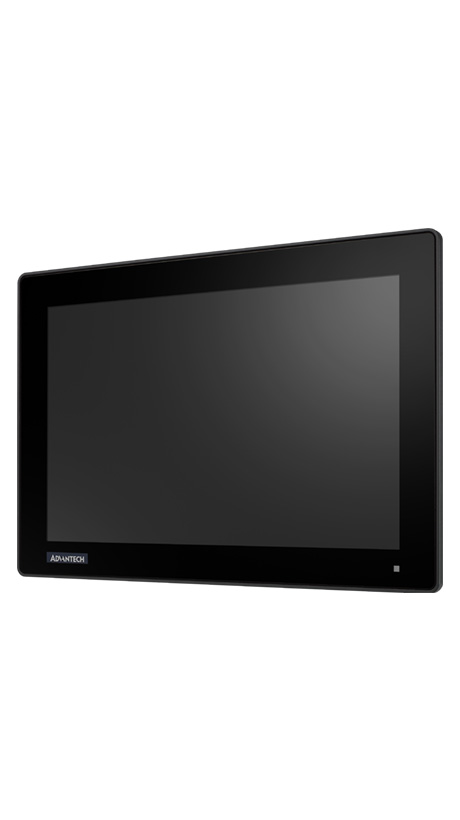

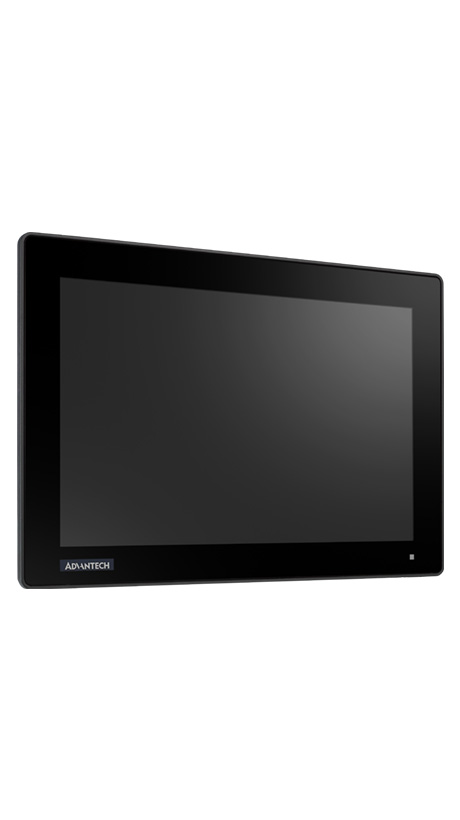

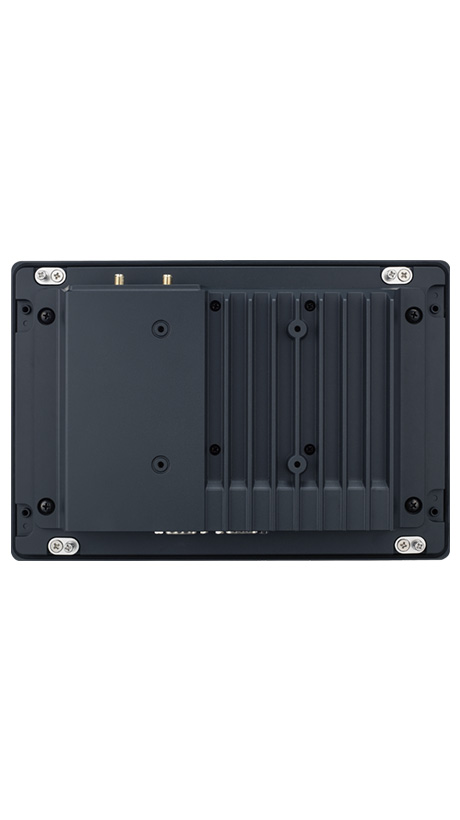

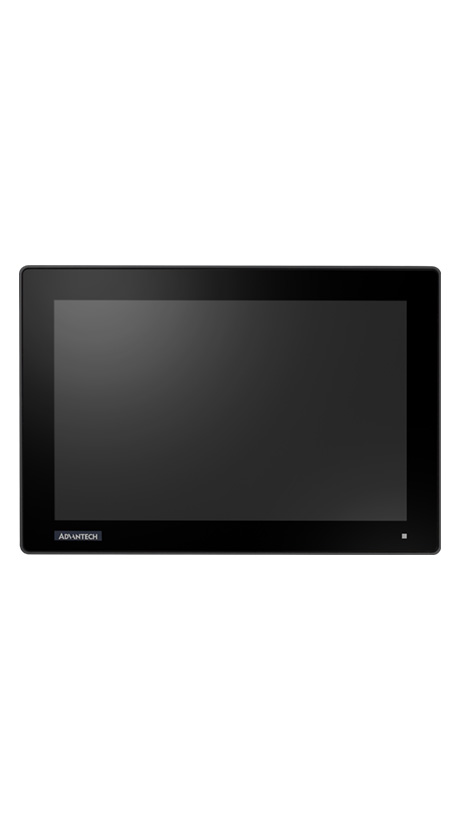

TPC-310W-1 10.1" Thin-Client Terminal with Intel® Atom® X6425E / Celeron® J6412

TPC-310W-PJ20A
  • TPC-310W-PJ20A
  • TPC-310W-PJ20A
  • TPC-310W-PJ20A
  • TPC-310W-PJ20A
  • TPC-310W-PJ20A
  • TPC-310W-PJ20A
  • TPC-310W-PJ20A
  • TPC-310W-PJ20A

  1. Industrial-grade 10.1" WXGA TFT LCD with 50K lifetime and LED backlight
  2. Intel ® Elkhart Lake (EHL) Atom® x6425E Quad-core / Celeron® J6412 Quad-core
  3. Supports up to 16GB DDR4 SODIMM Memory
  4. Compact, fanless embedded system with aluminum alloy front bezel
  5. Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
  6. True-flat ultra slim bezel design with IP66 water proof of front panel
  7. Touchscreen with P-CAP multi-touch control
  8. Chassis grounding protection
Certifications
CE CE CE CE CE CE CE CE CE
Resources
  • Base System
Please visit via PC to place order/quote

$1,350.00

2 years extended warranty
Request Quantity Discount Preview Add to Quote Add to Cart
Configure System
  • Configure Your System
  • Accessories
Base System
Base System : 10.1" WXGA Panel PC,Celeron J6412
10.1" WXGA Panel PC,Celeron J6412
[ +$0.00 ]
10.1" WXGA Panel PC, Atom X6425E
[ +$88.00 ]
Memory
Memory : 8GB DDR4 SODIMM-3200 1GbX8 SAM
4GB SO-DDR4 3200 512MX16 SAM
[ -$-144.00 ]
8GB DDR4 SODIMM-3200 1GbX8 SAM
[ +$0.00 ]
16GB DDR4 SODIMM-3200 1GbX8 SAM
[ +$325.00 ]
M.2 SSD : None
None
[ +$0.00 ]
SQF SATA M.2 2242 650-D 64G 3D TLC BiCS5 (0~70°C)
[ +$60.69 ]
SQF SATA M.2 2242 650-D 64G 3D TLC BiCS5 (-20~85°C)
[ +$64.53 ]
SQF SATA M.2 2242 650-D 64G 3D TLC BiCS5 (-40~85°C)
[ +$82.75 ]
SQF SATA M.2 2242 650-D 128G 3D TLC BiCS5 (0~70°C)
[ +$105.49 ]
SQF SATA M.2 2242 650-D 128G 3D TLC BiCS5 (-20~85°C)
[ +$112.20 ]
SQF SATA M.2 2242 650-D 128G 3D TLC BiCS5 (-40~85°C)
[ +$148.65 ]
SQF SATA M.2 2242 650-D 256G 3D TLC BiCS5 (0~70°C)
[ +$195.09 ]
SQF SATA M.2 2242 650-D 256G 3D TLC BiCS5 (-20~85°C)
[ +$207.56 ]
SQF SATA M.2 2242 650-D 256G 3D TLC BiCS5 (-40~85°C)
[ +$280.44 ]
SQF SATA M.2 2242 650-D 512G 3D TLC BiCS5 (0~70°C)
[ +$374.56 ]
SQF SATA M.2 2242 650-D 512G 3D TLC BiCS5 (-20~85°C)
[ +$398.53 ]
SQF SATA M.2 2242 650-D 512G 3D TLC BiCS5 (-40~85°C)
[ +$544.30 ]
SQF SATA M.2 2242 650-D 1T 3D TLC BiCS5 (0~70°C)
[ +$733.77 ]
SQF SATA M.2 2242 650-D 1T 3D TLC BiCS5 (-20~85°C)
[ +$780.76 ]
SQF SATA M.2 2242 650-D 1T 3D TLC BiCS5 (-40~85°C)
[ +$1,072.30 ]
SQF SATA M.2 2242 650-D 32G 3D sTLC BiCS5 (-40~85°C)
[ +$123.57 ]
SQF SATA M.2 2242 650-D 64G 3D sTLC BiCS5 (-40~85°C)
[ +$228.24 ]
SQF SATA M.2 2242 650-D 128G 3D sTLC BiCS5 (-40~85°C)
[ +$438.40 ]
SQF SATA M.2 2242 650-D 256G 3D sTLC BiCS5 (-40~85°C)
[ +$858.72 ]
SQF M.2 2280 650-D 64G 3D TLC (BiCS5) (0~70°C)
[ +$58.91 ]
SQF M.2 2280 650-D 64G 3D TLC (BiCS5) (-20~85°C)
[ +$62.75 ]
SQF M.2 2280 650-D 64G 3D TLC (BiCS5) (-40~85°C)
[ +$80.97 ]
SQF M.2 2280 650-D 128G 3D TLC (BiCS5) (0~70°C)
[ +$103.85 ]
SQF M.2 2280 650-D 128G 3D TLC (BiCS5) (-20~85°C)
[ +$110.42 ]
SQF M.2 2280 650-D 128G 3D TLC (BiCS5) (-40~85°C)
[ +$146.86 ]
SQF M.2 2280 650-D 256G 3D TLC (BiCS5) (0~70°C)
[ +$193.31 ]
SQF M.2 2280 650-D 256G 3D TLC (BiCS5) (-20~85°C)
[ +$205.77 ]
SQF M.2 2280 650-D 256G 3D TLC (BiCS5) (-40~85°C)
[ +$278.66 ]
SQF M.2 2280 650-D 512G 3D TLC (BiCS5) (0~70°C)
[ +$372.78 ]
SQF M.2 2280 650-D 512G 3D TLC (BiCS5) (-20~85°C)
[ +$396.62 ]
SQF M.2 2280 650-D 512G 3D TLC (BiCS5) (-40~85°C)
[ +$542.38 ]
SQF M.2 2280 650-D 1T 3D TLC (BiCS5) (0~70°C)
[ +$731.72 ]
SQF M.2 2280 650-D 1T 3D TLC (BiCS5) (-20~85°C)
[ +$778.57 ]
SQF M.2 2280 650-D 1T 3D TLC (BiCS5) (-40~85°C)
[ +$1,070.11 ]
SQF M.2 2280 650-D 2T 3D TLC (BiCS5) (0~70°C)
[ +$1,522.76 ]
SQF M.2 2280 650-D 2T 3D TLC (BiCS5) (-20~85°C)
[ +$1,620.16 ]
SQF M.2 2280 650-D 2T 3D TLC (BiCS5) (-40~85°C)
[ +$2,232.42 ]
SQF M.2 2280 650-D 32G 3D sTLC (BiCS5) (-40~85°C)
[ +$121.52 ]
SQF M.2 2280 650-D 64G 3D sTLC (BiCS5) (-40~85°C)
[ +$226.32 ]
SQF M.2 2280 650-D 128G 3D sTLC (BiCS5) (-40~85°C)
[ +$436.35 ]
SQF M.2 2280 650-D 256G 3D sTLC (BiCS5) (-40~85°C)
[ +$856.39 ]
SQF M.2 2280 650-D 512G 3D sTLC (BiCS5) (-40~85°C)
[ +$1,774.56 ]
SSSTC M.2 2280 256GB NVME G4x4 DRAMLESS SSD -25°C ~ +85 °C
[ +$224.68 ]
SSSTC M.2 2280 512GB NVME G4x4 DRAMLESS SSD -25°C ~ +85 °C
[ +$315.10 ]
SSSTC M.2 2280 1TB NVME G4x4 DRAMLESS SSD -25°C ~ +85 °C
[ +$575.40 ]
SSSTC M.2 2280 2TB NVME G4x4 DRAMLESS SSD -25°C ~ +85 °C
[ +$1,096.00 ]
SQF M.2 2280 720-D 128G 3D TLC BiCS5 (0~70°C)
[ +$107.41 ]
SQF M.2 2280 720-D 128G 3D TLC BiCS5 (-20~85°C)
[ +$114.26 ]
SQF M.2 2280 720-D 256G 3D TLC BiCS5 (0~70°C)
[ +$197.14 ]
SQF M.2 2280 720-D 256G 3D TLC BiCS5 (-20~85°C)
[ +$209.75 ]
SQF M.2 2280 720-D 512G 3D TLC BiCS5 (0~70°C)
[ +$376.20 ]
SQF M.2 2280 720-D 512G 3D TLC BiCS5 (-20~85°C)
[ +$400.31 ]
SQF M.2 2280 720-D 1T 3D TLC BiCS5 (0~70°C)
[ +$735.14 ]
SQF M.2 2280 720-D 1T 3D TLC BiCS5 (-20~85°C)
[ +$782.27 ]
SQF M.2 2280 720-D 1T 3D TLC BiCS5 (-40~85°C)
[ +$1,073.81 ]
SQF M.2 2280 720-D 2T 3D TLC BiCS5 (0~70°C)
[ +$1,526.32 ]
SQF M.2 2280 720-D 2T 3D TLC BiCS5 (-20~85°C)
[ +$1,624.00 ]
SQF M.2 2280 720-D 2T 3D TLC BiCS5 (-40~85°C)
[ +$2,236.25 ]
Wireless LAN Connectivity
Wireless LAN Connectivity : None
None
[ +$0.00 ]
Wifi6 + BT5.3 module w/ Antenna, -40~85°C
[ +$99.00 ]
Operating System
Operating System : None
None
EdgeLinux V4.2 based on Ubuntu 22.04
Windows 10 IoT Enterprise 2021 LTSC Entry EPKEA
Win 11 IoT Ent LTSC 2024 ORY OEI Entry EPKEA
Windows 11 Professional 64-bit English USA
Power Adapter
Power Adapter : None
None
[ +$0.00 ]
100-240V 60W 24V 2.5A Power Supply
[ +$46.00 ]
Assembly and Testing
Assembly and Testing : Standard Assembly, Functional Testing, SW installation (Moderate)
Standard Assembly, Functional Testing, SW installation (Moderate)
[ +$0.00 ]
Extended warranty
Extended warranty : NoneExtended Warranty Details
None
[ +$0.00 ]
Extended Warranty for 3 Months
[ +$12.90 ]
Extended Warranty for 6 Months
[ +$25.80 ]
Extended Warranty for 12 Months
[ +$51.60 ]
Extended Warranty for 24 Months
[ +$116.10 ]
Extended Warranty for 36 Months
[ +$193.50 ]
Keyboard + Mouse
Keyboard + Mouse : None
None
[ +$0.00 ]
Logitech MK120 KB + Mouse USB US
[ +$30.14 ]

Comment

Specifications
Category
Attribute
Value
System
System
10.1" WXGA Fanless Panel PC with ntel® Atom® X6425E / Celeron® J6412
Processor
Processor
Intel® Atom™ X6425E/Celeron® J6412
Memory
Memory
DDR4 SODIMM 3200 MHz (Max 16GB)
Storage
Storage
1 x M.2 M Key 2242/2280 (SATA/PCIe)
LAN Interface
LAN Interface
2 x 10/100/1000Base-T

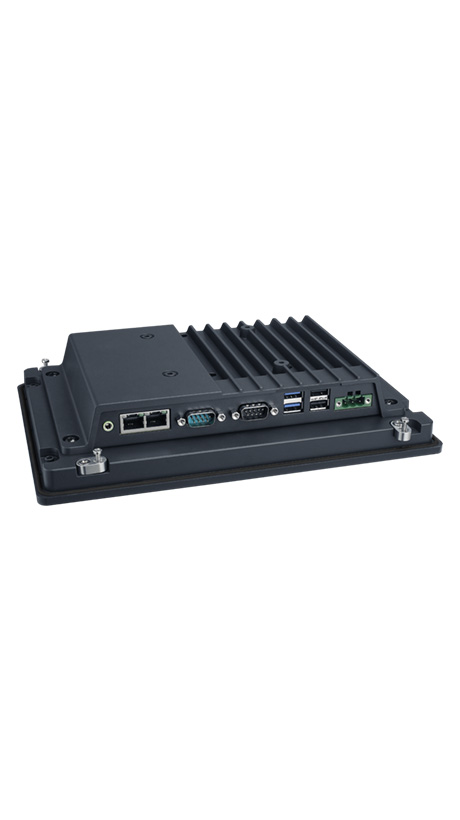

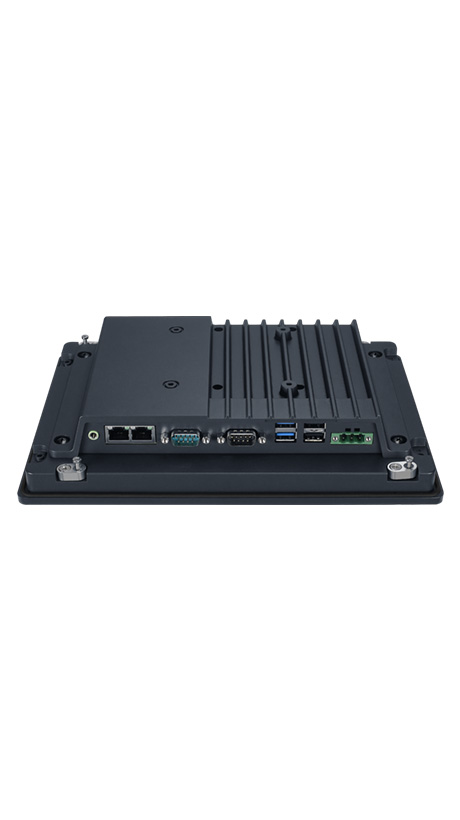

I/O Ports
I/O Ports
1 x RS-232
1 x RS-232/422/485
2 x USB3.0
2 x USB2.0
1 x Line Out
Expansion
Expansion
1 x M.2 E Key 2230 (PCIe & USB 2.0)
Dimensions (W x H x D)
Dimensions (W x H x D)
260 x 179 x 50mm ( 10.23 x 7 x 1.96 inch)
Weight
Weight
2.6 kg (5.7lb)
Operating System
Operating System
Windows 10 LTSC
Windows 11
Linux
Power Input Voltage
Power Input Voltage
24 VDC +/- 20%
Power Consumption
Power Consumption
19.2W (Typical)
Display Type
Display Type
10.1 TFT LED LCD
Max. Resolution
Max. Resolution
1280 x 800
Luminance
Luminance
500 nits
Touchscreen
Touchscreen
PCAP Multi-Touch
Operating Temperature
Operating Temperature
-20 ~ 60° C (-4 ~ 140° F)
Certification
Certification
BSMI, CCC, CE, FCC Class A, UL
Mounting Options
Mounting Options
VESA, Wall, Panel
