Home Industry Solutions Power & Energy Class I, Division 2 Industrial Communication Industrial Ethernet Switches

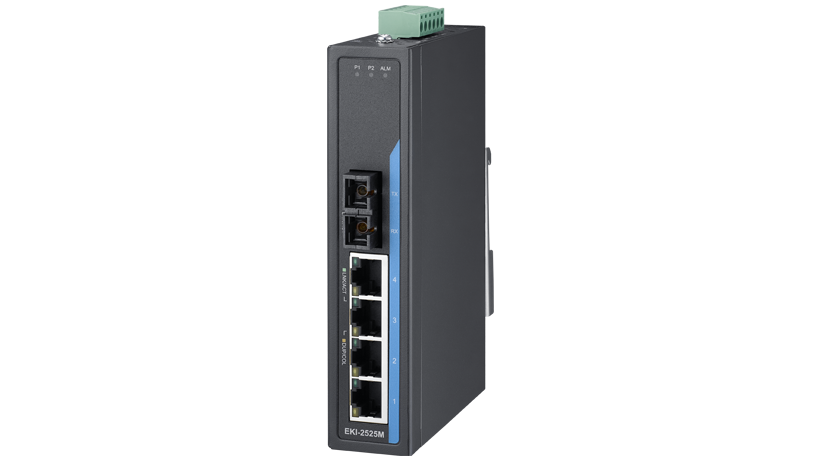

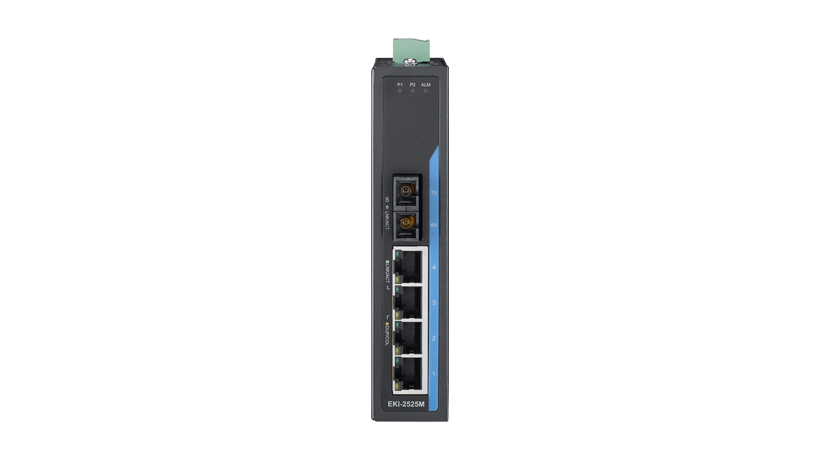

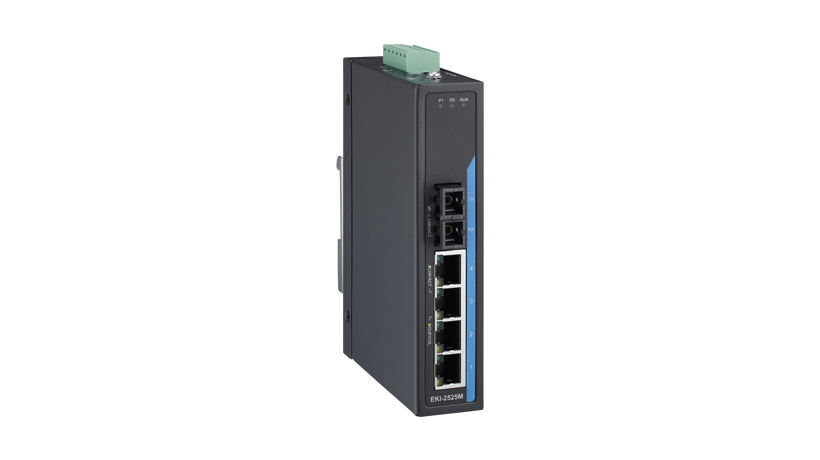

EKI-2525M-BE NEW 4-port 10/100M+1 Fiber unmanaged Ethernet switch

4-port 10/100M+1 Fiber unmanaged Ethernet switch
  • 4-port 10/100M+1 Fiber unmanaged Ethernet switch
  • 4-port 10/100M+1 Fiber unmanaged Ethernet switch
  • 4-port 10/100M+1 Fiber unmanaged Ethernet switch

  1. Provides 4 x 10/100 Mbps Ethernet ports with RJ-45 connector
  2. Provides 1 x 100 Mbps Multi-mode SC type fiber optic port
  3. Supports full/half duplex flow control
  4. Supports MDI/MDI-X auto crossover
  5. Provides 3,000 VDC surge (EFT) protection
  6. Provides 4,000 VDC Ethernet ESD protection
  7. Provides broadcast storm protection
  8. Provides redundant 12 ~ 48 VDC power input

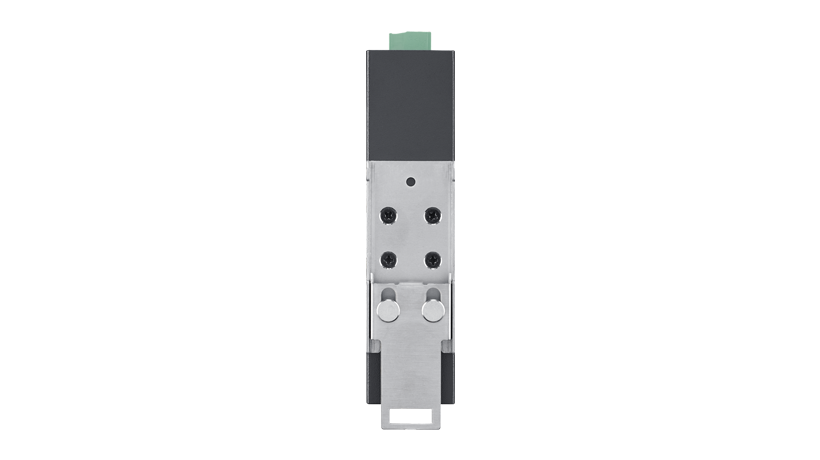

  9. Provides flexible mounting: DIN-rail, panel mounting
Certifications
CE CE CE CE CE
Resources
Resources Download
DatasheetDownloadManual3D ModelExtended SpecificationsReturn Policy
Please visit via PC to place order/quote

$220.63

5 years extended warranty
Make an inquiry Add to Quote
Please Select Purchase Qty X
confirm
Add to Cart
Please Select Purchase Qty X
confirm
Features

    1. Power and Simplicity: The Widest Selection of Unmanaged Switches in the Industry

  • Advantech's EKI-2000 Series offers the best possible deal for your Ethernet connections. The super-slim IP30 metal casing design provides reliable and compact management that quickly delivers continuous data transmission with a high degree of security, making it an ideal option as your Ethernet solution.

  • Feature Highlights

    1. Highly Versatile Switch Products
      • Ranging from 5 to 28 ports. More than 30 skus
      • Supports din rail, wall mount or rack mount design
      • Supports fast Ethernet or gigabit transmission
      • Optional fiber ports help you conquer the distance boundary
      • PoE functionality serves power and data transmission with one cable
    2. Plug-and-Play
      • No setting effort
      • No compatibility issues
      • Goes along with any type of network infrastructure
      • Slim size for instant installation with minimum cost and effort, allowing users to upgrade to an intelligent plant with ease
    3. Robust Communication Solutions
      • Super slim IP30 metal casing provides reliable and compact management
      • Provides broadcast storm protection that prevents system from being overwhelmed by continuous multicast traffic
      • Supports wide operating temperatures from -40 to 75°C (EKI-2525I/EKI-2528I)

  • Product Dimensions and Packing Information

    1. Product Dimensions
    2. Unit: mm
    1. Packing
      • Advantech's EKI unmanaged Ethernet switch series provides several mounting methods to fit the varying needs of different projects in the field.
    1. Opening the Box
Specifications
Category
Attribute
Value
Power
Power Connector Type
6-pin removable screw terminal
Power
Power Consumption
5W
Power
Power Input (AC)
-
Power
Power Input (Battery)
-
Power
Power Input (DC)
12 ~ 48 VDC
Power
Power Input (PoE)
-
Power
Redundant Dual Inputs
Yes
Protection
Overload Current
Present
Protection
Reverse Polarity
Present
Environment
Operating Temperature
-10 ~ 60°C (14 ~ 140°F)
Environment
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Environment
Temperature (Max. Operating)
60°C (140°F)
Environment
Temperature (Min. Operating)
-10°C (14°F)
Mechanism
Dimensions (W x H x D)
37 x 140 x 95 mm (1.46 x 5.51 x 3.74 in.)
Mechanism
Enclosure (Plastic)
-
Mechanism
IP Rating
IP30
Mechanism
Mounting (DIN-rail)
Yes
Mechanism
Mounting (Panel)
-
Mechanism
Mounting (Pole Mount)
-
Mechanism
Mounting (Rack Mount)
-
Mechanism
Mounting (Stack)
-
Mechanism
Mounting (Wall)
Yes
Ethernet Communication
Fiber Port Connector Type
SC Type
Ethernet Communication
Fiber Port Interface
Multi-Mode
Ethernet Communication
Fiber Port Number
1
Ethernet Communication
Fiber Transmission Distance
2 km
Ethernet Communication
Fiber Transmission Speed
100 Mbps
Ethernet Communication
RJ-45 Port Connector Type
RJ-45
Ethernet Communication
RJ-45 Port Number
4
Ethernet Communication
RJ-45 Transmission Distance
100 m
Ethernet Communication
RJ-45 Transmission Speed
10/100 Mbps
Certification
EMI
FCC Part 15 Subpart B Class A, EN 55022 Class A
Certification
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
Certification
Safety
UL/cUL 60950-1, Class I Division 2
Warranty
Warranty Period
5 years
PoE Information
PoE Budget
-
PoE Information
PoE Output
-
PoE Information
PoE Port Number
-
PoE Information
Support PoE
No
Recommended Peripherals

Accessory Products

Part No. Description Unit Price Qty
96PSD-A10W24-MM A/D 100-240V10W 24V MDR DIN RAIL $15.00
Part No. Qty
96PSD-A10W24-MM
A/D 100-240V10W 24V MDR DIN RAIL
Unit Price: $15.00
