Home I/O Devices & Communication Industrial Communication Ethernet Switches Unmanaged Switches

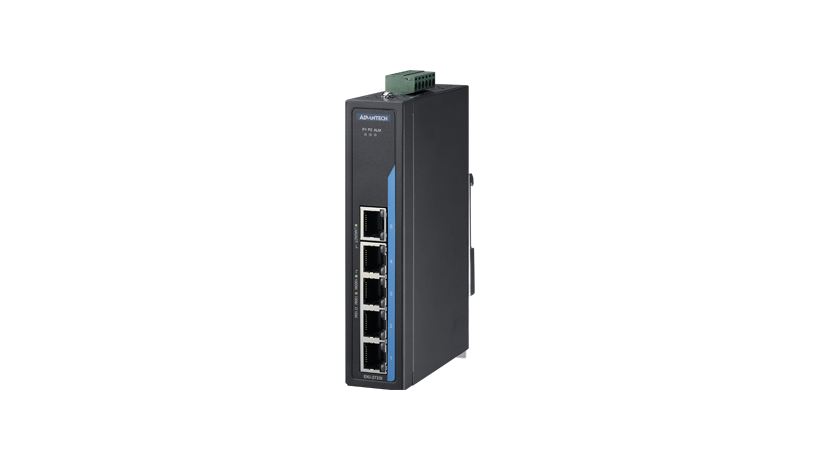

EKI-2725I-CE 5-port Unmanaged GbE Switch W/T

5-port Unmanaged GbE Switch W/T
  • 5-port Unmanaged GbE Switch W/T
  • 5-port Unmanaged GbE Switch W/T
  • 5-port Unmanaged GbE Switch W/T

  1. Provides 5 Gigabit Ethernet ports with Auto MDI/MDI-X
  2. Supports 10/100/1000 Mbps Auto Negotiation
  3. Supports jumbo frame transmission up to 9kbytes
  4. Provides Slim size, DIN-rail with IP30 metal mechanism
  5. Supports Redundant 12 ~ 48 VDC power input and P-Fail Relay
  6. Provides broadcast storm protection
Certifications
CE CE CE CE CE
Resources
Resources Download
DatasheetDownloadManual3D ModelExtended SpecificationsReturn Policy
Please visit via PC to place order/quote

$234.29

5 years extended warranty
Make an inquiry Add to Quote
Please Select Purchase Qty X
confirm
Add to Cart
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Power
Power Connector Type
6-pin removable screw terminal
Power
Power Consumption
Max 2.5W
Power
Power Input (AC)
-
Power
Power Input (Battery)
-
Power
Power Input (DC)
12 ~ 48 VDC
Power
Power Input (PoE)
-
Power
Redundant Dual Inputs
Yes
Protection
Overload Current
Present
Protection
Reverse Polarity
Present
Environment
Operating Temperature
-40 ~ 75°C (-40 ~ 167°F)
Environment
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Environment
Temperature (Max. Operating)
75°C (167°F)
Environment
Temperature (Min. Operating)
-40°C (-40°F)
Mechanism
Dimensions (W x H x D)
30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.)
Mechanism
Enclosure (Plastic)
-
Mechanism
IP Rating
IP30
Mechanism
Mounting (DIN-rail)
Yes
Mechanism
Mounting (Panel)
-
Mechanism
Mounting (Pole Mount)
-
Mechanism
Mounting (Rack Mount)
-
Mechanism
Mounting (Stack)
-
Mechanism
Mounting (Wall)
Yes
Ethernet Communication
Fiber Port Connector Type
-
Ethernet Communication
Fiber Port Interface
-
Ethernet Communication
Fiber Port Number
-
Ethernet Communication
Fiber Transmission Distance
-
Ethernet Communication
Fiber Transmission Speed
-
Ethernet Communication
RJ-45 Port Connector Type
RJ-45
Ethernet Communication
RJ-45 Port Number
5
Ethernet Communication
RJ-45 Transmission Distance
100 m
Ethernet Communication
RJ-45 Transmission Speed
10/100/1000 Mbps
Certification
EMI
CE, FCC Class A
Certification
EMS
EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Certification
Safety
UL 60950-1
Warranty
Warranty Period
5 years
PoE Information
PoE Budget
-
PoE Information
PoE Output
-
PoE Information
PoE Port Number
-
PoE Information
Support PoE
No
Recommended Peripherals

Accessory Products

Part No. Description Unit Price Qty
96PSD-A10W24-MM A/D 100-240V10W 24V MDR DIN RAIL $15.00
Part No. Qty
96PSD-A10W24-MM
A/D 100-240V10W 24V MDR DIN RAIL
Unit Price: $15.00
Add to Quote Add to Cart
