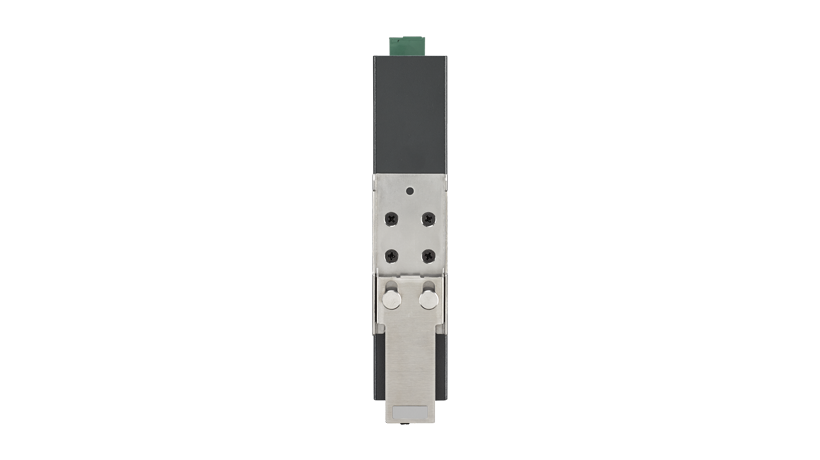

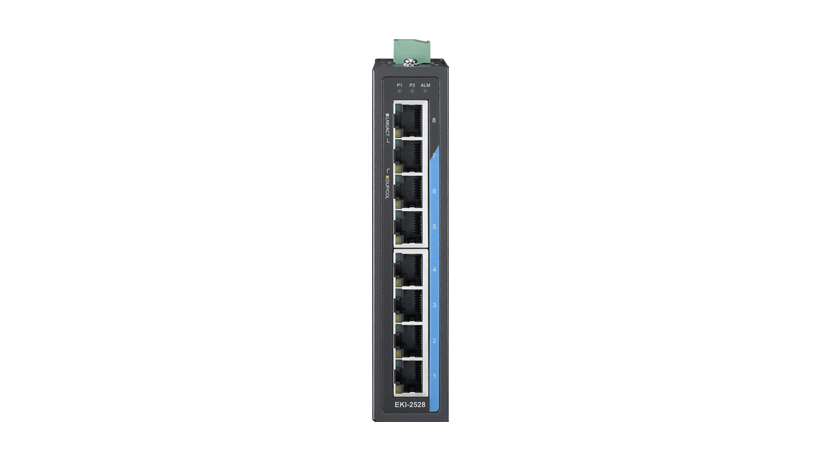

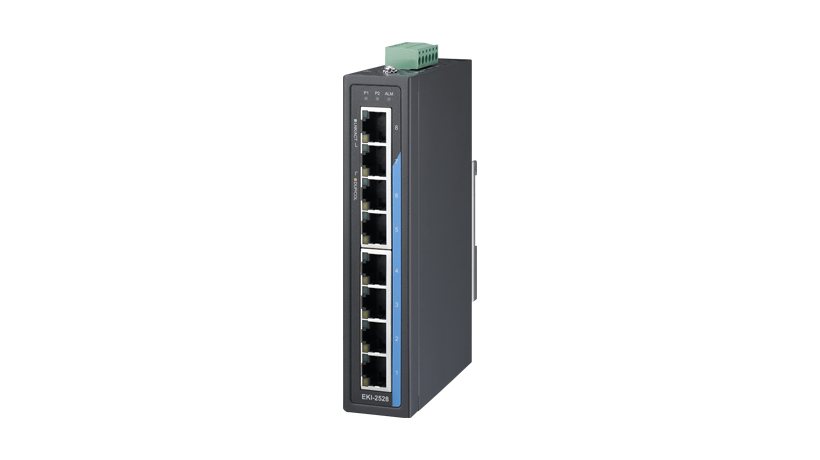

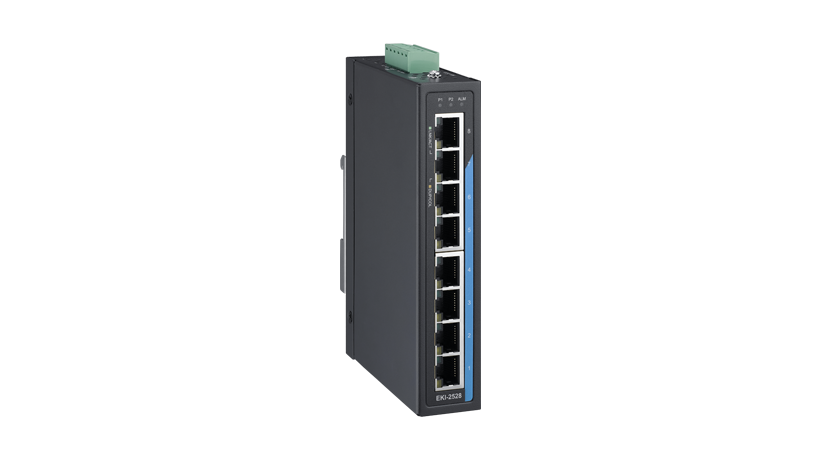

EKI-2528-BE 8-port 10/100Mbps Unmanaged Ethernet switch

  1. Provides 5/8 Fast Ethernet ports with Auto MDI/MDI-X
  2. Supports 10/100Mbps Auto Negotiation
  3. Provides broadcast storm protection
  4. Supports 4,000 VDC Ethernet ESD protection
  5. Provides surge (EFT) protection 3,000 VDC for power line
  6. Provides compact size with DIN-rail/Wallmount, and IP30 metal mechanism
  7. Supports redundant 12 ~ 48 VDC power input and P-Fail relay
  8. Supports operating temperatures from -10 ~ 60� C
Certifications
RoHS UL-Listed CE 5年保固(90X60) C1D2
Please visit via PC to place order/quote

$156.56

Make an inquiry Add to Quote Add to Cart
Specifications
Category
Attribute
Value
General
Ethernet Port Count
8
General
Mounting
DIN, Panel
General
Power
12-48VDC
General
Technology
Ethernet
General
Temperature
-10 to 60C
General
Unmanaged
Yes
Power
Power Connector Type
6-pin removable screw terminal
Power
Power Consumption
4.71W
Power
Power Input (AC)
-
Power
Power Input (Battery)
-
Power
Power Input (DC)
12 ~ 48 VDC
Power
Power Input (PoE)
-
Power
Redundant Dual Inputs
Yes
Protection
Overload Current
Present
Protection
Reverse Polarity
Present
Environment
Temperature (Max. Operating)
60°C (140°F)
Environment
Temperature (Min. Operating)
-10°C (14°F)
Environment
Temperature (Operating Range)
-10 ~ 60°C (14 ~ 140°F)
Environment
Temperature (Storage Range)
-40 ~ 85°C (-40 ~ 185°F) x
Mechanism
Dimensions (W x H x D)
30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.)
Mechanism
Enclosure (Metal)
Mechanism
Enclosure (Plastic)
-
Mechanism
IP Rating
IP30
Mechanism
Mounting (DIN-rail)
Yes
Mechanism
Mounting (Panel)
-
Mechanism
Mounting (Pole Mount)
-
Mechanism
Mounting (Rack Mount)
-
Mechanism
Mounting (Stack)
-
Mechanism
Mounting (Wall)
Yes
Ethernet Communication
Fiber Port Connector Type
-
Ethernet Communication
Fiber Port Interface x
-
Ethernet Communication
Fiber Port Number
-
Ethernet Communication
Fiber Transmission Distance
-
Ethernet Communication
Fiber Transmission Speed
-
Ethernet Communication
RJ-45 Port Connector Type !
RJ-45
Ethernet Communication
RJ-45 Port Number
8
Ethernet Communication
RJ-45 Transmission Distance
100 m
Ethernet Communication
RJ-45 Transmission Speed
10/100 Mbps
Certification
EMI
CE, FCC Class A x
Certification
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
Certification
Safety
UL 60950-1 x
* Port Configuration
Description
8 x 10/100Base-T(X)
* Port Configuration
Total Port Number
8
Warranty
Warranty Period
5 years
Yes
PoE Information
PoE Budget
-
PoE Information
PoE Output
-
PoE Information
PoE Port Number
-
PoE Information
Support PoE
No
