Home I/O Devices & Communication Industrial Communication Ethernet Switches Unmanaged Switches

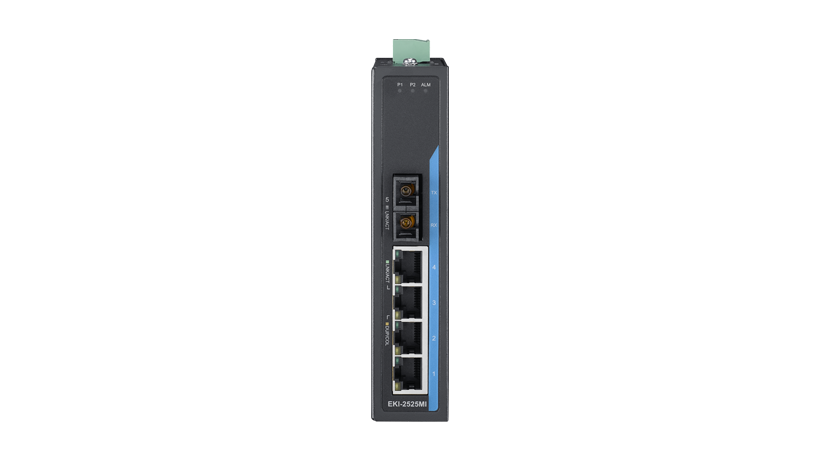

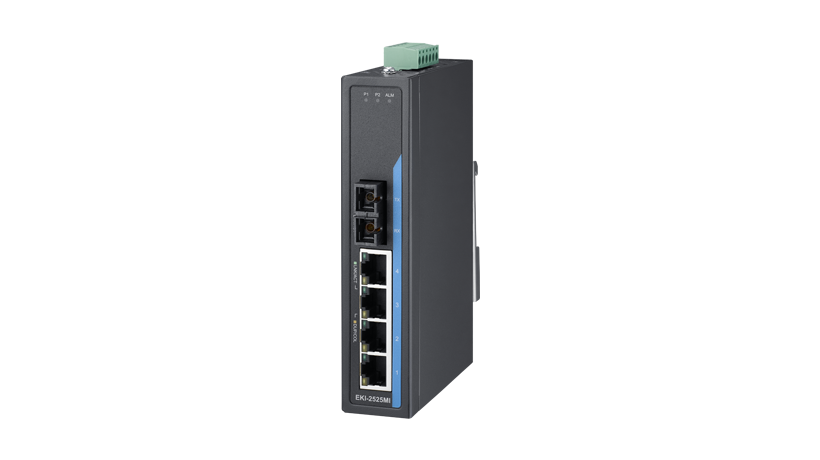

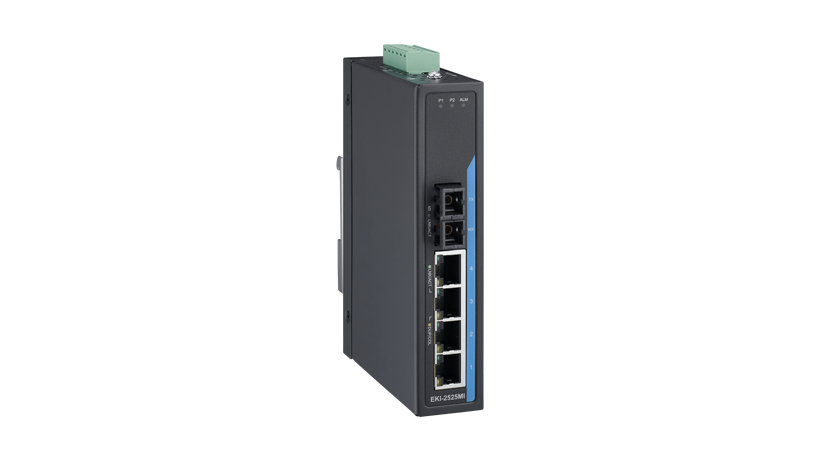

EKI-2525MI-BE 4 + 1FX SC Multi-Mode unmanaged Ethernet switch

4 + 1FX SC Multi-Mode unmanaged Ethernet switch
  • 4 + 1FX SC Multi-Mode unmanaged Ethernet switch
  • 4 + 1FX SC Multi-Mode unmanaged Ethernet switch

  1. Provides 4 x 10/100 Mbps Ethernet ports with RJ45 connector
  2. Provides 1 x 100 Mbps Multi-mode SC type fiber optic port
  3. Supports full/half duplex flow control
  4. Supports MDI/MDI-X auto crossover
  5. Provides broadcast storm protection
  6. Provides redundant 12 ~ 48 VDC power input

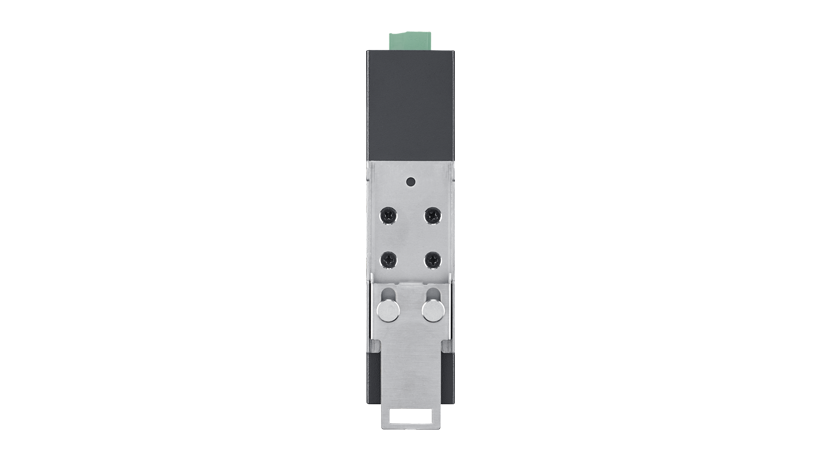

  7. Provides flexible mounting: DIN-rail and wall mount
Certifications
CE CE CE CE
Resources
Resources Download
DatasheetDownloadManualExtended SpecificationsReturn Policy
Please visit via PC to place order/quote

$243.34

5 years extended warranty
Make an inquiry Add to Quote
Please Select Purchase Qty X
confirm
Add to Cart
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Power
Power Consumption
5W
Power
Power Input (DC)
12 ~ 48 VDC
Interface
Port Number
5
Environment
Operating Temperature
-40 ~ 75°C (-40 ~ 167°F)
Environment
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Mechanism
Dimensions (W x H x D)
30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.)
Mechanism
Mounting
DIN-rail, Wall mount
Ethernet Communication
Fiber Port Interface
Multi-Mode
Ethernet Communication
Fiber Port Number
1
Ethernet Communication
Fiber Transmission Distance
2 km
Ethernet Communication
RJ-45 Port Number
4
LAN Interface
Ethernet
10/100 Mbps
Certification
EMI
FCC Part 15 Subpart B Class A, EN 55022 Class A
Certification
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
Certification
Safety
UL 60950-1
