Home Boards & Cards Industrial Motherboards Mini-ITX Motherboards By Processor Intel® Core™ Processor

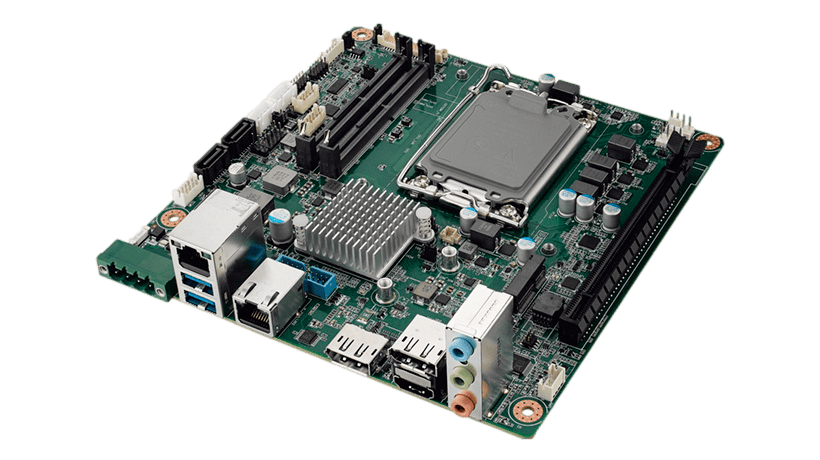

AIMB-279QF-LDA1 MiniITX RPL-S LGA1700/DCIN/Q670E/LVDS/PCIex16

MiniITX RPL-S LGA1700/DCIN/Q670E/LVDS/PCIex16

  1. 12/13/14th Gen Intel® Core™ Desktop Processors (LGA1700), Up to 24Core. Support Q670E/H610E chipset
  2. Dual channel DDR4 3200MHz, max. 64GB with two SODIMMs
  3. Super Speed I/O: PCIe x16 Gen4 (16GT/s), USB3.2 Gen2 (10Gbps), 2.5GbE
  4. Quad independent 4K displays with 2 DP1.4, 1 HDMI, and 1 LVDS
  5. Rich expansion: M.2 M key for NVMe SSD, M.2 E key for wireless, 2 SATA
  6. 12-24V DCin Power Input
  7. Windows 10 LTSC & Ubuntu 22.04 LTS; SUSI API and WISE-DeviceOn
Certifications
CE CE
Resources
Resources Download
DatasheetDownloadDriverManualExtended SpecificationsReturn Policy
Please visit via PC to place order/quote

$342.00

2 years extended warranty
Make an inquiry Add to Quote
Please Select Purchase Qty X
confirm
Add to Cart
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Display
DDI (HDMI/DVI/DisplayPort)
HDMI: 4096x2160@60Hz / DP++: 4096x2304@60Hz
Display
eDP*
Max resolution up to 4096 x 2304 at 60 Hz
Display
Graphic Engine
Intel® Iris Xe
Display
LVDS
2 channels 18/24-bit, up to 1920 x 1200 @ 60Hz
Display
Multiple Display
Up to 4 independent displays
I/O
COM Port
2xRS-232/422/485
I/O
GPIO
6-bit GPIO
I/O
TPM
TPM 2.0
I/O
USB3.0
8
Memory
Max. Capacity
64GB (up to 32GB per SO-DIMM)
Memory
Socket
2 x 262 pin DDR5 SO-DIMM
Memory
Technology
DDR5 up to 4800MHz
Processor
BIOS
AMI EFI 256 Mbit
Processor
Chipset
Q670E
Processor
Core Number
Up to 24C
Processor
CPU
Intel® 12/13/14th Gen Core™ I Processor
Processor
CPU TDP
35W / 46W / 60W / 65W
Processor
Frequency
P-core: 1.1 ~ 5.0GHz, E-core: 0.9 ~ 3.8GHz
Processor
L3 Cache
Up to 30MB
Storage
SATA
3 x SATAIII
Operating System
Linux
Yes
Operating System
Microsoft Windows
Windows 10 (64-bit)
Operating System
Ubuntu
V
Environment
Non-Operational Temperature
-40~ 85° C
Environment
Operational Temperature
0 ~ 60° C (32 ~ 140° F)
Environment
Vibration Resistance
3.5 Grms (non OP)
Power
Connector
ATX 20-pin+8-pin ATX12V
Power
Power Type
ATX
Ethernet
Connector
RJ45 x 2
Ethernet
Controller
LAN1: Intel I219LM; LAN2: Intel I226
Ethernet
Speed
Up to 2.5GbE
Audio
Audio Interface
Line-in/Line-out/MIC
Audio
CODEC
Realtek ALC888S
Audio
Connector
3 (Line-in, Line out, Mic-in)
Watchdog Timer
WatchDog Timer
Yes
Certification
EMC
CE/FCC Class B
Expansion
PCI Express x 16
1
Expansion
Slot Type
1 x M.2 M key (Type: 2280), 1 x M.2 E key,(Type: 2230)
Expansion
Slots
1 x M.2 M key + 1 x M.2 E key, 1 x PCIe x16
Physical
Construction
with CPU cooler design
Physical
Dimension (mm)
170x 170 mm (without heatsink)
Physical
Weight
1.04 kg (1.72 lb), weight of total package
