Rugged tablet PCs are revolutionizing traditional workflows. Employees can access production data and defined waypoints as they roam facilities or off-site locations, un-tethered from workstations. Built-in Wi-Fi, 4G LTE and GPS enable connectivity to SCADA plant equipment and cloud resources. Customize your rugged tablet with a variety peripheral choices.



Application Video

Mobile Tablet PCs for

• Machine/Facility Control
• Maintenance and Repair
• Quality & Inventory Manufacturing

View Now
Mobile Tablet PCs for various applications


Products

PWS-870PWS-870 accessories
Intel IoT Solution Alliance
Microsoft Logo

Windows 8 Embedded included. (Windows 10 by project)

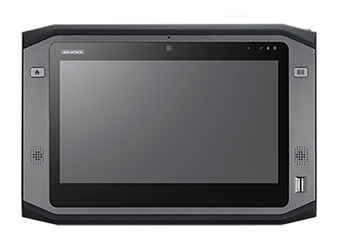

The 10.1" Intel Core Rugged Multi-Touch Sunlight Readable Tablet
System Intel® Core i-Series processors
Screen 10.1" HD high-brightness, multi-touch, Gorilla Glass panel with digitizer
Reliability MIL-STD-810G and IP65 certified, can withstand drops of up to 4ft
Temperature Wide Temp Design (-20 ~ 50° C)
Battery Hot-swappable up to 11 hours
Connectivity Built-in 4G LTE, WLAN (802.11 a/b/g/n/ac), BT4.0, and GPS
Accessories Vehicle docking station, desk docking station, extension module support
See Full Selection


Rugged Tablet Selections



See Full selection
  PWS-870-9S51 PWS-870-9S53 PWS-870-9S514
Model PWS-870-9S51 PWS-870-9S53 PWS-870-9S514
System

     CPU

Dual Core Intel® i3-4010U 1.7 GHz Processor Dual Core Intel® i5-4300U 1.9 GHz Processor Dual Core Intel® i7-4650U 1.7 GHz Processor

    Turbo Boost

- -

Turbo Boost to 3.3 GHz

Memory SODIMM DDR3L 4GB/8GB SODIMM DDR3L 4GB/8GB SODIMM DDR3L 4GB/8GB
Storage Supports mSATA SSD
32 GB ~ 256 GB
Supports mSATA SSD
32 GB ~ 256 GB
Supports mSATA SSD
32 GB ~ 256 GB
Display
   Size/Type 10.1" HD (1366 x 768)
Low reflection LCD
10.1" HD (1366 x 768)
Low reflection LCD
10.1" HD (1366 x 768)
Low reflection LCD
   Brightness
    (cd/m2)
400 nits LED backlight
950 nits LED backlight (by project)
400 nits LED backlight
950 nits LED backlight (by project)
400 nits LED backlight
950 nits LED backlight (by project)
Touch Panel
10-point capacitive touch 10-point capacitive touch 10-point capacitive touch
I/O Ports 1 x SD card slot,
1 x Audio combo jack,
1 x SIM card slot,
1 x DC-in
1 x SD card slot,
1 x Audio combo jack,
1 x SIM card slot,
1 x DC-in
1 x SD card slot,
1 x Audio combo jack,
1 x SIM card slot,
1 x DC-in
Wireless Communication WiFi802.11 a/g/b/n/
acWLAN, BT 4.0 class
2 (Combo module) (Optional)
GPS (Optional)
LTE/HSPA+/CDMA (Optional)
WiFi802.11 a/g/b/n/
acWLAN, BT 4.0 class
2 (Combo module) (Optional)
GPS (Optional)
LTE/HSPA+/CDMA (Optional)2
WiFi802.11 a/g/b/n/
acWLAN, BT 4.0 class
2 (Combo module) (Optional)
GPS (Optional)
LTE/HSPA+/CDMA (Optional)
Data Collection Modules 2.0M pixel CMOS front camera;
5.0M pixel CMOS rear camera;
1D/2D barcode; NFC RFID
2.0M pixel CMOS front camera;
5.0M pixel CMOS rear camera;
1D/2D barcode; NFC RFID
2.0M pixel CMOS front camera;
5.0M pixel CMOS rear camera;
1D/2D barcode; NFC RFID
Security Fingerprint scanner; TPM1.2;
Kensington cable lock slot
Fingerprint scanner; TPM1.2;
Kensington cable lock slot
Fingerprint scanner; TPM1.2;
Kensington cable lock slot
Dimensions & Weight
305 x 207 x 25~27 mm, 1.4 kg 305 x 207 x 25~27 mm, 1.4 kg 305 x 207 x 25~27 mm, 1.4 kg
Power

     Battery

Main Battery: 4S1P 14.4V
2730mAH Hot-Swap external battery:
4S2P 14.8V 4080mAh
Main Battery: 4S1P 14.4V
2730mAH Hot-Swap external battery:
4S2P 14.8V 4080mAh
Main Battery: 4S1P 14.4V
2730mAH Hot-Swap external battery:
4S2P 14.8V 4080mAh

     DC-input

19V ± 5% 19V ± 5% 19V ± 5%
Environment Windows 10 IoT, WES7/8, Linux Ubuntu 14.04, Android 4.4 Windows 10 IoT, WES7/8, Linux Ubuntu 14.04, Android 4.4 Windows 10 IoT, WES7/8, Linux Ubuntu 14.04, Android 4.4

     Operating
     Temperature

-20° C ~ 50° C -20° C ~ 50° C -20° C ~ 50° C

     IP Rating

IP65 IP65 IP65

     Drop

4 ft. drop 4 ft. drop 4 ft. drop

     Vibration

MIL-STD-810G MIL-STD-810G MIL-STD-810G
OS Windows Embedded 8.1
Industry Pro/8.0
Standard/Windows 7
Professional/Windows 10
Windows Embedded 8.1
Industry Pro/8.0
Standard/Windows 7
Professional/Windows 10
Windows Embedded 8.1
Industry Pro/8.0
Standard/Windows 7
Professional/Windows 10
Certifications
CE, FCC, CCC, UL, CB, PTCRB CE, FCC, CCC, UL, CB, PTCRB CE, FCC, CCC, UL, CB, PTCRB
Accessories AC adaptor (19V, 65W), Capacitive pen, Vehicle docking station, Desk docking station, Universal cover, External battery, Multiple battery charger, Extension module, Wall Mount AC adaptor (19V, 65W), Capacitive pen, Vehicle docking station, Desk docking station, Universal cover, External battery, Multiple battery charger, Extension module, Wall Mount AC adaptor (19V, 65W), Capacitive pen, Vehicle docking station, Desk docking station, Universal cover, External battery, Multiple battery charger, Extension module, Wall Mount

From $2,605.00
From $3,005.00
From $3,300.00
  Datasheet Datasheet Datasheet
  Learn More Learn More Learn More


Accessories

Optional Accessories and Extension Modules for the PWS-870

Universal Cover

Universal Cover

Additional I/O

Additional I/O

Battery Charger Station

Battery Charger Statio

Smart Card Reader

Smart Card Reader

UHF RFID Reader

UHF RFID Reader

External Battery

External Battery
