    Key Features

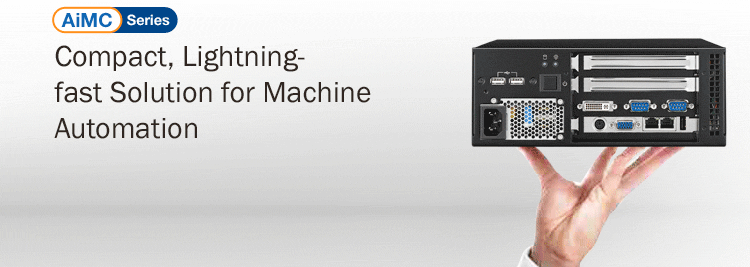

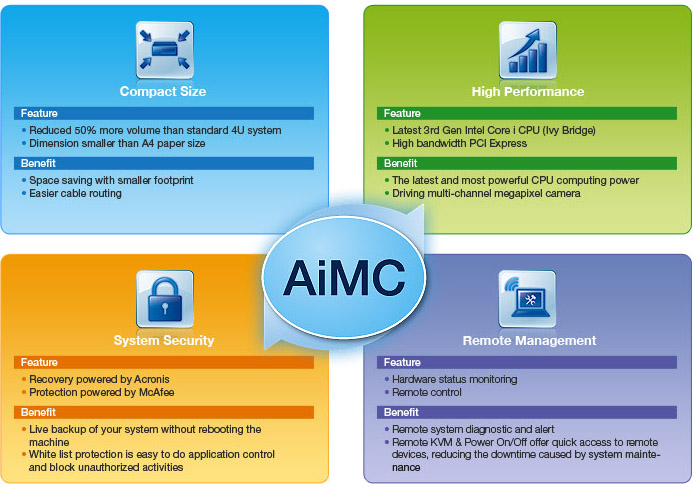

    AiMC series have been released for machine automation applications. Each self-contained micro computer features compact size, high performance, system security and remote management. With the latest 3rd generation Intel® Core™ processors, they deliver more computing and graphics performance. Each micro computer comes with Advantech’s SUSIAccess software for intelligent monitoring and control. Each intelligent micro computer offers integrators a no-nonsense turnkey solution that has been fully verified and certified.

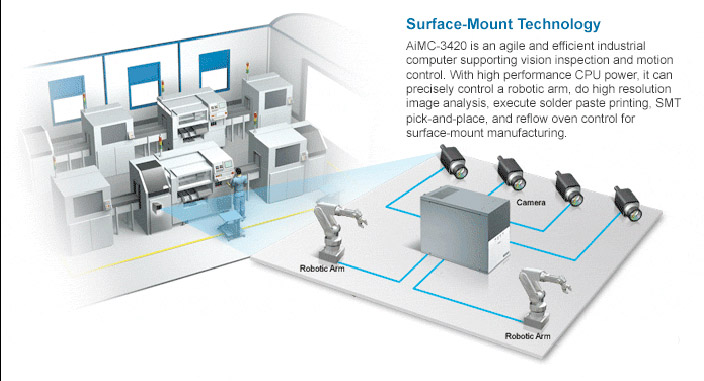

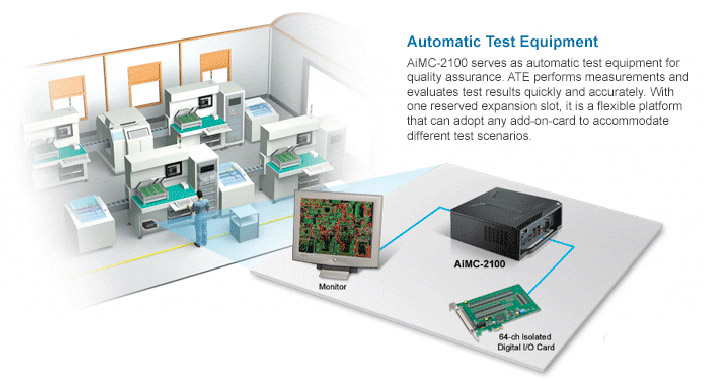

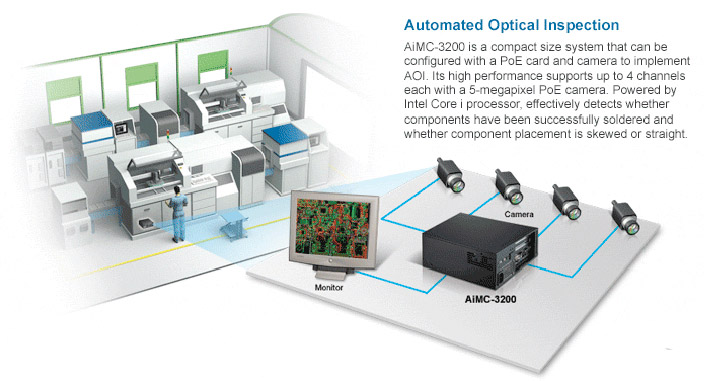

    Applications in PCBA Manufacturing

    Specification

      AIMC-3200-00A1E AIMC-3420-00A1E AIMC-2100-00A1E
    CPU PGA 988 i7/i5/i3 mobile CPU PGA 988 i7/i5/i3 mobile CPU LGA 1155 i7/i5/i3
    Memory DDR3 Max 8GB DDR3 Max 8GB DDR3 Max 8GB
    PCH H61 H61 QM77
    Storage SATA Bays: One 3.5” HDD SATA Bays: Two 2.5” HDD SATA Bays: Two 2.5” HDD
    Expansion Slot One PCI-E x16
    One PCI-E x4    		 One PCI-E x16
    Two PCI-E x1    		 One PCI-E x16
    I/O
    Interface
    Dimension
    Power Supply 250Watt 80Plus 300Watt 80Plus 250Watt
