Jetson Orin Nano
SUPER
Now Available on the EPC-R7300

Optimized for Small-Scale Generative AI

Jetson Orin Nano SUPER Now Available on Advantech EPC-R7300

A “Super” Performance Boost for Cutting- Edge Generative AI Models

NVIDIA's latest software update enhances Jetson Orin Nano's AI performance from 40 to 67 AI TOPs and memory bandwidth from 68 to 102 GB/s, allowing developers and enthusiasts to run a wide range of generative AI models more efficiently.

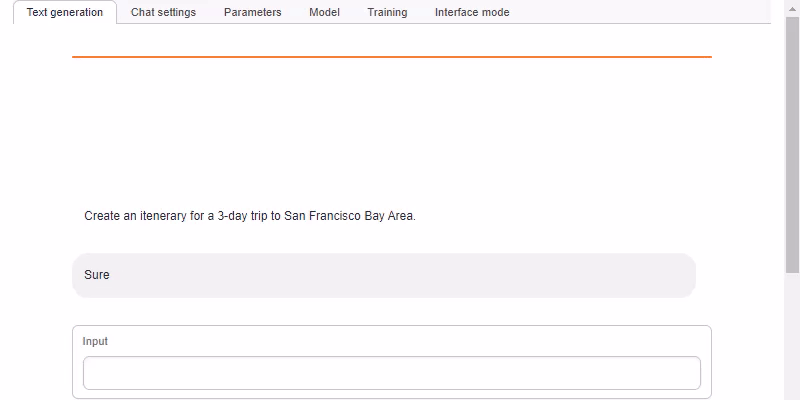

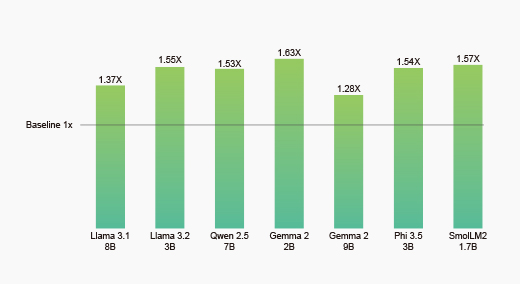

Large Language Models

Interact with a local AI assistant by running a LLM on Jetson Orin Nano Super.

Interact with a local AI assistant by running a LLM on Jetson Orin Nano Super.
Interact with a local AI assistant by running a LLM on Jetson Orin Nano Super.

Source: NVIDIA Jetson AI Lab

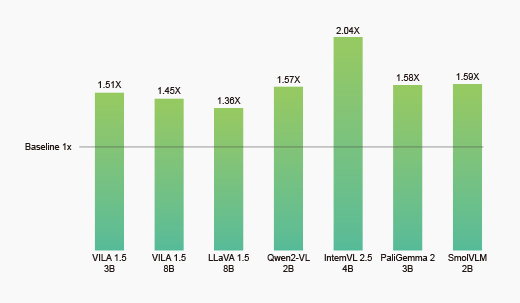

Vision Language Models

A vision/language model can run locally on the Jetson Orin Nano Super, allowing it to answer questions based on image prompts and queries.

A vision/language model can run locally on the Jetson Orin Nano Super, allowing it to answer questions based on image prompts and queries.
A vision/language model can run locally on the Jetson Orin Nano Super, allowing it to answer questions based on image prompts and queries.

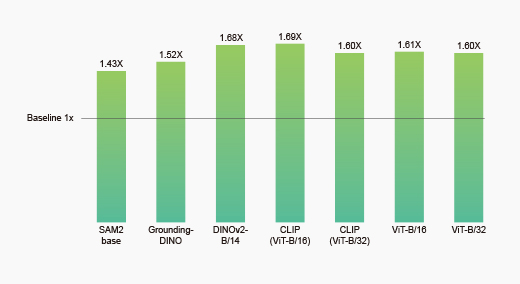

Vision Transformers

Real-Time Vision Transformers (ViT) and computer vision models can run on board your Jetson Orin Nano Super.

Real-Time Vision Transformers (ViT) and computer vision models can run on board your Jetson Orin Nano Super.
Real-Time Vision Transformers (ViT) and computer vision models can run on board your Jetson Orin Nano Super.
A Highly Reliable Single AI Kit for NVIDIA Jetson Orin Nano Super

Advantech's EPC-R7300 industrial-grade AI Box PC is engineered to meet the diverse computing needs of developers with its versatile I/O features, including:

  • 3 x M.2 slots for wireless modules and storage expansion
  • Support for 4K resolution displays via its HDMI 2.0 port
  • Reliable high-speed data connectivity via 2 x GbE LAN ports
  • Both USB and IP camera interfaces for vision-based applications

Wireless Module

Wi-Fi 6, B/T, 4G & 5G

Camera Integration

USB, MIPI

Peripheral Integration

CANbus, DIO, com

Storage Module

M.2 NVME

Advantech's EPC-R7300 industrial-grade AI Box PC is engineered to meet the diverse computing needs of developers with its versatile I/O features, including:

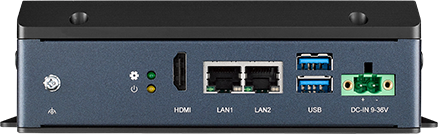

Diverse Rear I/O Options Accommodate a Myriad of Application Requirements

Designed to fulfill different application requirements in one kit, the EPC-R7300 provides up to 5 rear I/O configurations to enable system capacity expansion.

The I/O peripheral drivers are all integrated into the board support package (BSP) with NVIDIA JetPack 6.2, making the EPC-R7300 capable of delivering robust functionality right out of the box.

Designed to fulfill different application requirements in one kit, the EPC-R7300 provides up to 5 rear I/O configurations to enable system capacity expansion.
A

1 x RS-485, 1 x RS-232, 1 x 4 DIs & 4 DOs

Designed to fulfill different application requirements in one kit, the EPC-R7300 provides up to 5 rear I/O configurations to enable system capacity expansion.
B

1 x GbE, 2 x USB 2.0, 2 x RS-232

Designed to fulfill different application requirements in one kit, the EPC-R7300 provides up to 5 rear I/O configurations to enable system capacity expansion.
C

1 x CAN bus, 2 x RS-232

Designed to fulfill different application requirements in one kit, the EPC-R7300 provides up to 5 rear I/O configurations to enable system capacity expansion.
D

4 x GbE

E

4 x GbE (3 x LAN, 1 x WAN)

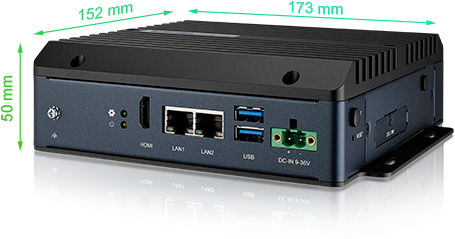

Compact and Rugged Design for Industrial Applications
The EPC-R7300’s ultra-compact (152 × 173 × 50 mm) and durable design for harsh industrial environments facilitates seamless AI deployment.

The EPC-R7300’s ultra-compact (152 × 173 × 50 mm) and durable design for harsh industrial environments facilitates seamless AI deployment.

20~60ºC

Wide Operating Temp. Range

9~36 Vdc

Wide Power Input Range

3.0 Grms

High Vibration Tolerance
