Connect Farther, Connect Faster

Extending Network Coverage with IMC-300 Series Ethernet-to-Fiber Media Converters

Advantech’s IMC-300 series

Advantech’s IMC-300 series Ethernet-to-fiber media converters provide network operators with reliable, miniature solutions for connecting and extending devices into existent networks. They support 10/100Mbps to 10Gbps transmission speeds and can reach distances up to 80km using various model selections.

Feature Highlights

Extend Network Coverage up to 80 km

Extend Network Coverage up to 80 km

  • No need to replace any existent devices
  • Extend transmission distances up to 80km
  • Free from electronic interference

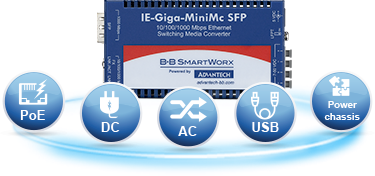

Variety of Power Sources

Variety of Power Sources

  • Universal AC power adapter
  • DC power input via terminal block
  • USB power cable
  • PoE-PD input
  • Centralized powered chassis for central AC power management

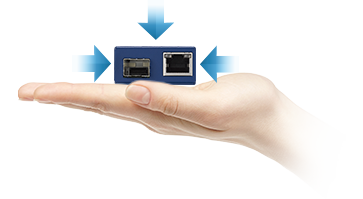

Miniature and Reliable Ethernet-to-Fiber Solutions

Miniature and Reliable Ethernet-to-Fiber Solutions

  • Ultra-small industrial media converters measuring only 3.5 x 2 inches
  • Easy installation in every corner
  • Plug–and-play feature that increases space and power usage efficiency
Smart Wiring Options for Various Application Needs

Smart Wiring Options for Various Application Needs

Fiber-to-copper deployment

Good for point-to-point applications and applications where fiber connectivity is already in place

Copper-to-fiber-to-copper deployment

Good for control centers and applications with no fiber connectivity

IMC-300 Selection Guide

  IMC-350I IMC-370I IMC-390 IMC-310I
Model IMC-350I IMC-370I IMC-390 IMC-310I
Description Industrial Ethernet-to-fiber media converters Industrial Gigabit Ethlernet-to-fiber media converters Industrial PoE Gigabit Ethernet-to-fiber media converters Industrial Multi-Gigabit Ethernet-to-fiber media converters
Speed 10/100Mbps v - - -
10/100/ 1000Mbps - v v -
100/1000/ 10GMbps - - - v
PoE PD v - - -
PSE - - v -
Power source AC v v v v
DC v v v v
USB Cable v v - -
Centralized powered
IMC-318I Chassis		 v v - -
Dimensions 21.1 x 45.7 x 85.1 mm 21.1 x 45.7 x 85.1 mm 20.32 x 92.58 x 99 mm 109.2 x 22.9 x 101.6 mm

v : supported, - : not supported


Dimensions
Unit: mm [inch]
IMC-390
IMC-390

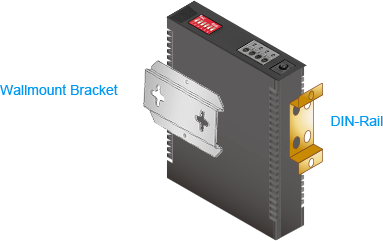

Mounting

The Advantech IMC-390 media converter series supports DIN-rail and wall mounting method to fit the varying needs of different projects in the field.

IMC-390

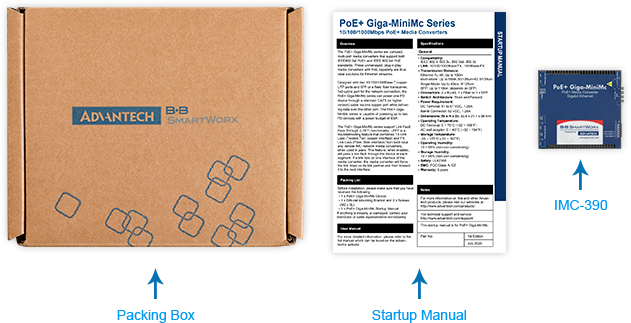

Inside the Box
IMC-390
