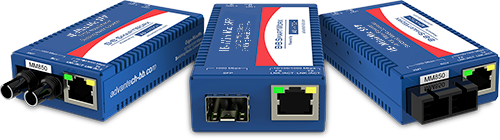

1. Extend Your Network Coverage with the IMC-350 and IMC-370 Series of Fiber Optics Media Converters
Advantech’s IMC-350 and IMC-370 series fiber media converters provide network operators with miniature and reliable solutions for connecting and extending devices into existent networks. They support 10/100Mbps to 1Gbps transmission speeds and can reach distances up to 80km over 50+ various models selection.
Feature Highlights

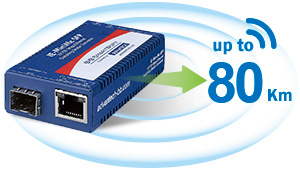

1. Extend Network Coverage up to 80 km
  - No need to replace any existent devices
  - Extend the transmission distance up to 80km
  - Free from electronic interference

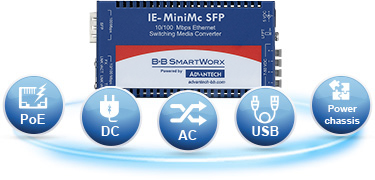

2. Variety of Power Sources
  - Universal AC power adapter
  - DC power input via terminal block
  - USB power cable
  - PoE-PD input
  - Centralized powered chassis for central AC power management

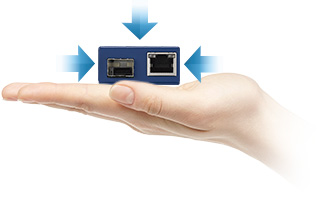

3. Miniature and Reliable Ethernet-to-Fiber Solutions
  - Ultra-small industrial media converters measuring only 3.5 x 2 inches
  - Easy installation in every corner
  - Plug–and-play feature that increases space and power usage efficiency

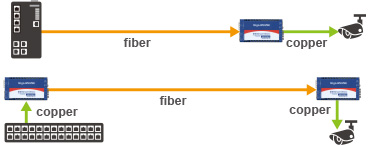

4. Smart Wiring Options for Various Application Needs

  Fiber-to-copper deployment
  - Good for point-to-point applications
  - Good for applications where fiber connectivity is already there
  Copper-to-fiber-to-copper deployment
  - Good for control center
  - Good for applications with no fiber connectivity
Product Specifications
1. Dimensions
2. Unit: mm

  IMC-350 and IMC-370 Series
1. DIN-Rail

  Mounting Method

  The Advantech IMC-350 and IMC-370 Series media converter series supports Din-rail mounting method to fit the varying needs of different projects in the field.
1. Packing List
2. IMC-350 and IMC-370 Series
