Advantech MXM GPU Cards
Accelerating Edge AI and Image Processing
Advantech MXM Embedded GPUs with NVIDIA RTX Technology and Ampere /Turing Architectures
As an NVIDIA Elite Partner, Advantech offers MXM GPU cards powered by NVIDIA’s embedded GPUs, perfect for image processing and Edge AI acceleration in manufacturing, transportation, and medical industries. Built on NVIDIA's latest architectures, Advantech MXM GPUs deliver state-of-the-art technologies giving high-performing computing and responsive capabilities for systems, as well as reducing latency, which is ideal for deploying in applications such as auto-optical inspection, driver-assistance, and surgical systems.
NVIDIA Certified Embedded MXM GPU Cards with High Performance
Designed and manufactured by Advantech - NVIDIA’s Visualization Elite partner.
MXM GPU cards are built on NVIDIA’s latest Ampere and Turing architectures.
2nd gen. RT core and 3rd gen. Tensor core accelerate ray tracing and AI inference.
Supports GDDR6 graphics memory for boosting data transfer rates and performance.
Supports 70+ professional software certified by NVIDIA.
Easily Integrated into diverse systems with MXM GPU cards
High-performance, compact design, and low power consumption with Advantech strict quality control.
Fits in both fan and fanless systems with customized thermal solutions for wider operating temperatures (0°C to 55 °C) aimed at various applications and scenarios.
Ensures customization and design flexibility for realizing Edge AI inferencing with high computing performance within system constraints.
Industrial Design with Longevity Supports
MXM GPU cards feature over 5-year longevity extended product life support (better than 1-year consumer-level GPU cards.)
Advantech provides strict revision management and engineering change control to reduce re-validation and compatibility issues.
Advantech offers global and local services with 24/7 hotline AE, and global RMA systems for real-time expert advisors.

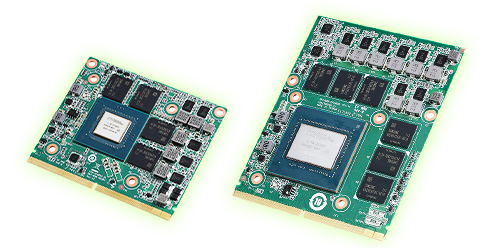

The Latest NVIDIA Embedded MXM GPU Cards
NEW

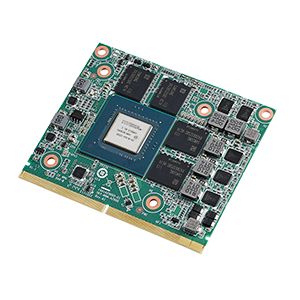

SKY-MXM-A2000-4SDA
MXM 3.1 Type A NVIDIA® Quadro® Embedded
MXM 3.1 Type A form factor
2560 CUDA cores
20 RT Cores
80 Tensor Cores
8.25 TFLOPS
4x DP 1.4a
4GB GDDR6 memory
192GB/s maximum memory bandwidth
Bundle sale with Advantech IPC
NEW
SKY-MXM-T1000-4SDB
MXM 3.1 Type A NVIDIA® Quadro® Embedded
MXM 3.1 Type A form factor
896 CUDA cores
2.7 TFLOPS
4x DP 1.4a
4GB GDDR6 memory
192GB/s maximum memory bandwidth
Bundle sale with Advantech IPC
NEW

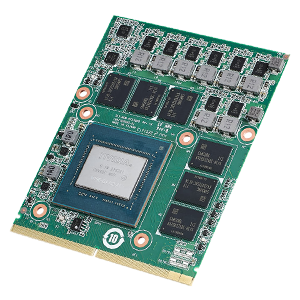

SKY-MXM-R3000-6SDA
MXM 3.1 Type B NVIDIA® Quadro® Embedded
MXM 3.1 Type B form factor
1920 CUDA cores
30 RT Cores
240 Tensor Cores
5.3 TFLOPS
4x DP 1.48a
6GB GDDR6 memory
336GB/s maximum memory bandwidth
Bundle sale with Advantech IPC
PCIe GPU and MXM GPU Comparison
Quadro MXM GPU Cards Quadro PCIe GPU Cards
Form Factor
Mobile PCI Express Module
PCI Express Graphics Cards
Size
Smaller (Type A: 82 x 70 mm)
Larger (168 x 69 mm)
Max Power
Lower
Higher
Thermal Solution
Designed with your requirements, fits fan-based and fanless
By NVIDIA, for fan-based systems
Operating Temp.
0°C to 55 °C (dependent on thermal solution)
0°C to 45 °C
Longevity
5+ years
Various between 3 and 8 years
Features & Benefits
Fits in compact/fanless IPCs for limited space applications Highly customizable with easy integration advantages
Professional GPU for assured reliability Rackmount/wallmounting flexibility Plug-and-play for easy set up
Industrial GPU Solutions Resource
Sales Kits & Success Cases
Advantech, as NVIDIA Elite Partners,
Your Best Edge AI & GPU Solution Partner
NVIDIA Professional GPUs Offerings
Advantech- the World's No.1 IPC Provider
Certified as NVIDIA Elite Partner in Visualization, Embedded Edge, and Compute categories.
Industrial GPU Solutions with a wide range of GPU cards and AI Jetson™ Platforms. Full range of edge computing systems with diverse form factors, qualified and certified by NVIDIA.
Configure-to-Order Services (CTOS) and Design-to-Order Services (DTOS) with powerful one-stop solutions.
Three Advantages of Advantech MXM GPU
VIDEO
Customization and Easy Integration
AI inspection and machine automation in smart manufacturing and warehousing.
Real time detection and surveillance for transportation management.
Medical image reconstruction and video analytics, for surgical robots and surgeons.
