Advantech ePaper Solutions Suite

Low Power/2-Way Communication/ Centralized ePaper Manager

Free Evaluation

Advantech EPD is the most cost-effective option for ePaper solutions to display current schedules outside your shared spaces with ultra-low power consumption and DeviceOn ePaper to achieve digitalized deployment in versatile applications, such as office, hospital, factory, warehouse, retail and transportation. You might be wondering what is the difference between ePaper and traditional TFT LCDs?

ePaper vs Traditional TFT LCDs
- Advantech EPD

  LED/LCD/LCM
- No power

  Image stays

  No Image
- Power consumption

  Only uses power when changing image.
  Battery can last for years.

  Significant power draw runs the battery down.
- Thermal issue

  No backlight, no heating

  Backlight cause thermal problems
- Full reflection

  Good under the sunlight

  Needs a strong backlight
- View angle

  180° viewing angle

  Limited
Adventech EPD v.s Consumer
- Scenario

  Industrial

  Consumer
- Power Capacity

  Big. (2480mAh)

  Stable power design.

  Small. (around 200~400mAh)
  Power design is not stable.
- Communication Quality

  Excellent quality for high-frequency updates in every minute and have the real time access.

  One-time weekly or monthly update, no need for real time.
- Multiple IO

  Multi-buttons and LEDs on device. EPD firmware can be adjusted and customized for different user scenarios

  No button or LED on device.
  EPD firmware cannot be adjusted or customized.
- Operation Temperature & Color

  0~50° degree in panel spec.

  0~30 degree in panel spec.
  The color might fade out after 1 year.
- Data Security and

  Data is physical store in on-site server and full control by authorized user.

  Data store in EPD manufacture cloud.
- long-term solution Roaming

  EPD can roaming in different router for diverse application scenario.

  Not support
- Server API readiness

  Flexible , Open and Completed. User can design it's own application through DeviceOn/ePaper restful API.

  Only support few API and not customized

Why Advantech EPD?

Ultra-Low Power
Efficient power-saving design
Fast Transmission
Updates10,000 ePaper devices in one hour
2-Way Communication
End devices can report data accuracy, battery levels, and abnormal status
Centralized DeviceOn/ePape
Visualized user interface and simple RESTful API for integration with existing vertical applications

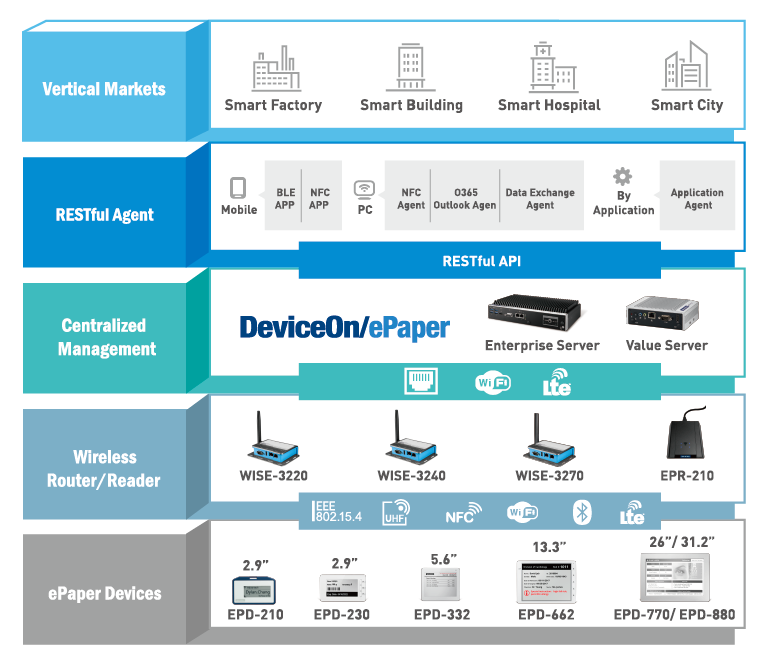

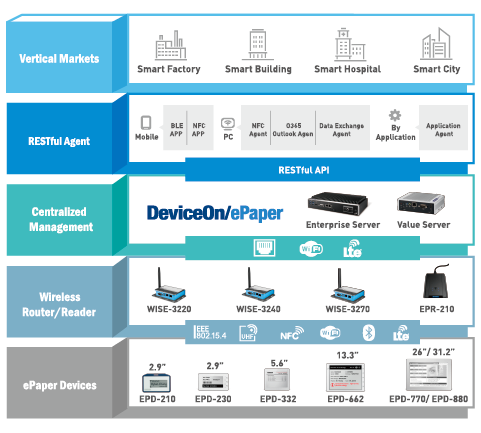

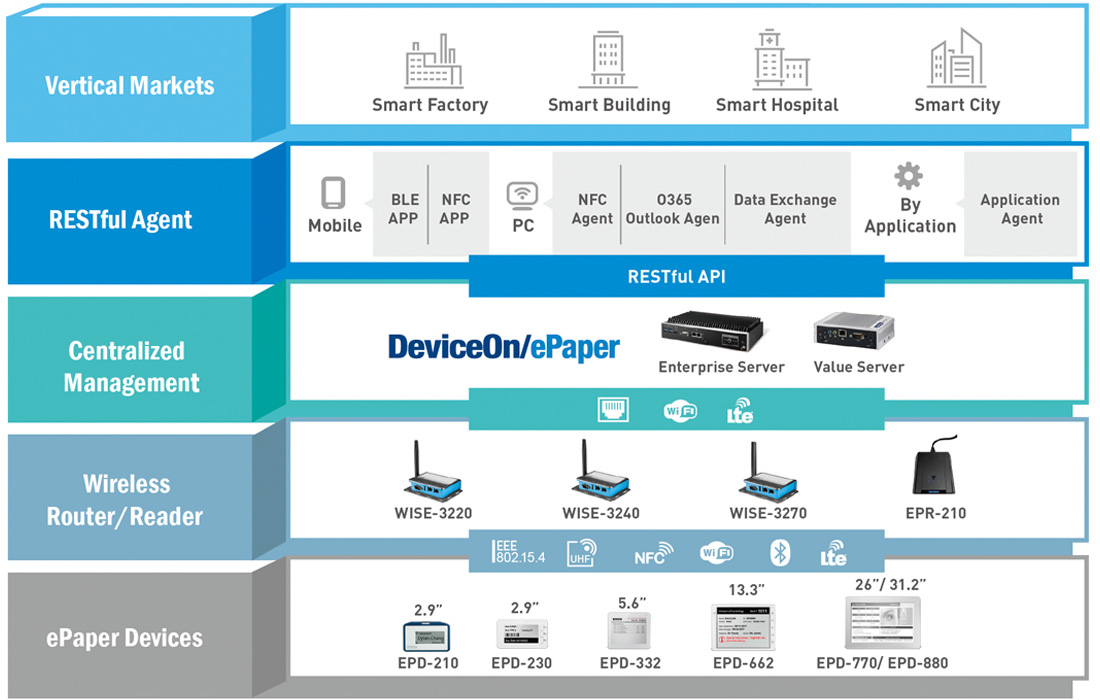

Advantech EPD Solutions

Advantech provides hardware and software integrated wireless ePaper display solutions: wireless ePaper modules, gateways, servers, and ePaper Manager CMS software to accelerate implementation in a wide range of applications.

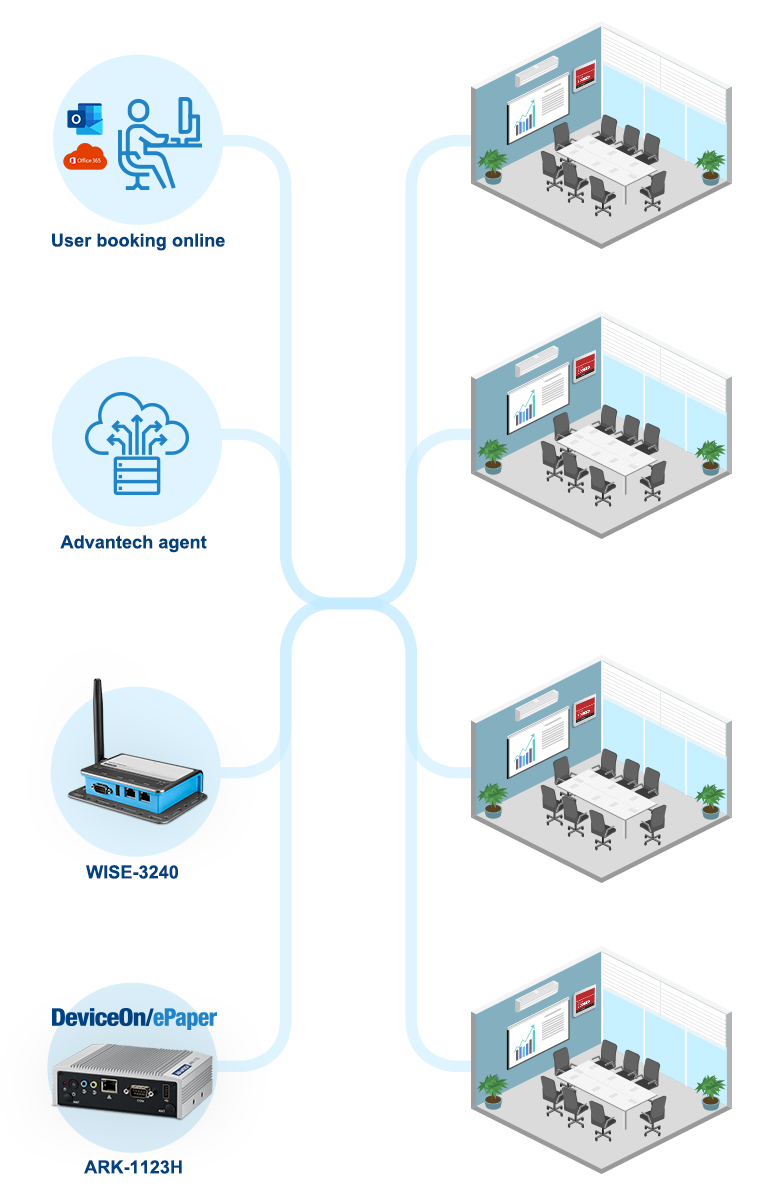

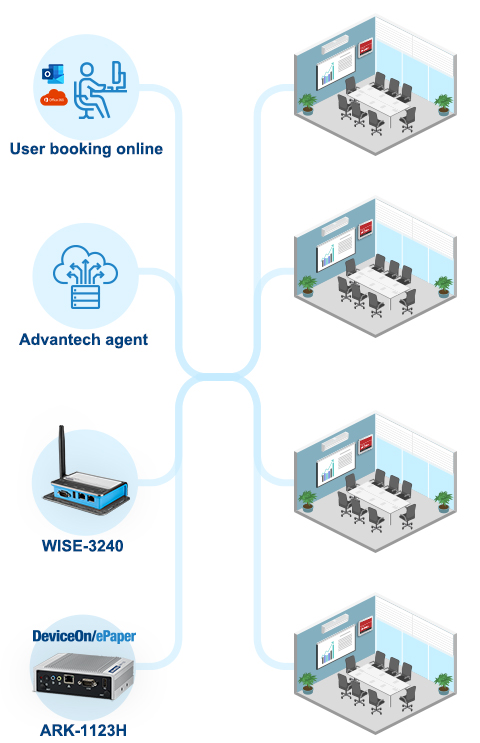

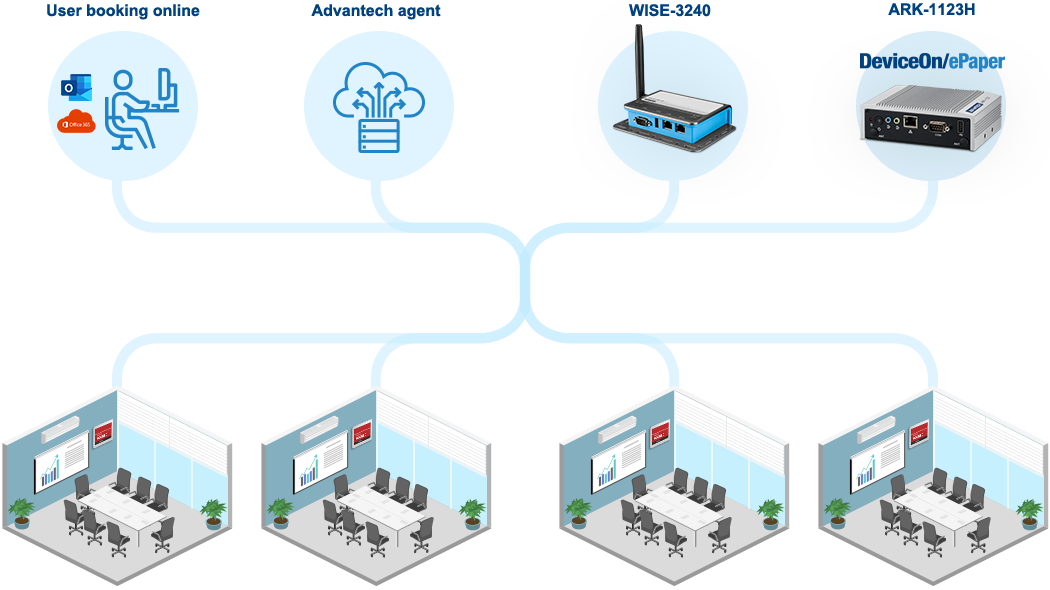

Advantech ePaper Connectivity Coverage

Bundle A
- 5.6" ePaper Device
  EPD-332
  - 1 x Button & 2-color LEDs
  - Extra-low power consumption
  - 2-Way communication
  $3,999
- IoT Fanless BOX PC
  ARK-1123H
  - Intel® Celeron J1900 Quad Core 2.0 GHz SoC
  - 2.5” 128G SSD & 8G DDR4
  - 500 device connection licenses and DeviceOn/ePaper service built in
  $3,999
- Industrial Router
  WISE-3240
  - QCA 650MHz CPU with Ultra low power consumption
  - OpenWRT Web UI for easy development
  - Support IEEE802.15.4 and 2.4G Wi-Fi
  $3,999
Original price$11,997 / Special Price$9,999
GO

Smart Factory

Smart Warehouse Management

Picking system
Inventory system

Logistics Cart

Production process tracking
WIP control

Benefits

Accurate information for stock level and expiry dates
Detailed information for operators to check status
Increased productivity without extra manpower
Great solution for mobile process tracking

Bundle A
- 2.9" ePaper Device
  EPD-230
  - Multi-buttons & LEDs
  - Extra-low power consumption
  - 2-Way communication
  $3,999
- IoT Fanless BOX PC
  ARK-1123H
  - Intel® Celeron J1900 Quad Core 2.0 GHz SoC
  - 2.5” 128G SSD & 8G DDR4
  - 500 device connection licenses and DeviceOn/ePaper service built in
  $3,999
- Industrial Router
  WISE-3240
  - QCA 650MHz CPU with advanced power management capability
  - Linux OS/ OpenWRT for easy development
  - Full standards based Wi-Fi and ZigBee
  $3,999
Original price$11,997 / Special Price$9,999
GO
Bundle B
- 5.6" ePaper Device
  EPD-332
  - 1 x Button & 2-color LEDs
  - Extra-low power consumption
  - 2-Way communication
  $3,999
- IoT Fanless BOX PC
  ARK-1123H
  - Intel® Celeron J1900 Quad Core 2.0 GHz SoC
  - 2.5” 128G SSD & 8G DDR4
  - 500 device connection licenses and DeviceOn/ePaper service built in
  $3,999
- Industrial Router
  WISE-3240
  - QCA 650MHz CPU with advanced power management capability
  - Linux OS/ OpenWRT for easy development
  - Full standards based Wi-Fi and ZigBee
  $3,999
Original price$11,997 / Special Price$9,999
GO

Medical

Easy installation without extra cables
Sunlight readability with better viewing angles
Selectable power type: DC-in / battery
No power needed for emergency alerts

Bundle A
- 13.3" ePaper Device
  EPD-660
  - Supports IEEE 802.11b/g/n
  - Multiple control I/O : 5 buttons and 2 color LED
  - 8 months battery life with 3 times update per day
  $3,999
- IoT Fanless BOX PC
  ARK-1123H
  - Intel® Celeron J1900 Quad Core 2.0 GHz SoC
  - 2.5” 128G SSD & 8G DDR4
  - 500 device connection licenses and DeviceOn/ePaper service built in
  $3,999
- Industrial Router
  WISE-3220
  - QCA 650MHz CPU with Ultra low power consumption
  - OpenWRT Web UI for easy development
  - Supports IEEE 802.11b/g/n WiFi
  $3,999
Original price$11,997 / Special Price$9,999
GO
Bundle B
- 13.3" ePaper Device
  EPD-662
  - Supports IEEE 802.11b/g/n
  - Multiple control I/O :5 buttons and 2 color LED
  - 8 months battery life with 3 times update per day
  $3,999
- IoT Fanless BOX PC
  ARK-1123H
  - Intel® Celeron J1900 Quad Core 2.0 GHz SoC
  - 2.5” 128G SSD & 8G DDR4
  - 500 device connection licenses and DeviceOn/ePaper service built in
  $3,999
- Industrial Router
  WISE-3220
  - QCA 650MHz CPU with Ultra low power consumption
  - OpenWRT Web UI for easy development
  - Supports IEEE 802.11b/g/n WiFi
  $3,999
Original price$11,997 / Special Price$9,999
GO

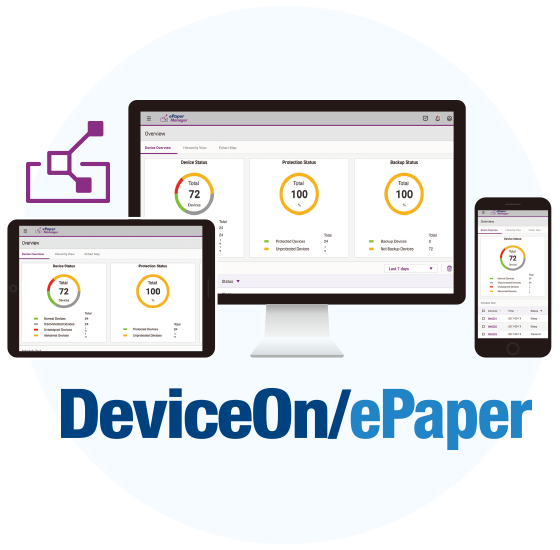

DeviceOn/ePaper Centralized Management Software

Advantech’s end-to-end solutions include our ePaper Manager server. With ePaper Manager, you can manage all information on ePaper devices in real-time. Remotely control all services to provide your customers with the latest information and have proper interactions with them.

Device Management
- Device monitoring for EPD Battery and connection report
- Remote control
Service Management
- Auto EPD image updates and scheduling updates

2-Way Communication
- EPD can report signal back to server
- Server can control EPD to update data and FW OTA
Image Generator
- Preview image on EPD
- Drag and drop component to design the Image template
