VUE-3000

Medical Monitor

Free Evaluation
Take an evaluation to receive a free gift

Choose Correctly. Choose Efficiency.

Hospitals comprise different sections with diverse purposes. Advantech provides adaptable touch display solutions, with correspondingly different functions, features and specifications, to accommodate varied hospital applications.

Touch Display Selection Guide


Resolution
Brightness (nits)
Panel Mode
Backlight MTBF
6-axis Color
Adjust
DICOM
Gamma
2.0/2.2/2.4
Power Input
Touch Function
Suggested
Model

  Commercial Industrial Semi-industrial Medical
Resolution FHD (1920 x 1080)
Brightness (nits) 250 (mainly) 350~500 as default 200~350 as default
Panel Mode Landscape only Support both landscape and portrait mode
Backlight MTBF 15,000 30,000 ~ 50,000
6-axis Color
Adjust		 No Yes No Yes
DICOM No No No Yes
Gamma
2.0/2.2/2.4		 No No No Yes
Power Input AC power input DC power input
Touch Function No touch function PCAP touch function Optional PCAP touch function
Suggested
Model		 MNT-3215 VUE-2238 - VUE-3215
VUE-2156 - VUE-3270

Why Choose Advantech’s VUE-3000?

Advantech’s VUE-3000 series is compliant with IEC 60601-1 certifications and features Digital Imaging and Communications in Medicine (DICOM) technology. This series includes 21.5” and 27” medical-grade monitors that deliver anti-reflection/fingerprint capabilities and remote diagnostics/interpretation via PACS (Picture Archiving and Communication System). They accommodate integration within OCT systems, ultrasound machines, and dialysis machines.

DICOM image
performance

Multiple I/O

Portrait and
landscape modes

CS10V capability for
noise defense

Anti-reflection and
anti-fingerprint

Feature Highlights

01

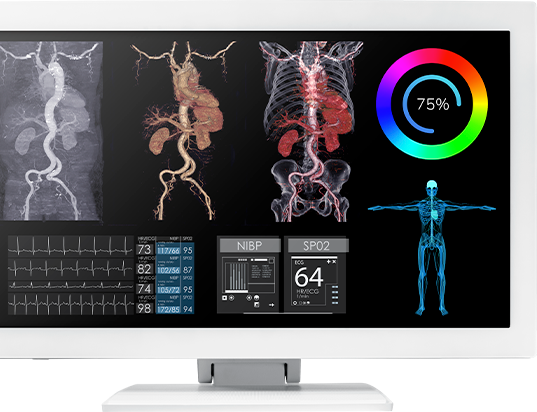

DICOM (Digital Imaging and Communications in Medicine) features

High quality medical imaging enables doctors to precisely diagnose patients, and thus deliver proper medicine, therapy, and treatment. Advantech’s VUE-3000 supports DICOM to increase medical process efficiency and accuracy.

02

6-axis color adjustment

6-axis color adjustment empowers 6-parameter color (green, red, blue, cyan, magenta and yellow) adaptability. It enables users to adjust the monitor to specific color profiles; accurately displaying the monitor’s color gamut in applications where color shade is a crucial consideration.

03

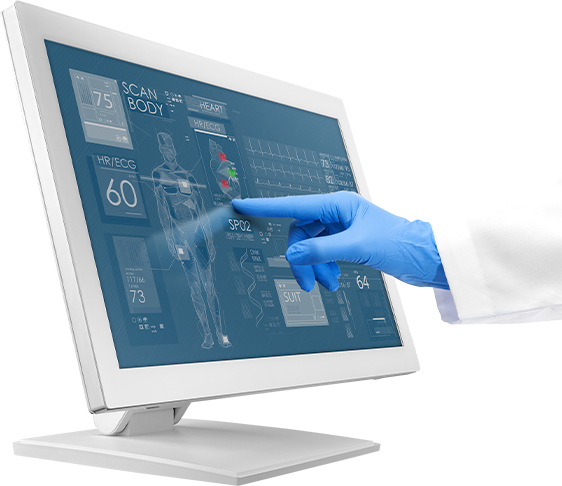

Gloved touch and active stylus pen capabilities

Advantech’s VUE-3000 series features a highly-sensitive PCAP touchscreen for gloved operation. It supports 12 different glove materials — including latex (rubber), cotton, leather, nylon and polyurethane, leather and suede, cotton and nitrile, and wool — and stylus pen operation to accommodate diverse applications.

04

High quality, low-noise solution

Advantech’s VUE-3000 medical touchscreen features CS10V capabilities to reduce noise. It leverages anti-reflection and anti-fingerprint capabilities to deliver high quality images.

05

Adjustable dual-hinge stand

VUE-3000 touch displays can leverage dual-hinge stands to create verticals for photo /video displays. This stand can also create angles for easy touch input and stylus use via horizontal placement to fulfill diverse needs.

Certificate
