AI Solution Face to Industry 4.0, IoT, and ITS

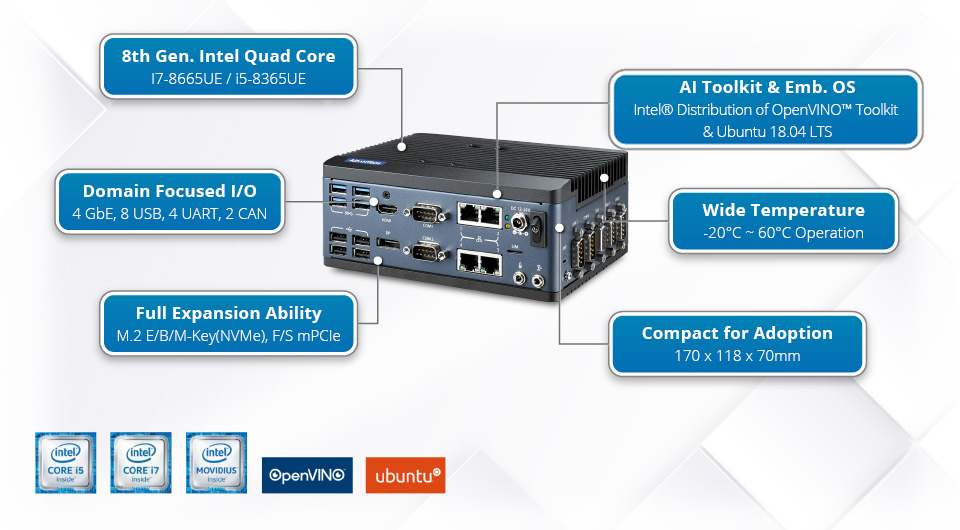

Advantech EPC-C301 is a compact, fan-less system which is empowered by Intel latest 8th Gen. Core SoC and AI acceleration Movidius solution. With its vertical focused I/O configuration, ability for various wireless and AI/VPU expansions, and wide range operating temperature from -20 to 60°C, EPC-C301 helps system integrator easily to adopt in any of applications for Industry 4.0, IoT, and intelligent transportation systems (ITS).

Automatic Number-Plate Recognition(ANPR)

ANPR is widely adopted in ETC (electronic toll collect system), traffic monitoring, or smart parking system nowadays. It not only reduces required labor cost but also effectively enhances traffic flow efficiency and reduces air pollution caused by traffic jam.

EPC-C301 key to success

• Camera I/F: 4 x USB3.0, 4 x GbE
• Intel VPU for recognition & inference
• Outdoor temperature operation -20~50°C

Automatic Guide Vehicle
(AGV)

AGV, drone applications are applied in automated storage and retrieval system (AS/RS), intelligent baggage handling system in airport, and food or grain processing system. In most cases, multiple technologies like sensors & image process are adopted to avoid errors.

EPC-C301 key to success

• Small footprint 170 x 118 x 70mm
• Sensor I/F: RS-232/422/485, CAN, GPIO
• Multiple expansions for LWAN & WWAN

Automated optical inspection
(AOI)

Keys for industry 4.0 are making production flow more automatic and intelligent. AOI, collaborative robot, and AGV applications combine with AI, machine vision, speech, and rests technology to enhance production efficiency, quality, and safety.

EPC-C301 key to success

• Latest 8th Gen. Intel Quad Core SoC
• Servo motor control I/F: CAN, Ethernet
• Intel VPU for inference and learning

Intel AI Solution - Edge AI Starts Here

Plug-and-Play Functionality

The flexibility to expand AI capabilities to the edge

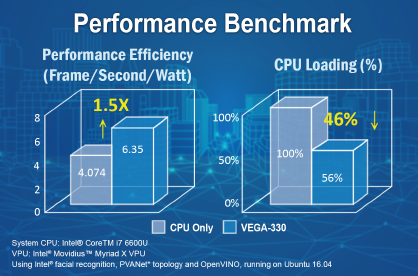

Enhanced Inference Efficiency

Scaling AI inference workloads with Intel® Vision Accelerator Designs

Software Value-Added

Accelerates edge AI deployment and management with a visualization tool

VEGA-330
SoC 2 x Intel Myriad X MA2485
Form-Factor Full Size mini-PCIe
Dimensions 30 x 50.95 x 4.86mm
Interface PCIe x1 Gen2; USB2.0
Framework TensorFlow; Caffe
Toolkit Intel® Distribution of OpenVINO™ Toolkit
  More Info

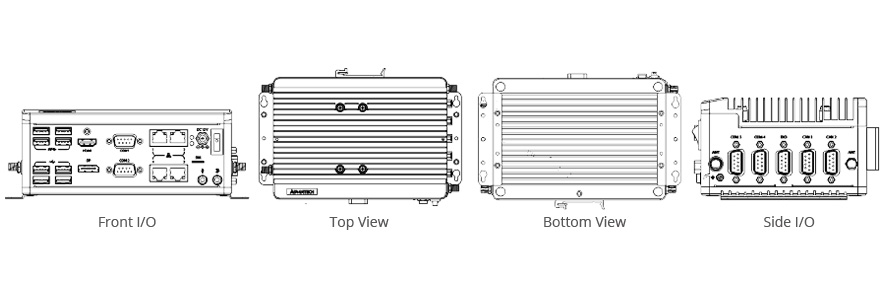

Product Mechanical Outline

Product Specification

EPC-C301
Platform Processor i7-8665UE i5-8365UE
Base Frequency 1.70 GHz 1.60 GHz
Max. Frequency 4.40 GHz 4.10 GHz
Core/Tread 4/8 4/8
LLC 8MB 6MB
CPU TDP 15W 15W
Chipset Intel® WHL-U SoC integrated
BIOS AMI EFI 256Mbit2 x Intel Myriad X MA2485
Memory Technology DDR4-2400MT/s
Max. Capacity 32GB
Channel/Socket Dual Channels / 2 Sockets
ECC Support N/A
Graphics Controller Integrated Intel® UHD Graphics 620
3D/HW Acceleration DX12, OGL4.4
HW Encode: H.264, MPEG2
HW Decode: H.264, MPEG2
AI Acceleration VEGA-330-02A1 Intel Movidius X AI module. Two Myriad X MA2485.
Full-size mini-PCIe
Storage SSD SQF-SM8M4-128G/256G- SBE
Display I/O HDMI/DP HDMI1.4 up to 4096x2160@30/24Hz
DP1.2 up to 4096x2306@60Hz
(Note: not support Audio stream & Hot-plug & HDCP)
Ethernet Controller LAN1: Intel i219, LAN2: Intel i210,
LAN3: Intel i210, LAN 4: Intel i210
Speed 10/100/1000 Mbps
Audio Interface Realtek ALC888, High Definition Audio, Line-out, Mic-in
Internal expansion Slot M.2 3042 B-Key 1
M.2 2230 E-key 1
M.2 2280 M-Key 1
MiniPCIe 1 (Default apply VEGA-330)

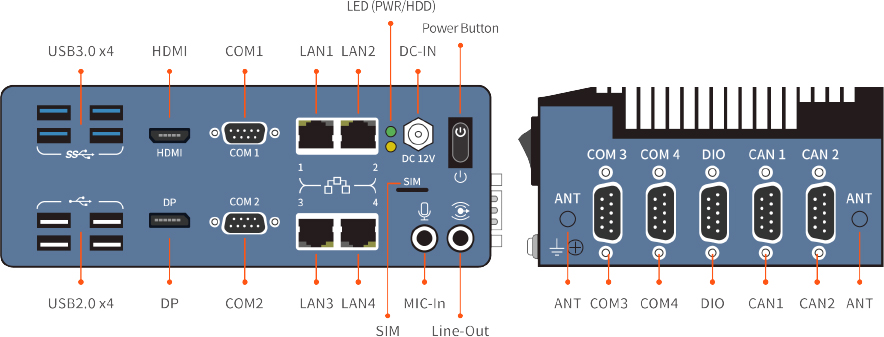

Front Panel HDMI 1
DP 1
Gigal LAN 4
USB 3.0 4
USB 2.0 4
MIC-In 1
LINE-Out 1
COM 2 (Full RS-232/422/485)
DC Jack 1
SIM card 1 (Nano SIM)
Power Button 1
Side Panel Antenna 4
COM 2 (1 x Full RS-232/422/485, 1 x RS-232)
CANBUS 2 (Support CAN 2.0B at 1Mb/s)
DIO 1
Miscellaneous LED Indicators 2 (Power LED , HDD LED)
Switch Power switch
Circular Cutouts -
Power Requirement Power Voltage 12V DC
Power input Type DC Jack
Consumption Idle: 6.683W; Max.: 65.591W
Mechanical Construction Aluminum housing
Mounting Din-Rail mounting/ Wall-mounting
Dimension 170 x 118 x 70 mm
Environment Operating temperature With extended temperature peripherals: -20 ~ 60 °C
(-4 ~ 140 °F) with 0.7m/s air flow without VEGA 330/
-20 ~ 50 °C with VEGA 330
Storage Temperature -40 ~ 85 °C ( -40 ~ 185 °F)
Relative Humidity 95% @ 40 °C (non-condensing)
EMC CE/FCC Class B, CCC, BSMI
Safety Certification UL, CCC, BSMI
Reference Pricing Range - TBU

*Note: Support by request

Download Datasheet

Ordering Information

EPC-Computer Vision Development Kit

EPC-C301EVK-S7A Multiple I/Os Fan-less Embedded System, Intel 8th Gen. Core i7-8665UE, Quad Core, 16G DDR4 Memory, 128G M.2 SSD, VEGA-330-02A1, Ubuntu 18.04 LTS, Adaptor
EPC-C301EVK-S6A1 Multiple I/Os Fan-less Embedded System, Intel 8th Gen. Core i5-8365UE, Quad Core, 8G DDR4 Memory, 128G M.2 SSD, VEGA-330-02A1, Ubuntu 18.04 LTS, Adaptor
