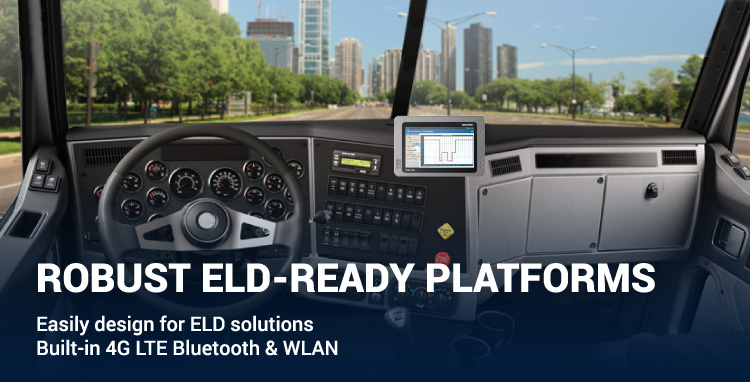

While developing solutions for in today’s carrier demanding Electronic Logging Device (ELD) requirements, it’s important to select the right vehicle hardware for shortened to-market times. The Advantech TREK-733L features a 1.0 GHz processor, Android support, and rich wireless connectivity, providing carriers a multi-function platform. Design for data exchange for logging and driver behavior monitoring with the flexibility required by the FMCSA ruling.
|
|
|
|
| |
7" RISC All-in-One In-Vehicle Computer for Android ELD Applications
|
|
|
|
| |
|
|
|
| Supports Android 4.4
|
|
|
|
|
|
|
|
System
|
|
Dual Core NXP 1.0 GHz SOC all-in-one vehicle system
|
| Screen |
|
7" WSVGA LCD with capacitive touch |
| Reliability |
|
Meets MIL STD-810G rating and features glass-film-film construction |
| Temperature
|
|
Wide Temp Design
(-20 ~ 70° C) |
| Power |
|
Supports 12/24V vehicle power, built-in battery & UPS with alerting
|
| Connectivity |
|
Built-in 4G LTE, WLAN (802.11 b/g/n), BT4.0, and GNSS
|
| Accessories
|
|
Digital I/O support for vehicle speed
line input for distance measurement
|
|
|
| |
| |
| |
In-Vehicle Computer with Intel Atom, Built-in WES7, WLAN, BT and 4G LTE |
|
|
|
| |
|
|
|
System
|
|
Ultra Compact PC with built-in Intel Atom E3815 1.46 GHz processor
|
| Optional Display |
|
Single-cable connection with TREK-303/306
In-Vehicle Smart Display (sold separately)
|
| Regulations |
|
Meets SAE J1455, ISO 7637-2, SAE J1113
|
| Temperature
|
|
Wide Temp Design
(-30 ~ 70° C) |
| Power |
|
Supports 12/24V vehicle power, on/off/hibernate management
|
| Connectivity |
|
Built-in 4G LTE, WLAN (802.11 a/b/g/n), BT4.0, and GNSS |
| I/O
|
|
Dual CAN Bus ports for vehicle protocols J1939, OBD-II/ISO 15765 , USB, LAN, Mic-in, Line-out
|
|
|
|
|
|
|
| |

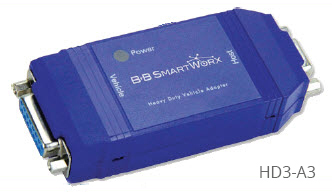

J1708 and J1939 Vehicle Interface Adapter
|
|
|
|
| |
|
|
|
Support |
|
Supports both J1939(250k & 500k) & J1708 HDV interfaces
|
| Reliability |
|
Built to withstand harsh environments |
| Temperature |
|
Wide temperature range (-40 to +85°C) |
| Adaptive |
|
Shock and vibration tested |
| Upgrade |
|
Over-the-air (OTA) upgradeable |
|
|
|
|
| |
Easy installation with the 7" LCD Smart Vehicle Display
|
|
|
|
| |
|
Size |
|
7" Smart Vehicle Display
|
| Simplicity |
|
Single-cable connection with
TREK In-Vehicle PCs |
| Screen |
|
Rugged, Hi Rez Touch LCD |
| Adaptive |
|
Programmable function keys |
|
|
|
|
| |
