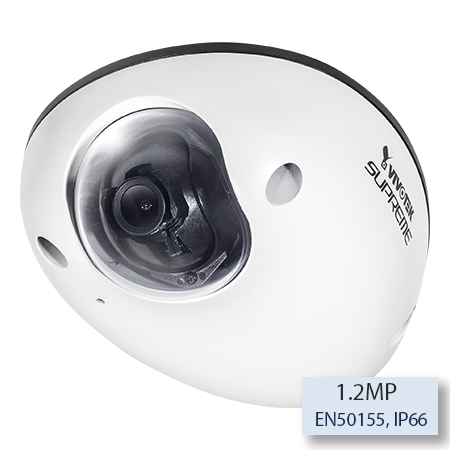

XCAM-MD8531-V1 VIVOTEK MD8531H-F3 1.2MP Outdoor Mobile Dome IP Network Camera, WDR Pro, 3DNR, 1280x960, 30fps, H.264, MPEG-4 & MJPEG, EN50155 Mobile Surveillance, IP66, Vandal-proof IK10, PoE

VIVOTEK MD8531H-F3 1.2MP Outdoor Mobile Dome IP Network Camera, WDR Pro, 3DNR, 1280x960, 30fps, H.264, MPEG-4 & MJPEG, EN50155 Mobile Surveillance, IP66, Vandal-proof IK10, PoE
  • VIVOTEK MD8531H-F3 1.2MP Outdoor Mobile Dome IP Network Camera, WDR Pro, 3DNR, 1280x960, 30fps, H.264, MPEG-4 & MJPEG, EN50155 Mobile Surveillance, IP66, Vandal-proof IK10, PoE

  1. 1.2-Megapixel 1/3" CMOS Sensor
  2. 30 fps @ 1280x960 (1.2MP)
  3. EN50155 Compliance for Mobile Surveillance
  4. WDR Pro (120dB) Visibility in Bright & Dark
  5. IP66-rated and Vandal-proof IK10-rated Housing
  6. Built-in 802.3af PoE
  7. Video Rotation
  8. Temperature
Resources
Resources Download
DownloadExtended SpecificationsReturn Policy
Please visit via PC to place order/quote
Make an inquiry
Please Select Purchase Qty X
confirm
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
IP Camera
Accessory List
No
IP Camera
Auto-Iris
No
IP Camera
Beam Angle
30 fps @1280x960
IP Camera
Compression
Triple (H.264/MPEG-4/MJPEG)
IP Camera
Day/Night
No
IP Camera
Dimension
7.1 x 5.91 x 5.12 inch
IP Camera
Frame/Second
30 fps @1280x960
IP Camera
IK-10
Yes
IP Camera
IR Illumination
No
IP Camera
Lens
Fixed 3.6mm
IP Camera
Manufacturer
Vivotek
IP Camera
On-Board Storage
MicroSD/SDHC/SDXC Card Slot
IP Camera
Power Adaptor Included
No
IP Camera
Power Consumption
Max 4.5 W (PoE)
IP Camera
Power Input
PoE
IP Camera
Protection Level
Yes
IP Camera
Resolution (Sensor)
1280x960 (1.2MP)
IP Camera
Sensor
1/3'' Progressive CMOS
IP Camera
Temperature
-25°C ~ 55°C
IP Camera
Type
Mobile
IP Camera
Warranty
3-Year
IP Camera
WDR
WDR Pro (120dB)
IP Camera
Weight(kg)
0.8
