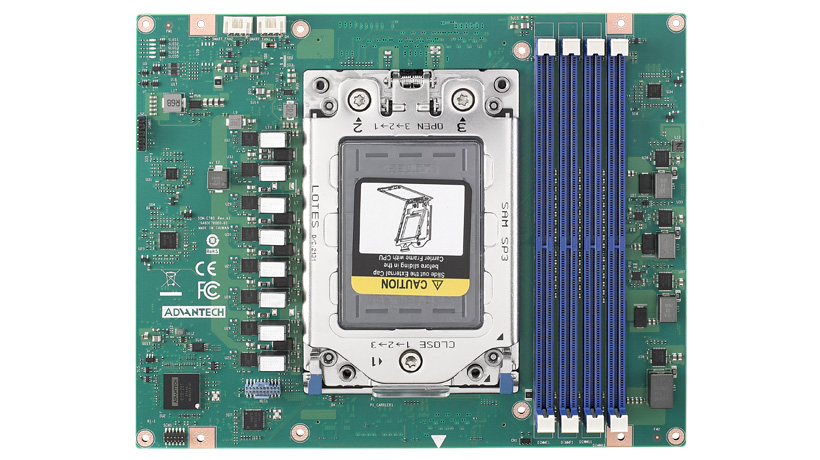

SOM-E780S64-U0A1 AMD EPYC 7713P 2.0GHz 225W 64C COM-HPC A1

AMD EPYC 7713P 2.0GHz 225W 64C COM-HPC A1

  1. COM-HPC® Server Size E module with proprietary pinout
  2. Up to 64C/225W AMD EYPC™ 7003 real server grade CPU with extreme performance
  3. Up to 512GB large memory size with 4x DDR4 long DIMM
  4. 79 PCIe Gen4 lanes (14 more than COM-HPC STD)
  5. Supports iManager, Embedded Software APIs, WISE-DeviceOn, and IPMB
Resources
Resources Download
DatasheetDownloadDriverManualExtended SpecificationsReturn Policy
Please visit via PC to place order/quote

$12,145.00

2 years extended warranty
Make an inquiry Add to Quote
Please Select Purchase Qty X
confirm
Add to Cart
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Form Factor
Form Factor
COM-HPC Size E
Form Factor
Pin-out Type
COM-HPC Server
I/O
COM Port
2
I/O
GPIO
12
I/O
LPC
1
I/O
Smart Fan
2 Ports; 1 Port on COM Module. Support 12V Fan, 1 Port on Carrier Board
I/O
SPI Bus
1
I/O
TPM
TPM 2.0
I/O
USB 3.2
4
I/O
USB2.0
4
I/O
Watchdog timer
65536 level, 0 ~ 65535 sec
Memory
ECC Support
Yes
Memory
Max. Capacity
512GB
Memory
Socket
4 x LRDIMM
Memory
Technology
DDR4 3200 MHz
Processor
Base Frequency
2.0 GHz
Processor
BIOS
AMI UEFI 128 Mbit
Processor
Core Number
64
Processor
CPU
AMD EPYC™ 7713P
Processor
CPU TDP
225W
Processor
Max Turbo Frequency
3.675 GHz
Processor
Thread
128
Storage
SATA
2 x SATAIII
Environment
Humidity
Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing
Environment
Operating Temperature
0 ~ 60° C (32 ~ 140° F)
Environment
Storage Temperature
0 ~ 60℃
Environment
Vibration Resistance
3.5 Grms
Power
Power Supply Voltage
Vin: 12V (± 5%); VSB: 5V (± 5%), RTC Battery: 2.0V ~ 3.3V
Power
Power Type
ATX: Vin, VSB; AT: Vin
Ethernet
Controller
intel I225
Ethernet
Speed
10/100/1000/2500 Mbps
Expansion
PCI Express x 1
14
Expansion
PCI Express x 16
4
Mechanical
Dimensions
200 x 160 mm
Serial Bus
I2 C Bus
Yes
Serial Bus
SMBus
Yes
