Home IoT Gateways Industrial IoT Gateways & Devices Solution Readys Packages Ignition Edge Ready Gateway & HMI

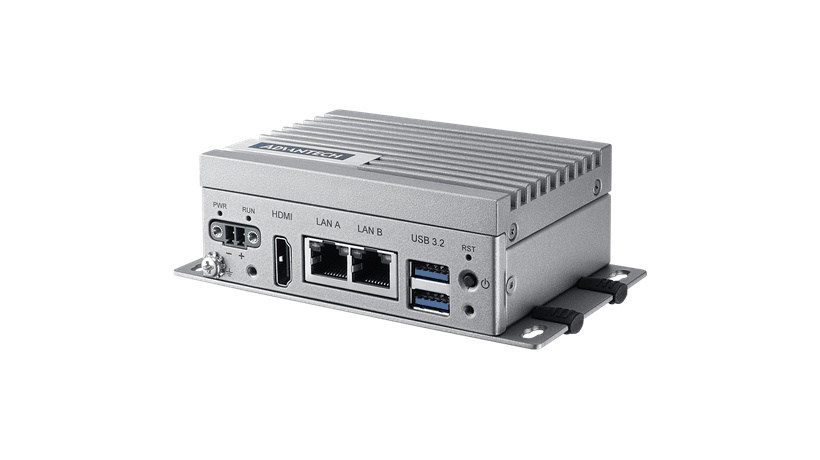

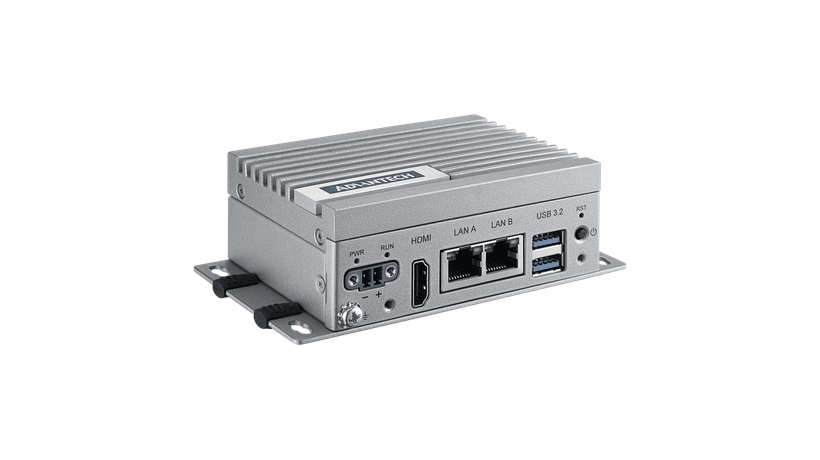

IGNE-UNO2271GV2-1 Intel® Celeron™ N6210/N6415 Dual/Quad-core Pocket-size Edge Gateway, Ignition Edge Ready (Linux/Windows)

UNO-2271G-N221AU
  • UNO-2271G-N221AU
  • UNO-2271G-N221AU
  • UNO-2271G-N221AU
  • UNO-2271G-N221AU

  1. Intel ® Celeron® N6210 dual-core/Pentium® N6415 quad-core Processor
  2. 4GB/8GB DDR4 Onboard Memory
  3. Built-in 32G eMMC Storage
  4. Compact, robust, fanless, and cable-free system with modular design
  5. Optional stackable extension kits for PoE, COM, wireless connectivity, and iDoor expansion
  6. Built-in TPM 2.0 for hardware-based security
  7. System is certified for compatibility with Ubuntu Core, Microsoft Azure IoT Edge, AWS IoT Greengrass, WISE-DeviceOn, and WISE IoT Edge
Certifications
CE CE CE CE CE CE CE CE
Resources
  • Base System w/Storage
Please visit via PC to place order/quote

$540.00

2 years extended warranty
Request Quantity Discount Preview Add to Quote Add to Cart
Configure System
  • Configure Your System
  • Accessories
Base System w/Storage
Base System w/Storage : Intel® Celeron® Dual core N6210, 4G RAM with 2 x GbE, 2 x USB, 1 x mPCIe, HDMI, 32G eMMC, for US
Intel® Celeron® Dual core N6210, 4G RAM with 2 x GbE, 2 x USB, 1 x mPCIe, HDMI, 32G eMMC, for US
[ +$0.00 ]
Intel® Pentium® Quad core N6415, 8G RAM with 2 x GbE, 2 x USB, 1 x mPCIe, HDMI, 64G eMMC, for US
[ +$205.00 ]
CPU
CPU : Intel ® Celeron® N6210 dual-core (1.2 GHz)/ Pentium ® N6415 quad-core (1.2 GHz)
Intel ® Celeron® N6210 dual-core (1.2 GHz)/ Pentium ® N6415 quad-core (1.2 GHz)
[ +$0.00 ]
Memory
Memory : 4GB/8GB DDR4 Onboard
4GB/8GB DDR4 Onboard
[ +$0.00 ]
Storage Device : eMMC 32GB Storage Built-In
eMMC 32GB Storage Built-In
[ +$0.00 ]
Solid State Disk (mSATA)
Solid State Disk (mSATA) : None

System will not support mSATA if iDoor module is selected.

None
[ +$0.00 ]
ADATA mSATA 64G SATAIII 96 3DTLC
[ +$25.00 ]
ADATA mSATA 128G SATAIII 96 3DTLC
[ +$40.00 ]
SQF mSATA 650-D 64G 3D TLC (BiCS5) (0~70°C)
[ +$23.00 ]
SQF mSATA 650-D 64G 3D TLC (BiCS5) (-20~85°C)
[ +$24.70 ]
SQF mSATA 650-D 64G 3D TLC (BiCS5) (-40~85°C)
[ +$27.30 ]
SQF mSATA 650-D 128G 3D TLC (BiCS5) (0~70°C)
[ +$31.10 ]
SQF mSATA 650-D 128G 3D TLC (BiCS5) (-20~85°C)
[ +$33.60 ]
SQF mSATA 650-D 128G 3D TLC (BiCS5) (-40~85°C)
[ +$38.60 ]
SQF mSATA 650-D 256G 3D TLC (BiCS5) (0~70°C)
[ +$47.10 ]
SQF mSATA 650-D 256G 3D TLC (BiCS5) (-20~85°C)
[ +$50.70 ]
SQF mSATA 650-D 256G 3D TLC (BiCS5) (-40~85°C)
[ +$61.40 ]
SQF mSATA 650-D 512G 3D TLC (BiCS5) (0~70°C)
[ +$78.90 ]
SQF mSATA 650-D 512G 3D TLC (BiCS5) (-20~85°C)
[ +$84.80 ]
SQF mSATA 650-D 512G 3D TLC (BiCS5) (-40~85°C)
[ +$106.70 ]
SQF mSATA 650-D 1T 3D TLC (BiCS5) (0~70°C)
[ +$143.00 ]
SQF mSATA 650-D 1T 3D TLC (BiCS5) (-20~85°C)
[ +$153.90 ]
SQF mSATA 650-D 1T 3D TLC (BiCS5) (-40~85°C)
[ +$197.70 ]
SQF mSATA 650-D 2T 3D TLC (BiCS5) (0~70°C)
[ +$285.60 ]
SQF mSATA 650-D 2T 3D TLC (BiCS5) (-40~85°C)
[ +$398.50 ]
SQF mSATA 650-D 32G 3D sTLC (BiCS5) (0~70°C)
[ +$31.10 ]
SQF mSATA 650-D 32G 3D sTLC (BiCS5) (-40~85°C)
[ +$36.90 ]
SQF mSATA 650-D 64G 3D sTLC (BiCS5) (0~70°C)
[ +$47.10 ]
SQF mSATA 650-D 64G 3D sTLC (BiCS5) (-40~85°C)
[ +$55.90 ]
SQF mSATA 650-D 128G 3D sTLC (BiCS5) (0~70°C)
[ +$78.90 ]
SQF mSATA 650-D 128G 3D sTLC (BiCS5) (-40~85°C)
[ +$93.30 ]
SQF mSATA 650-D 256G 3D sTLC (BiCS5) (0~70°C)
[ +$143.00 ]
SQF mSATA 650-D 256G 3D sTLC (BiCS5) (-40~85°C)
[ +$169.10 ]

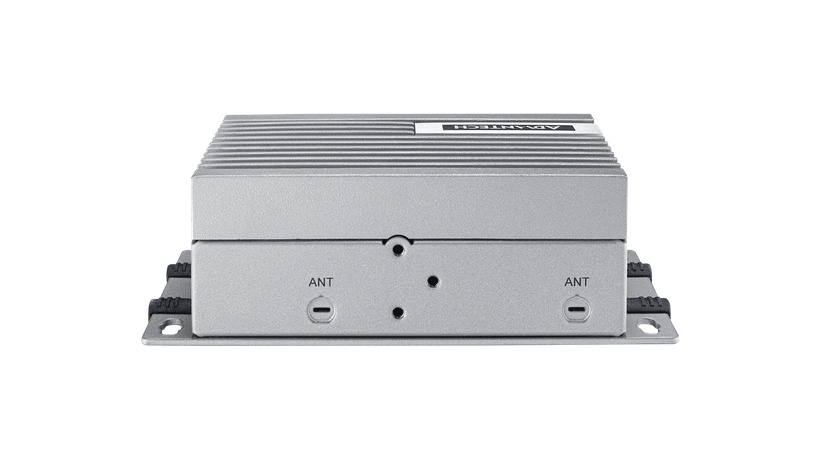

Wireless LAN Connectivity
Wireless LAN Connectivity : None

System will not support mSATA or iDoor modules if selected. EWM-W192K1 w/o mPCIe adapter can be used with expasnion kit P/N UNO-2271G-RS2EA.

None
[ +$0.00 ]
Intel Wireless AC9260(No vPro) M.2 2230 module card with cables and antenna kit
[ +$48.00 ]
WiFi Module 802.11 a/b/g/n/ac 2T2R w/BT5.1, Intel AC9260
[ +$60.00 ]
Intel WiFi-AC9260 M.2 2230 Kit with M.2 to Mini PCIe Adapter
[ +$63.00 ]
802.11ac + BT5.0 2T2R RTL8822CE-CG HMC Wifi Module with Antennas and Cables
[ +$66.16 ]
Expansion Kit : None

UNO-2271G-RP1EA and UNO-2271G-RS2EA support M.2 2242 SATA SSD.

None
[ +$0.00 ]
UNO-2271G 2nd stack extension kit for iDoor
[ +$34.00 ]

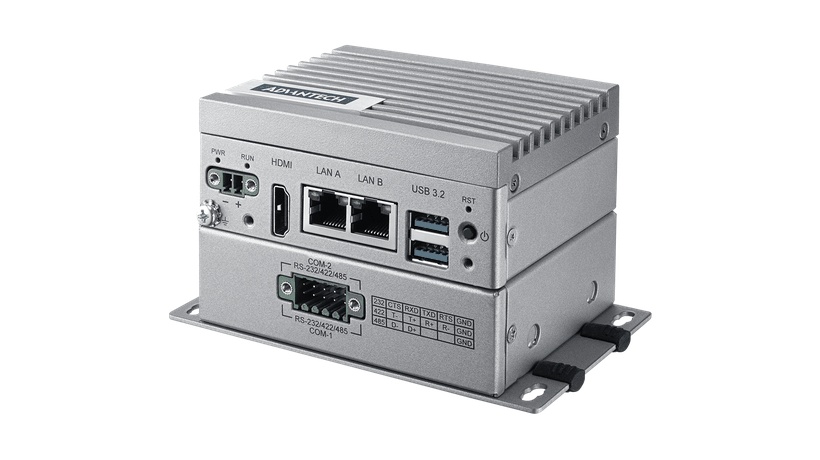

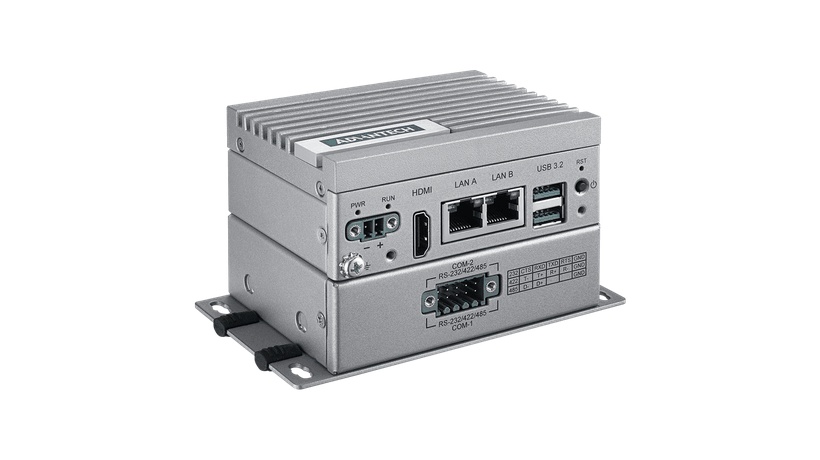

2nd Stack Expansion Module Supporting 2 x COM, 1 x M.2 B key, 1 x M.2 E key
[ +$78.00 ]

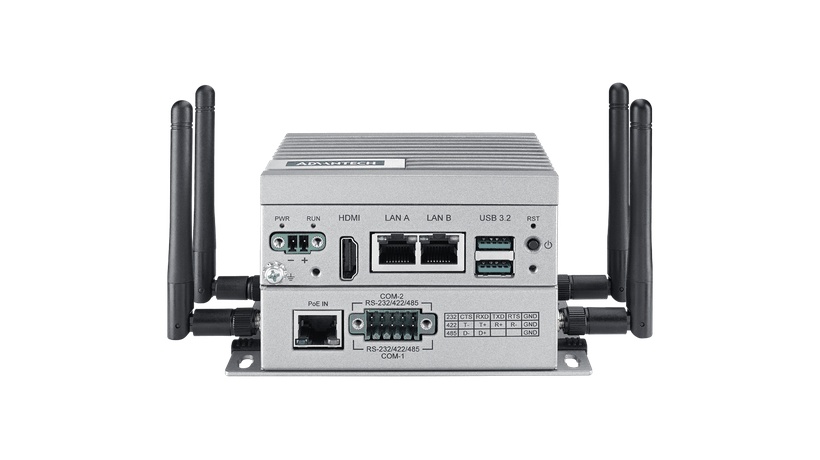

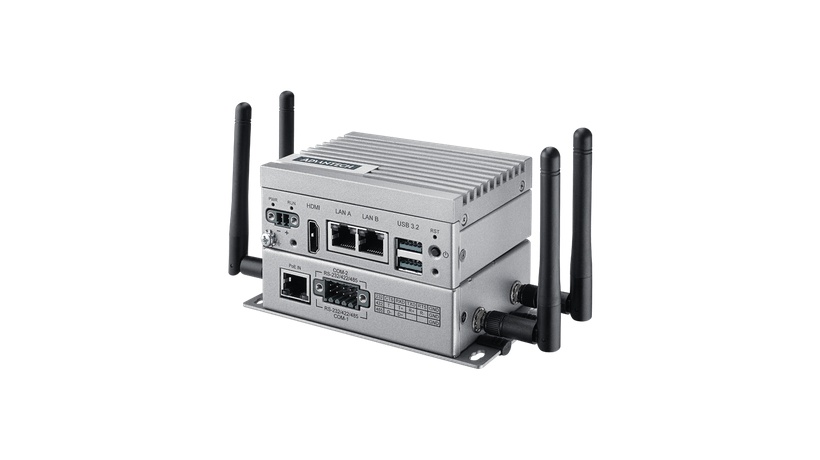

2nd Stack Expansion Module Supporting 2 x COM, 1 x POE (PD), M.2 B Key
[ +$99.00 ]
iDoor Modules : None

Expansion kit P/N UNO-2271G-EKBE required.

None
[ +$0.00 ]
1-Port Intel I225, 2.5Gb/s, IEEE 1588, TSN
[ +$65.00 ]
2-Port Gigabit Ethernet Mini-PCIe iDoor Module
[ +$100.00 ]
2-Ports Isolated RS-422/485 Mini-PCIe iDoor Module, DB9 x 2
[ +$108.00 ]
2-Ports Isolated RS-232 Mini-PCIe iDoor Module, DB9 x 2
[ +$125.00 ]
M.2 SSD : None

UNO-2271G-RP1EA or UNO-2271G-RS2EA required for support.

None
[ +$0.00 ]
SQF SATA M.2 2242 650-D 64G 3D TLC BiCS5 (0~70°C)
[ +$24.10 ]
SQF SATA M.2 2242 650-D 64G 3D TLC BiCS5 (-20~85°C)
[ +$25.90 ]
SQF SATA M.2 2242 650-D 64G 3D TLC BiCS5 (-40~85°C)
[ +$28.60 ]
SQF SATA M.2 2242 650-D 128G 3D TLC BiCS5 (0~70°C)
[ +$31.40 ]
SQF SATA M.2 2242 650-D 128G 3D TLC BiCS5 (-20~85°C)
[ +$33.70 ]
SQF SATA M.2 2242 650-D 128G 3D TLC BiCS5 (-40~85°C)
[ +$39.30 ]
SQF SATA M.2 2242 650-D 256G 3D TLC BiCS5 (0~70°C)
[ +$45.80 ]
SQF SATA M.2 2242 650-D 256G 3D TLC BiCS5 (-20~85°C)
[ +$49.20 ]
SQF SATA M.2 2242 650-D 256G 3D TLC BiCS5 (-40~85°C)
[ +$61.00 ]
SQF SATA M.2 2242 650-D 512G 3D TLC BiCS5 (0~70°C)
[ +$74.90 ]
SQF SATA M.2 2242 650-D 512G 3D TLC BiCS5 (-20~85°C)
[ +$80.60 ]
SQF SATA M.2 2242 650-D 512G 3D TLC BiCS5 (-40~85°C)
[ +$104.00 ]
SQF SATA M.2 2242 650-D 1T 3D TLC BiCS5 (0~70°C)
[ +$133.60 ]
SQF SATA M.2 2242 650-D 1T 3D TLC BiCS5 (-20~85°C)
[ +$143.60 ]
SQF SATA M.2 2242 650-D 1T 3D TLC BiCS5 (-40~85°C)
[ +$190.30 ]
SQF SATA M.2 2242 650-D 32G 3D sTLC BiCS5 (-40~85°C)
[ +$37.00 ]
SQF SATA M.2 2242 650-D 64G 3D sTLC BiCS5 (-40~85°C)
[ +$54.10 ]
SQF SATA M.2 2242 650-D 128G 3D sTLC BiCS5 (-40~85°C)
[ +$88.50 ]
SQF SATA M.2 2242 650-D 256G 3D sTLC BiCS5 (-40~85°C)
[ +$158.00 ]
Operating System
Operating System : Choose One

Operating System with Ignition Edge preloaded. (Purchase Ignition license from Inductive Automation.)

Choose One
Ubuntu OS License for Desktop & Server
Windows 10 IoT Enterprise 2021 LTSC Entry EPKEA
Power Adapter
Power Adapter : None
None
[ +$0.00 ]
100-240V 60W 24V 2.5A Power Supply
[ +$34.00 ]
Assembly and Testing
Assembly and Testing : Standard Assembly, Functional Testing, SW installation (Moderate)
Standard Assembly, Functional Testing, SW installation (Moderate)
[ +$0.00 ]
Extended warranty
Extended warranty : NoneExtended Warranty Details
None
[ +$0.00 ]
Extended Warranty for 3 Months
[ +$4.80 ]
Extended Warranty for 6 Months
[ +$9.60 ]
Extended Warranty for 12 Months
[ +$19.20 ]
Extended Warranty for 24 Months
[ +$43.20 ]
Extended Warranty for 36 Months
[ +$72.00 ]
Accessory : None
None
[ +$0.00 ]
Cable Lock Kit
[ +$40.00 ]
Mounting : None
None
[ +$0.00 ]
UNO-2271G DIN RAIL Mount Kit
[ +$16.00 ]
UNO-2000 Series VESA Mounting Kit
[ +$40.00 ]
Flat Panel Monitors
Flat Panel Monitors : None
None
[ +$0.00 ]
15.6" Wide Screen Ind. Monitor w/ PCAP TS (HDMI)
[ +$889.00 ]
21.5" Wide Screen Ind. Monitor w/ PCAP TS (HDMI)
[ +$1,039.00 ]
Keyboard + Mouse
Keyboard + Mouse : None
None
[ +$0.00 ]
Logitech MK120 KB + Mouse USB US
[ +$23.00 ]

Comment

Specifications
Category
Attribute
Value
System
System
Pocket-size Modular Edge Gateway with Intel Elkhart Lake Dual/Quad-core CPU, 32G eMMC, 4GB/8GB RAM
Processor
Processor
Intel® Celeron® Dual core N6210/Pentium® Quad core N6415
Memory
Memory
4GB or 8GB DDR4 Memory Built In

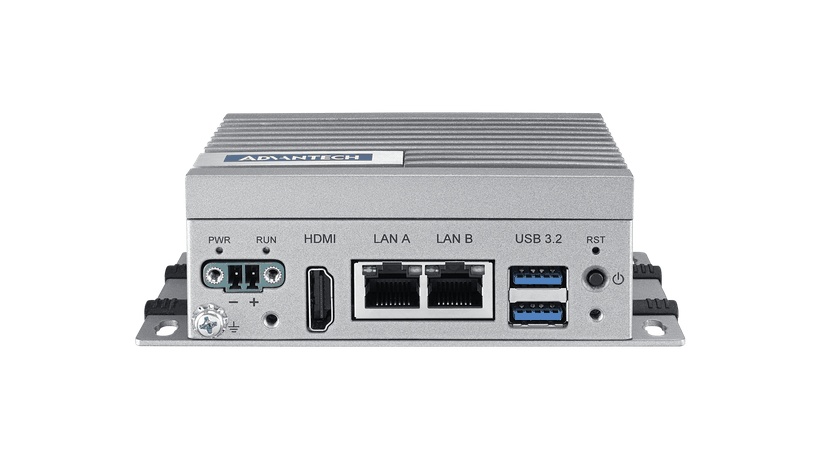

I/O Ports
I/O Ports
2 x RJ45
2 x USB 3.2 Gen 1
1 x HDMI
LAN Interface
LAN Interface
10/100/1000Base-T Fast Ethernet
Expansion
Expansion
1 x Full-size Mini-PCIe
Optional second stack module for iDoor support
Optional second stack module with 2 x COM, 1 x PoE (PD), 1 x M.2 2242(B key)
Optional second stack module with 2 x COM, 1 x M.2 2242/3052 (B key), 1 x M.2 2230 (E key)
Watch Dog Timer
Watch Dog Timer
Interrupt, system reset
Programmable 1 ~ 255 sec
Operating Temperature
Operating Temperature
-20~60°C (-4~140°F)
Humidity
Humidity
10 ~ 95% RH, non-condensing
Power Consumption
Power Consumption
12W (Typical)
30W (Max)
Power Input Voltage
Power Input Voltage
10~30VDC
Dimensions (W x H x D)
Dimensions (W x H x D)
100 x 30 x 70 mm (3.9 x 1.2 x 2.8 in.)
Weight
Weight
0.5 kg (1.1lbs)
Operating System
Operating System
Windows 10
Ubuntu 20.04
Ubuntu Core 20
Software
Software
Ignition Edge
Certification
Certification
BSMI, CCC, CE, FCC, UL

About Us

  1. Contact Us
  2. Careers
  3. Privacy
  4. Schedule a Visit

Customer Service

  1. Download Center
  2. Net Term Application
  3. Online Product Catalog
  4. Terms and Conditions
  5. Warranty Policy
  6. Do Not Sell My Personal Information
  7. Evaluation Program
  8. Return Policy

Get Involved

Copyright © 1983 - 2024 Advantech Co., Ltd. All Rights Reserved | Cookie Policy

x
Contact Us

1-888-576-9668

8 am- 8 pm (EST) Mon-Fri

Contact Advantech
