Home Industry Solutions Medical Computing Solutions Medical Grade Computers All-in-One PC 21.5" - 24" Display

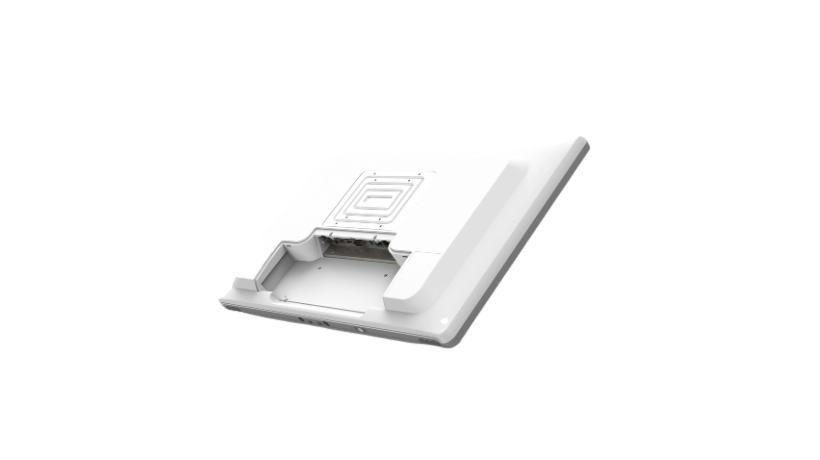

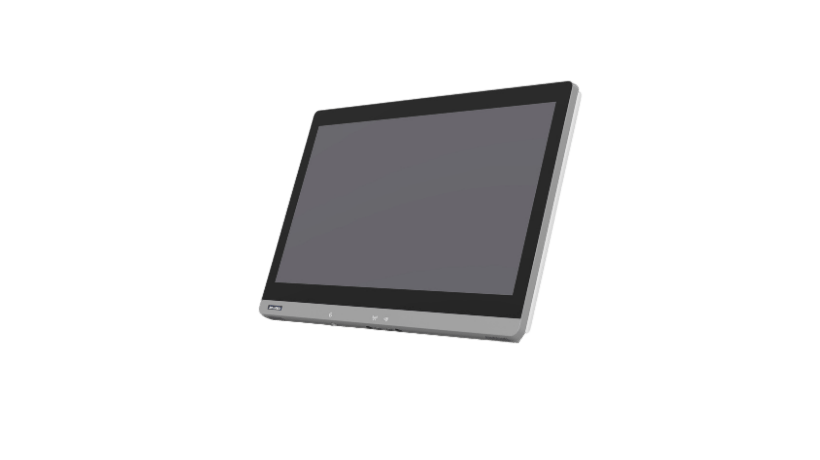

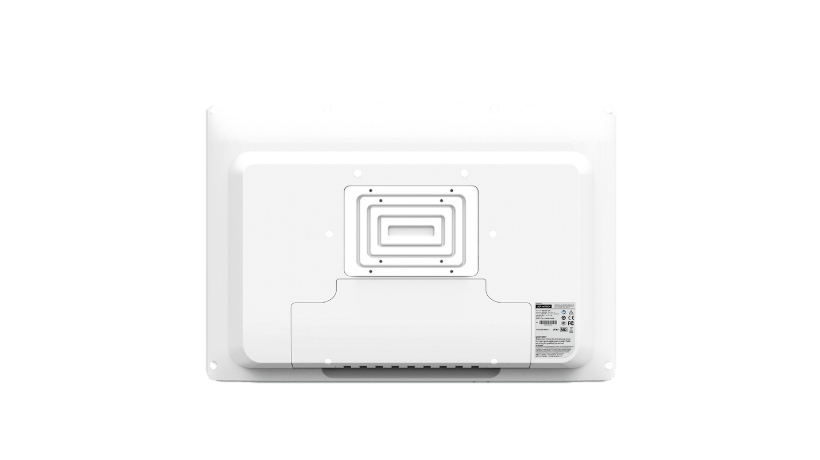

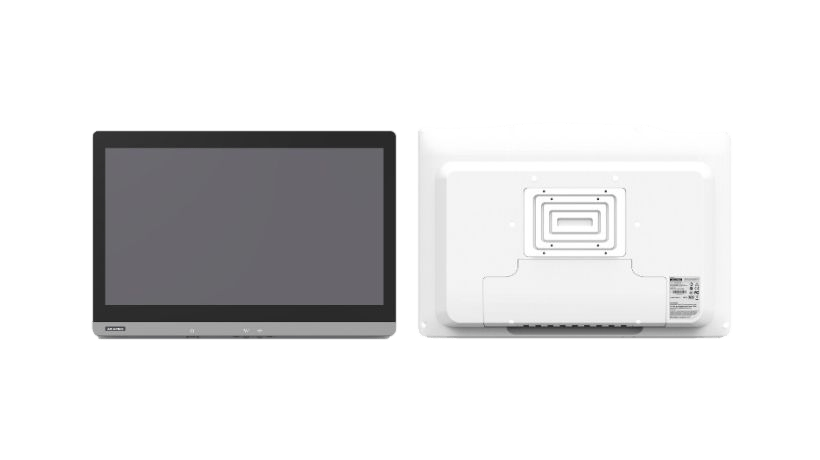

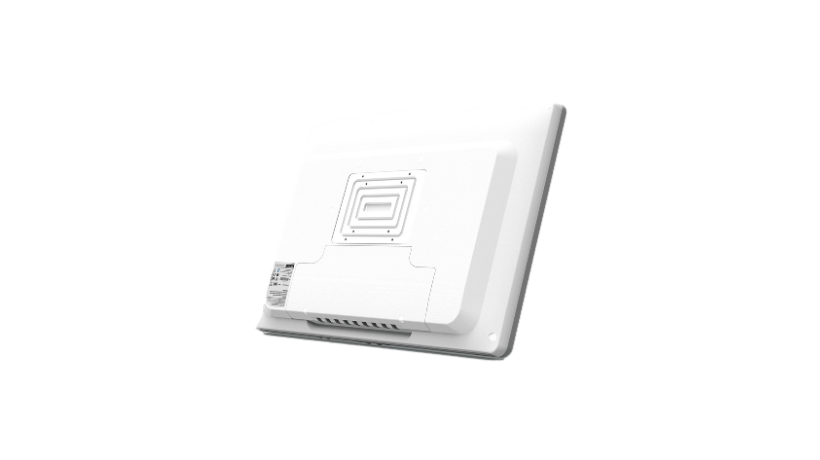

POC-421-11B00D-CA Phase Out POC 4,21.5",I5,8G,256G,Wifi,IPX1

POC 4,21.5",I5,8G,256G,Wifi,IPX1
  • POC 4,21.5",I5,8G,256G,Wifi,IPX1
  • POC 4,21.5",I5,8G,256G,Wifi,IPX1
  • POC 4,21.5",I5,8G,256G,Wifi,IPX1
  • POC 4,21.5",I5,8G,256G,Wifi,IPX1
  • POC 4,21.5",I5,8G,256G,Wifi,IPX1
  • POC 4,21.5",I5,8G,256G,Wifi,IPX1

  1. 8/12th generation Intel® Core™ i5/celeron processor
  2. 21.5" full HD display with multi-touch P-CAP control
  3. M.2 expansion slots for integrating add-on modules
  4. Fanless design with upgrade IP54-rated protection for superior hygiene and infection control
  5. Equipped with Advantech’s DeviceOn device management software
  6. Optional Wi-Fi, Bluetooth, RFID, smart card reader and auto-focus 5 megapixel camera
  7. Optional Mic-In/ Headphone-Out applications
  8. 2023 Taiwan Excellence Award granted
Certifications
CE CE CE CE CE
Resources
Resources Download
DatasheetDownloadDriverManualExtended SpecificationsReturn Policy
Please visit via PC to place order/quote

$1,910.00

2 years extended warranty
Make an inquiry Add to Quote
Please Select Purchase Qty X
confirm
Add to Cart
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Display
Brightness (cd/m2)
250
Display
Resolution
1920 x 1080
Display
Size
21.5"
I/O
COM (RS232) 1.5KV
1
I/O
HDMI
1
I/O
LAN non-isolation
2
I/O
USB 3 Type C
N/A
I/O
USB 3.1 Gen 1 (Type A)
4
Storage
Primary Storage (default)
NVME SSD 256GB (M.2 2280)
System
Memory
8GB DDR4 (supports up to 16GB DDR4 SODIMM)
System
Operating System (optional)
Windows 10 IoT Ent (64 bits only), Linux (supported upon request)
System
Processor
Intel® Core™ i5-8365UE (6M cache, up to 4.10 GHz)
Touchscreen
Type
10-point multi touch P-CAP (clear glass)
Expansion Slot
M.2 2230 E. Key (Optional)
Wi-Fi & Bluetooth
Certifications
Safety
Medical CE IEC/EN60601-1-2;IEC/EN60601-1; UL/IEC62368-1, FCC(Part 15B), CCC
Warranty
-
2 years
Authentication Solution
RFID Reader
Optional (choose either RFID or smart card reader)
Authentication Solution
Smart Card Reader
Optional (choose either RFID or Smart card reader)
Recommended Peripherals

Accessory Products

Part No. Description Unit Price Qty
ARES-5222A-ATW2000 WallArm,≦32",supp2~10kg,wo/KBtray,75/100mm $133.05
ARES-2423R-A741L00 ARES-2423R is a height adjusting desk stand compatib with 75x75 / 100x100 mm VESA patterns. It can tilt -5° (down) ~ +25° (up) and screens up to 27" $91.53
ARES-7621C-LB20000 Bundled with ARES-7600C, ARES-7621C provides a medical-grade ceiling long reach arm that can be used with bedside PIT (with a load of 1~6.5 kg). $500.05
ARES-7321I-LW20000 ARES-7321I is a medical grade wall-mounted arm with VESA standard holes that can be moved horizontally. $564.69
Part No. Qty
ARES-5222A-ATW2000
WallArm,≦32",supp2~10kg,wo/KBtray,75/100mm
Unit Price: $133.05
ARES-2423R-A741L00
ARES-2423R is a height adjusting desk stand compatib with 75x75 / 100x100 mm VESA patterns. It can tilt -5° (down) ~ +25° (up) and screens up to 27"
Unit Price: $91.53
ARES-7621C-LB20000
Bundled with ARES-7600C, ARES-7621C provides a medical-grade ceiling long reach arm that can be used with bedside PIT (with a load of 1~6.5 kg).
Unit Price: $500.05
ARES-7321I-LW20000
ARES-7321I is a medical grade wall-mounted arm with VESA standard holes that can be moved horizontally.
Unit Price: $564.69
