FPM-2120G-R3BE LCD DISPLAY, 12" XGA Industrial Monitor with Resistive Touchscreen (RS232&USB)

  1. 12'' SVGA TFT LCD with LED backli
  2. Robust design with aluminum front panel
  3. Anti-reflective screen with tempered glass
  4. Supports Panel, Wall, Desktop or VESA arm mounting
  5. Combo RS-232 & USB interface for touchscreen function
Please visit via PC to place order/quote

$710.00

Make an inquiry Add to Quote Add to Cart
Features
    1. Are you looking for a reliable and affordable industrial monitor?

  • Advantech’s FPM series of industrial-grade touch monitors are designed to support diverse industrial visualization and control applications. Featuring a rugged design, wide operating temperature range, and IP65-rated front panel for protection from water and dust, the FPM series can withstand operation in harsh industrial environments. Although commercial monitors have been employed for industrial visualization applications, overall they are less durable and offer fewer capabilities compared to industrial-grade monitors.
  • Feature Highlights

    1. Industrial-grade design provides exceptional durability
      • LCD backlight with 50,000-hr lifetime
      • Lifespan of 36 million touches
      • Chemical-resistant surface
      • Shock and vibration tolerance
      • IP65-rated front panel
      • Aluminum housing
    2. Cost savings with consistent system uptime and longevity
      • Supports 24/7 operation
      • 2-year warranty
      • Future-proof cutout dimensions
    3. Easy installation
      • Slim and lightweight design
      • Easy installation and versatile mounting
  • Product Specifications

    1. Dimensions
    2. Unit: mm
      FPM-2120G
      Panel Cutout Dimensions: 303 x 229 mm/11.93 x 9.02 in
    1. Mount Options

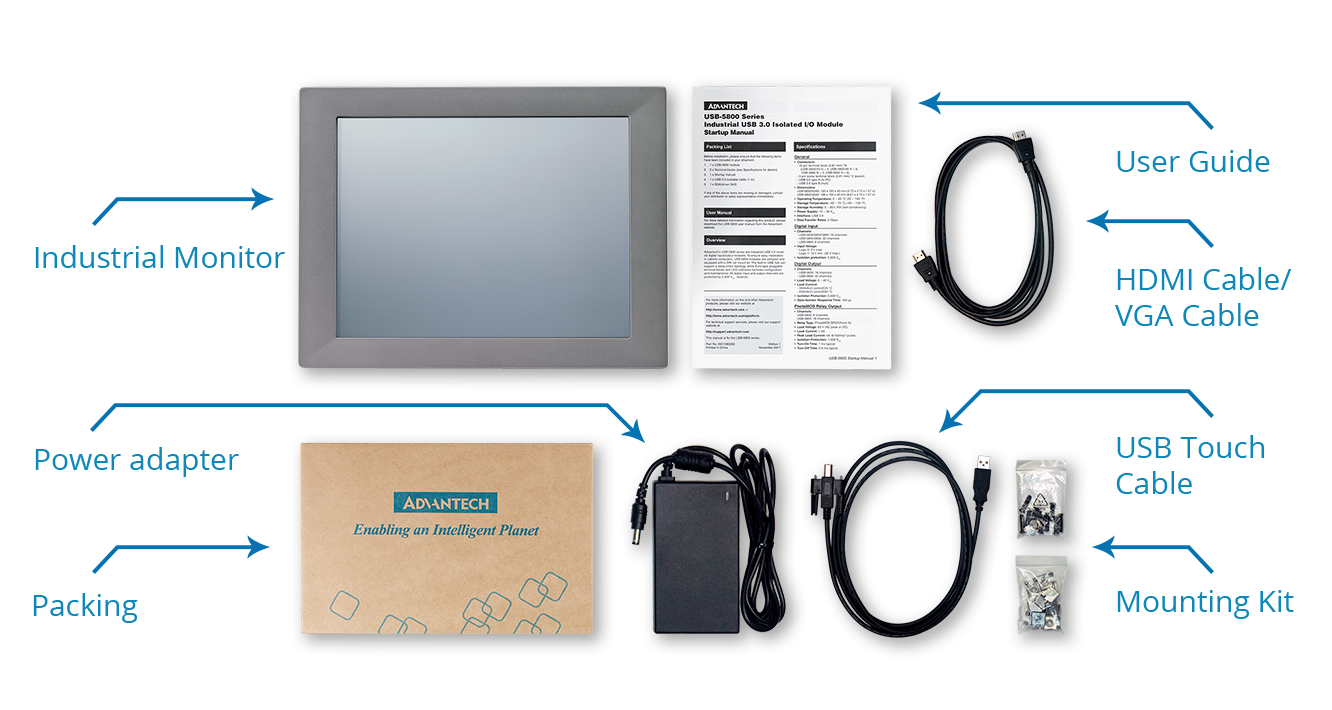

    1. Packing List
    2. FPM-2120G
Specifications
Category
Attribute
Value
Display*
Backlight Life (hrs)
50,000 hrs
Display*
Display Size
12.1"
Display*
Display Type
XGA TFT LCD with LED backlight
Display*
Luminance (cd/m2)
600
Display*
Max. Colors
16.2 M
Display*
Max. Resolution
1024 x 768
Display*
Viewing Angle (H/V°)
General
Certifications*
BSMI, CCC, CE, FCC, UL
General
Dimensions*
311 x 237 x 40.63 mm (12.24" x 9.33" x 1.60")
General
Enclosure*
Front panel: Aluminum, Rear cover: SECC chassis
General
Mounting*
Panel, wall, desktop, VESA arm
General
Power Input*
External 60 W power adapter, with AC 100 V ~ 240 V input and DC +12 V @ 5 A output (included)
General
Video Port*
VGA
General
Weight (Net)*
4kg (8.82 lbs)
Environment
Operating Temperature
0 ~ 50°C (32 ~ 122°F)
Environment
Storage Humidity
10 ~ 95% non-condensing
Environment
Storage Temperature
-20 ~ 60°C (-4 ~ 140°F)
Environment
Vibration*
5 ~ 500 Hz, 1 Grms (Operating, Random)
Environment
Waterproof*
Front Panel IP65 Compliant
Touchscreen
Interface*
RS-232 and USB
Touchscreen
Lifespan*
36 millions times with a silicone rubber of R8 finger, hitting rate is calculated as being 250g at 2 times per second
Touchscreen
OS Support*
Windows® XP, Vista, 7, 8, 10, XPe, CE and Linux
