Home Compact Computers Embedded Computers Automation Series (UNO) Intel Atom Processor

UNO-127-1 Mini DIN-Rail Edge Computer with Intel Elkhart Lake Atom x6413E CPU, 4GB/8GB RAM

UNO-127-E22BA
  • UNO-127-E22BA
  • UNO-127-E22BA
  • UNO-127-E22BA
  • UNO-127-E22BA
  • UNO-127-E22BA
  • UNO-127-E22BA
  • UNO-127-E22BA

  1. Intel® Atom® Quad core x6413E, 1.5GHz Processor
  2. 4GB or 8GB of DDR4 Memory
  3. Compact, robust, fanless and cable-free system with high stability
  4. Optimized basic unit with 2 x GbE, 2 x USB, 1 x HDMI
  5. Onboard full-Size mPCIe port for various expansion capability
  6. Onboard TPM 2.0 provides hardware-based security
  7. System ground isolation design
  8. Certified with IEC 61010-2-201 for industrial applications
Certifications
CE CE CE CE CE CE
Resources
  • Base System w/Storage
Please visit via PC to place order/quote

$720.00

2 years extended warranty
Request Quantity Discount Preview Add to Quote Add to Cart
Configure System
  • Configure Your System
  • Accessories
Base System w/Storage
Base System w/Storage : Intel ® Atom® Quad core x6413E, 4G RAM with 2 x GbE, 2 x USB, 1 x mPCIe, HDMI, 64G eMMC
Intel ® Atom® Quad core x6413E, 4G RAM with 2 x GbE, 2 x USB, 1 x mPCIe, HDMI, 64G eMMC
[ +$0.00 ]
Intel ® Atom® Quad core x6413E, 8G RAM with 2 x GbE, 2 x USB, 1 x mPCIe, HDMI, 64G eMMC
[ +$50.00 ]
Solid State Disk (mSATA)
Solid State Disk (mSATA) : None

Not supported if Wifi or Cellular module is selected.

None
[ +$0.00 ]
ADATA mSATA 64G SATAIII 96 3DTLC
[ +$25.00 ]
ADATA mSATA 128G SATAIII 96 3DTLC
[ +$40.00 ]
SQF mSATA 650-D 64G 3D TLC (BiCS5) (0~70°C)
[ +$23.00 ]
SQF mSATA 650-D 64G 3D TLC (BiCS5) (-20~85°C)
[ +$24.70 ]
SQF mSATA 650-D 64G 3D TLC (BiCS5) (-40~85°C)
[ +$27.30 ]
SQF mSATA 650-D 128G 3D TLC (BiCS5) (0~70°C)
[ +$31.10 ]
SQF mSATA 650-D 128G 3D TLC (BiCS5) (-20~85°C)
[ +$33.60 ]
SQF mSATA 650-D 128G 3D TLC (BiCS5) (-40~85°C)
[ +$38.60 ]
SQF mSATA 650-D 256G 3D TLC (BiCS5) (0~70°C)
[ +$47.10 ]
SQF mSATA 650-D 256G 3D TLC (BiCS5) (-20~85°C)
[ +$50.70 ]
SQF mSATA 650-D 256G 3D TLC (BiCS5) (-40~85°C)
[ +$61.40 ]
SQF mSATA 650-D 512G 3D TLC (BiCS5) (0~70°C)
[ +$78.90 ]
SQF mSATA 650-D 512G 3D TLC (BiCS5) (-20~85°C)
[ +$84.80 ]
SQF mSATA 650-D 512G 3D TLC (BiCS5) (-40~85°C)
[ +$106.70 ]
SQF mSATA 650-D 1T 3D TLC (BiCS5) (0~70°C)
[ +$143.00 ]
SQF mSATA 650-D 1T 3D TLC (BiCS5) (-20~85°C)
[ +$153.90 ]
SQF mSATA 650-D 1T 3D TLC (BiCS5) (-40~85°C)
[ +$197.70 ]
SQF mSATA 650-D 2T 3D TLC (BiCS5) (0~70°C)
[ +$285.60 ]
SQF mSATA 650-D 2T 3D TLC (BiCS5) (-40~85°C)
[ +$398.50 ]
SQF mSATA 650-D 32G 3D sTLC (BiCS5) (0~70°C)
[ +$31.10 ]
SQF mSATA 650-D 32G 3D sTLC (BiCS5) (-40~85°C)
[ +$36.90 ]
SQF mSATA 650-D 64G 3D sTLC (BiCS5) (0~70°C)
[ +$47.10 ]
SQF mSATA 650-D 64G 3D sTLC (BiCS5) (-40~85°C)
[ +$55.90 ]
SQF mSATA 650-D 128G 3D sTLC (BiCS5) (0~70°C)
[ +$78.90 ]
SQF mSATA 650-D 128G 3D sTLC (BiCS5) (-40~85°C)
[ +$93.30 ]
SQF mSATA 650-D 256G 3D sTLC (BiCS5) (0~70°C)
[ +$143.00 ]
SQF mSATA 650-D 256G 3D sTLC (BiCS5) (-40~85°C)
[ +$169.10 ]
Wireless LAN Connectivity
Wireless LAN Connectivity : None

Not supported if mSATA or Cellular module is selected.

None
[ +$0.00 ]
WiFi Module 802.11 a/b/g/n/ac 2T2R w/BT5.1, Intel AC9260
[ +$60.00 ]
802.11ac + BT5.0 2T2R RTL8822CE-CG HMC Wifi Module with Antennas and Cables
[ +$64.24 ]
Wide Temp. Intel WiFi-AC9260 M.2 2230 Kit with M.2 to Mini PCIe Adapter
[ +$80.00 ]
Cellular Module : None

Mini PCIe module is not supported if Wifi or mSATA SSD is selected. MultiTech LTE kit requires UNO-127-RS1EA.

None
[ +$0.00 ]
Quectel EG25G LTE Module Cat. 4, Mini-PCIe with Sim Holder
[ +$114.60 ]
MultiTech LTE Kit for AT&T/Verizon
[ +$230.00 ]
Expansion Kit : None

Required to support M.2 SATA SSD or M.2 Cellular module.

None
[ +$0.00 ]

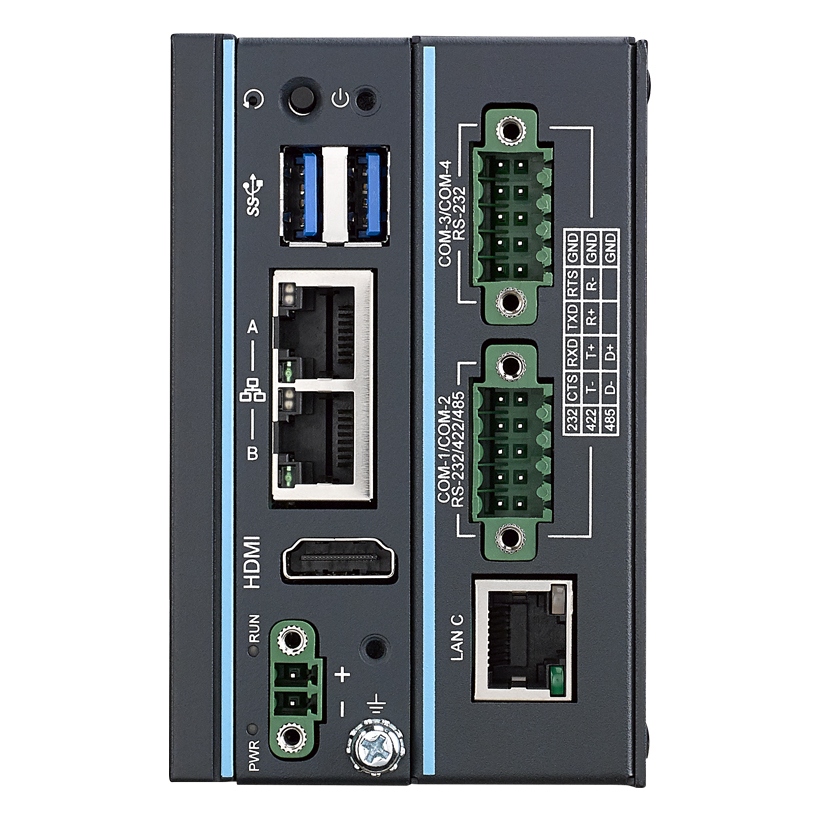

Second stack module with 4 x COM, 1 x LAN, 1 x M.2 B key
[ +$115.00 ]
M.2 SSD : None

Expansion kit UNO-127-RS1EA required to support.

None
[ +$0.00 ]
SQF SATA M.2 2242 650-D 64G 3D TLC BiCS5 (0~70°C)
[ +$24.10 ]
SQF SATA M.2 2242 650-D 64G 3D TLC BiCS5 (-20~85°C)
[ +$25.90 ]
SQF SATA M.2 2242 650-D 64G 3D TLC BiCS5 (-40~85°C)
[ +$28.60 ]
SQF SATA M.2 2242 650-D 128G 3D TLC BiCS5 (0~70°C)
[ +$31.40 ]
SQF SATA M.2 2242 650-D 128G 3D TLC BiCS5 (-20~85°C)
[ +$33.70 ]
SQF SATA M.2 2242 650-D 128G 3D TLC BiCS5 (-40~85°C)
[ +$39.30 ]
SQF SATA M.2 2242 650-D 256G 3D TLC BiCS5 (0~70°C)
[ +$45.80 ]
SQF SATA M.2 2242 650-D 256G 3D TLC BiCS5 (-20~85°C)
[ +$49.20 ]
SQF SATA M.2 2242 650-D 256G 3D TLC BiCS5 (-40~85°C)
[ +$61.00 ]
SQF SATA M.2 2242 650-D 512G 3D TLC BiCS5 (0~70°C)
[ +$74.90 ]
SQF SATA M.2 2242 650-D 512G 3D TLC BiCS5 (-20~85°C)
[ +$80.60 ]
SQF SATA M.2 2242 650-D 512G 3D TLC BiCS5 (-40~85°C)
[ +$104.00 ]
SQF SATA M.2 2242 650-D 1T 3D TLC BiCS5 (0~70°C)
[ +$133.60 ]
SQF SATA M.2 2242 650-D 1T 3D TLC BiCS5 (-20~85°C)
[ +$143.60 ]
SQF SATA M.2 2242 650-D 1T 3D TLC BiCS5 (-40~85°C)
[ +$190.30 ]
SQF SATA M.2 2242 650-D 32G 3D sTLC BiCS5 (-40~85°C)
[ +$37.00 ]
SQF SATA M.2 2242 650-D 64G 3D sTLC BiCS5 (-40~85°C)
[ +$54.10 ]
SQF SATA M.2 2242 650-D 128G 3D sTLC BiCS5 (-40~85°C)
[ +$88.50 ]
SQF SATA M.2 2242 650-D 256G 3D sTLC BiCS5 (-40~85°C)
[ +$158.00 ]
Operating System
Operating System : None
None
Ubuntu OS License for Core
Ubuntu Desktop 20 IOT BUILD 1203
Windows 10 IoT Enterprise 2019 LTSC Entry EPKEA
Windows 10 IoT Enterprise 2021 LTSC Entry EPKEA
Win 11 IoT Ent LTSC 2024 ORY OEI Entry EPKEA
Windows 11 Professional 64-bit English USA
Power Adapter
Power Adapter : None
None
[ +$0.00 ]
100-240V 60W 24V 2.5A Power Supply
[ +$34.00 ]
Power Supply
Power Supply : None
None
[ +$0.00 ]
A/D 100-240V 60W 24V MDR DIN Rail Power Supply
[ +$28.00 ]
D22 DIN RAIL A/D 100-240V 60W 24V
[ +$34.00 ]
DIN Rail AC to DC 100-240V 60W 24V
[ +$73.00 ]
Assembly and Testing
Assembly and Testing : Standard Assembly, Functional Testing, SW installation (Moderate)
Standard Assembly, Functional Testing, SW installation (Moderate)
[ +$0.00 ]
Extended warranty
Extended warranty : NoneExtended Warranty Details
None
[ +$0.00 ]
Extended Warranty for 3 Months
[ +$6.60 ]
Extended Warranty for 6 Months
[ +$13.20 ]
Extended Warranty for 12 Months
[ +$26.40 ]
Extended Warranty for 24 Months
[ +$59.40 ]
Extended Warranty for 36 Months
[ +$99.00 ]
Flat Panel Monitors
Flat Panel Monitors : None
None
[ +$0.00 ]
15.6" Wide Screen Ind. Monitor w/ PCAP TS (HDMI)
[ +$889.00 ]
21.5" Wide Screen Ind. Monitor w/ PCAP TS (HDMI)
[ +$1,039.00 ]
Keyboard + Mouse
Keyboard + Mouse : None
None
[ +$0.00 ]
Logitech MK120 KB + Mouse USB US
[ +$23.00 ]

Comment

Specifications
Category
Attribute
Value
System
System
Mini DIN-Rail Edge Computer with Intel Elkhart Lake Atom x6413E CPU
Processor
Processor
Intel® Atom® x6413E
Memory
Memory
4GB or 8GB DDR4 Memory Built In
I/O Ports
I/O Ports
2 x RJ45, 10/100/1000 Mbps IEEE 802.3u
2 x USB 3.2 GEN1
1 x HDMI (1920 x 1080 @60Hz)
1 x 2 Pins, Terminal Block
LAN Interface
LAN Interface
2 x 10/100/1000 Mbps
Storage
Storage
Onboard 64GB eMMC
Optional mSATA shared with mPCIe slot
M.2 SATA SSD supported with expansion kit
M.2
M.2
1 x M.2 2242 B Key (SATA/USB 3.0 signal) Optional expansion kit required.
Expansion
Expansion
1 x Full-size Mini-PCIe
Optional second stack module with 4 x COM, 1 x LAN, 1 x M.2 B key
Power Input Voltage
Power Input Voltage
10~30VDC
Power Consumption
Power Consumption
15.8W (Typical), 35W (Max)
Operating System
Operating System
Windows 10
Ubuntu 20.04
Ubuntu Core 20
Mounting Options
Mounting Options
Din-Rail
Weight
Weight
0.5 kg (1.1lbs)
Dimensions (W x H x D)
Dimensions (W x H x D)
33.5 x 100 x 70 (1.3" x 3.9" x 2.8")
Operating Temperature
Operating Temperature
-20~60°C (-4~140°F)
Certification
Certification
BSMI, CCC, CE, FCC Class A, UL
