Home Compact Computers Embedded Chassis Wallmount/Desktop Chassis

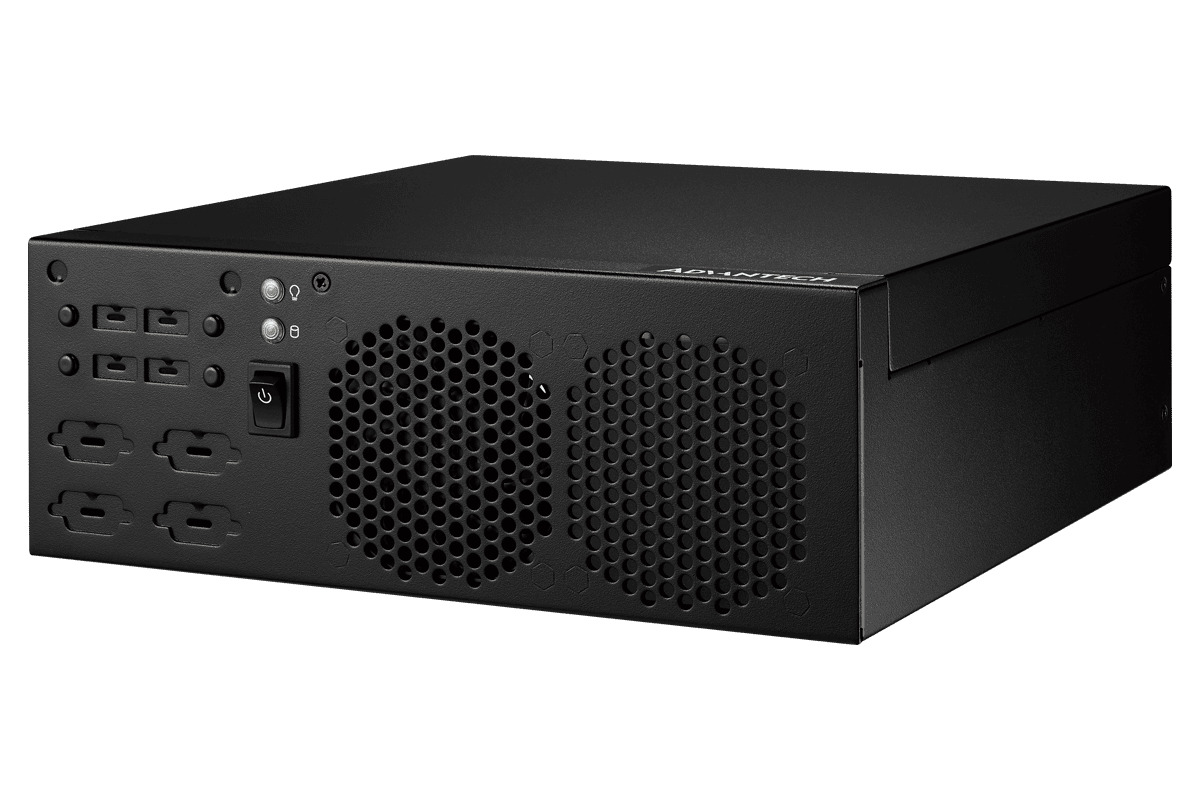

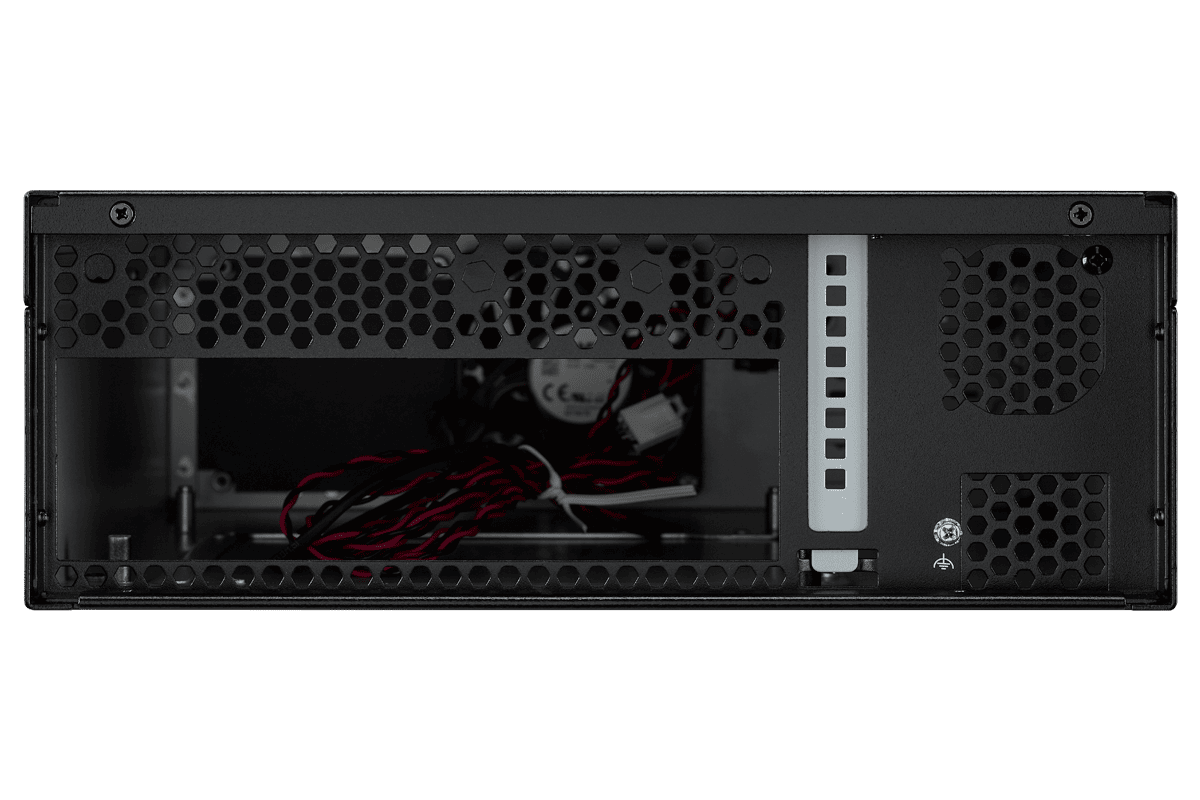

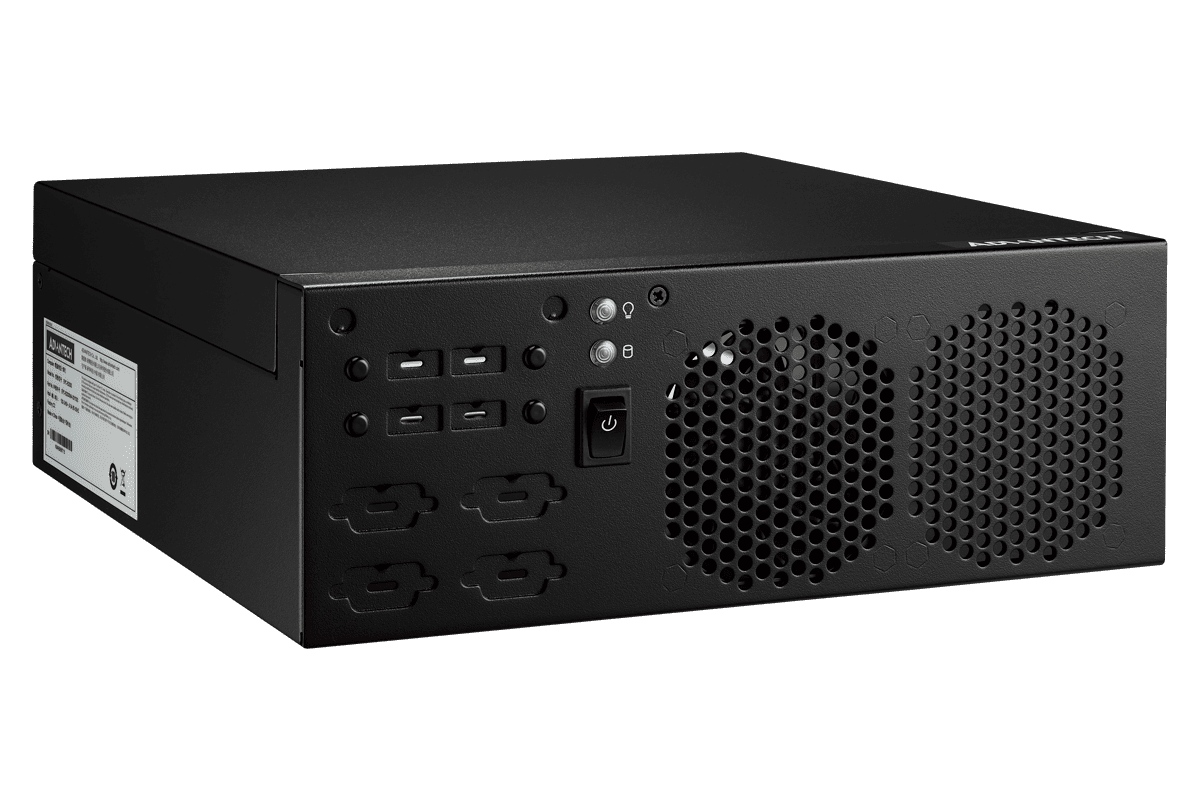

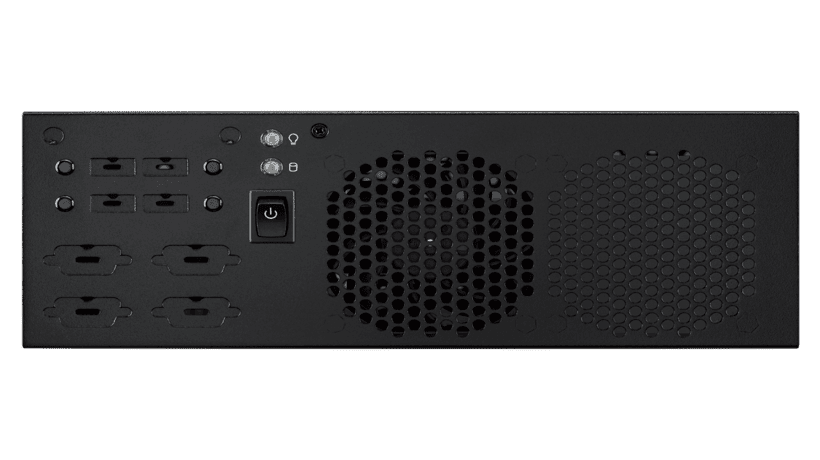

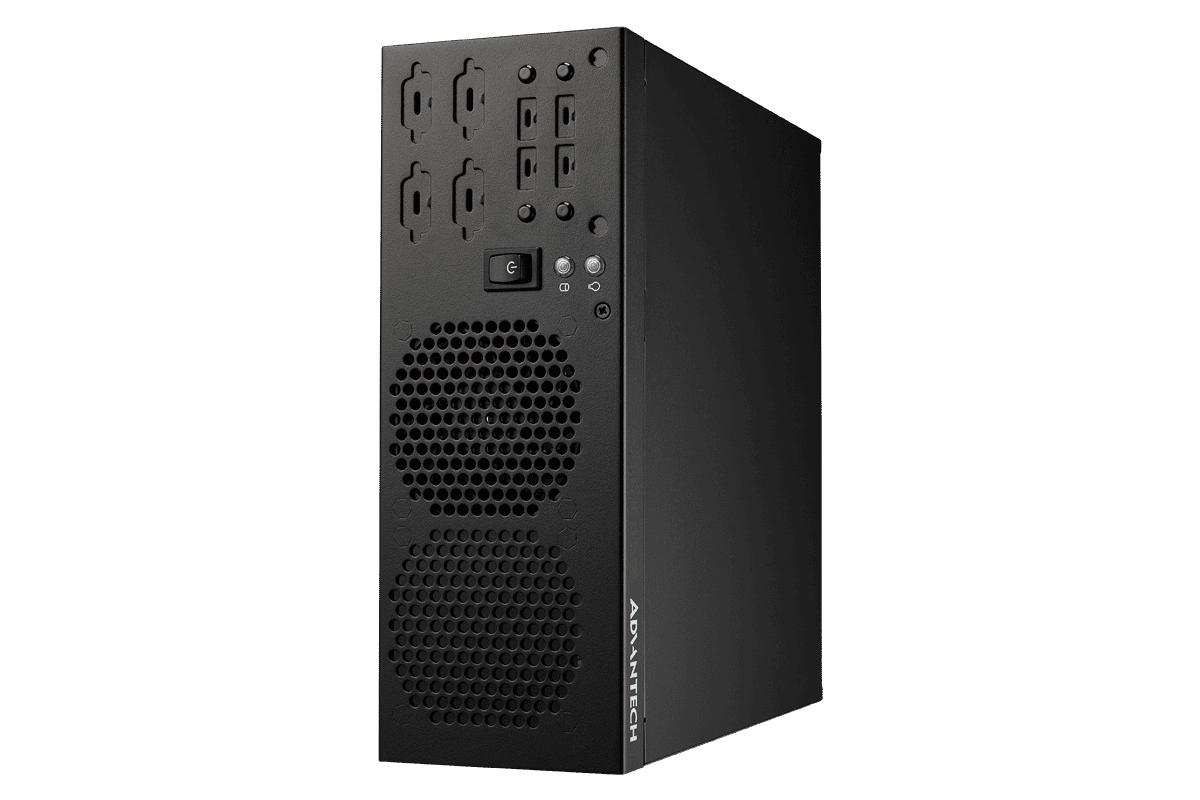

AIMB-B2000-15ZE Embedded Mini-ITX Chassis with One Expansion Slot with 150W ATX PS

Embedded Mini-ITX Chassis with One Expansion Slot with 150W ATX PS
  • Embedded Mini-ITX Chassis with One Expansion Slot with 150W ATX PS
  • Embedded Mini-ITX Chassis with One Expansion Slot with 150W ATX PS
  • Embedded Mini-ITX Chassis with One Expansion Slot with 150W ATX PS
  • Embedded Mini-ITX Chassis with One Expansion Slot with 150W ATX PS
  • Embedded Mini-ITX Chassis with One Expansion Slot with 150W ATX PS
  • Embedded Mini-ITX Chassis with One Expansion Slot with 150W ATX PS
  • Embedded Mini-ITX Chassis with One Expansion Slot with 150W ATX PS
  • Embedded Mini-ITX Chassis with One Expansion Slot with 150W ATX PS

  1. Embedded chassis supports Mini-ITX motherboard
  2. Front LED indicators for system fault detection and with one expansion slot
  3. Reserved USB, COM and WLAN antenna openings on front window
  4. Shock-resistant two 2.5" drive bay
  5. Supports Advantech AIMB-214/213/212/223 Motherboards
  6. Built-in 150w ATX Power Supply
Certifications
CE
Resources
Resources Download
DatasheetDownloadExtended SpecificationsReturn Policy
Please visit via PC to place order/quote

$163.00

2 years extended warranty
Make an inquiry Add to Quote
Please Select Purchase Qty X
confirm
Add to Cart
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Form Factor
Board
Mini ITX MB
Drive Bay
2.5"
2 (SSD or HDD)
Drive Bay
Slim ODD
1
Miscellaneous
Control
Power switch
Miscellaneous
LED Indicators
Power & HDD
Miscellaneous
Reset Button
1
Environment
Humidity
10 ~ 85% @ 40° C, non-condensing
Environment
Shock Protection
10G (with 11ms duration, half sine wave)
Environment
Temperature (Operating)
0 ~ 40°C (32 ~ 104°F)
Environment
Temperature (Storage)
-20 ~ 60° C (-4 ~ 140° F)
Environment
Vibration Resistance
1 Grms (5~500Hz)
Cooling
Fan
2 (7cm/39.45CFM each)
Expansion
PCI Express x 16
1 (maximum:25W for low profile PCIe card)
Physical
Dimension (mm)
250 x 98 x 255 mm (10.04" x 3.86" x 9.84")
Physical
Weight
3.8 kg
Reserved Opening
Serial
4
Reserved Opening
USB
4
Reserved Opening
WLAN Antenna
2
