Home Boards & Cards Video Cards Video Processing Cards

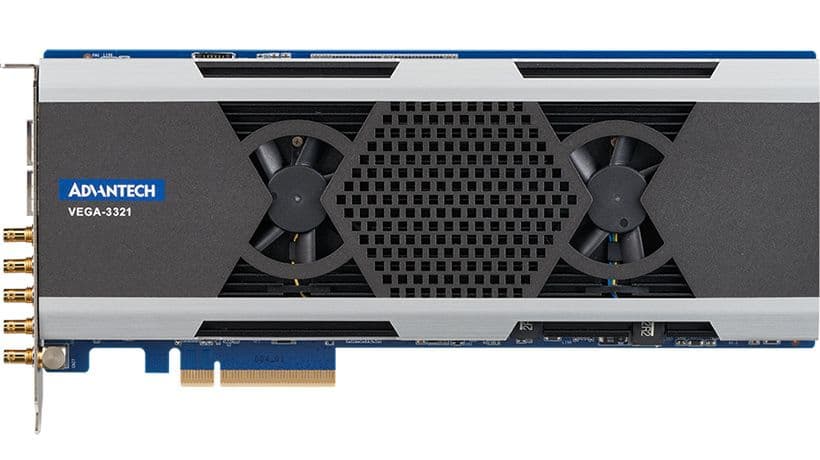

VEGA-3321-I0F3 VEGA-3321 VoIP 25G for ST2110 wo M30

VEGA-3321 VoIP 25G for ST2110 wo M30

  1. 4-ch UHD ST2110 over 2x 25G SFP or 4x12G-SDI
  2. Broadcasting grade video acquistion up to 4:2:2 10bit
  3. NMOS IP video management w/ IS-04 & IS-05
  4. 1-ch 4Kp60 or 4-ch 1080p60 real-time HEVC/AVC encode
  5. Support FFmpeg and property advantech SDK
Resources
Resources Download
DatasheetDownloadExtended SpecificationsReturn Policy
Please visit via PC to place order/quote
2 years extended warranty
Make an inquiry
Please Select Purchase Qty X
confirm
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Video Inputs and Outputs
Bit Depth
8/10-bit
Video Inputs and Outputs
Channels (Max.)
1 (up to 4Kp60)/ 4 (up to 1080p60)
Video Inputs and Outputs
Chroma Sampling Format
4:2:2, 4:2:0
Video Inputs and Outputs
Frame Rate
60p, 59.94p, 50p, 30p, 29.97p, 25p, 24p, 59.94i, 50i
Video Inputs and Outputs
Input Interface
4 x 3G-SDI/ 1 x 12G-SDI, 2 x 25 GigE (VEGA-3321-I)
Video Inputs and Outputs
Loop Out
-
Video Inputs and Outputs
Output Interface
HDMI loop-Out/ PCIe Gen3 x8
Video Inputs and Outputs
Resolution
3840 x 2160, 1920 x 1080, 1280 x 720, 720 x 480
Mechanical
Dimension (W x H x D)
254 x 126 x 21.5 mm (10" x 4.96" x 0.85")
Mechanical
Form Factor
PCIe (HL/FH)
Compatibility
OS Version
Windows, Linux
Processor System
Platform
Xilinx UltraScale Socionext M30
Video Encoding
Bit Depth
8/10-bit
Video Encoding
Chroma Subsampling
4:2:2/ 4:2:0
Video Encoding
Standard
H.265 (HEVC)/H.264 (AVC)
Video Decoding
Bit Depth
8/10-bit
Video Decoding
Chroma Subsampling
4:2:2/ 4:2:0
Video Decoding
Standard
H.265 (HEVC)/H.264 (AVC)
VoIP
Connectivity
2 x 25GbE (SFP+ cages)
VoIP
Standard Supported
SMPTE 2110 w/ AES67 audio & SMPTE 2059 sync
Audio
Audio Connectors
-
Audio
Channels (Max.)
8/16 channels
Audio
Formats
-
Audio
Sampling Bit Depth
16-bit
Audio
Sampling Frequency
48/96 KHz
Functionality
Development Kits
FFmpeg, Microsoft DirectShow
Functionality
Management & Control Interface
-
Functionality
Streaming Protocol
-
Functionality
USB
-
Network Interface
Media
-
Power
Consumption
< 50 W
Power
Input
-
