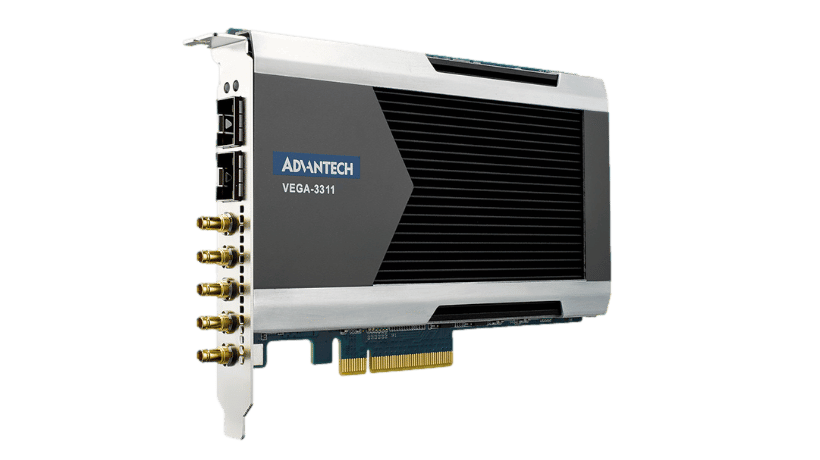

VEGA-3311-I0F0 1-Ch 4Kp60 or 4-Ch 1080p60 10-bit HEVC, AVC Encode & Decode Video Processing Card, with 2x 10GbE

  1. 1-ch 4Kp60 or 4-ch 1080p60 real-time 4:2:2 10-bit HEVC, AVC encode
  2. AIMS roadmap support including SMPTE 2110 & VSF TR-03/-04 w/ AES67 audio & SMPTE 2059 sync
  3. 4K video capture over built-in, 4-ch SDI-3G or 1-ch SDI-12G and 2x 10GbE (VEGA-3311-I)
  4. Simple-to-use API and example code for FFmpeg and GStreamer multimedia frameworks
  5. Includes SDI and Video-over-IP (VoIP)
Please visit via PC to place order/quote

$3,815.98

Make an inquiry Add to Quote Add to Cart
Specifications
Category
Attribute
Value
Environment
Non-operating Humidity
50 to 95% (non-condensing)
Environment
Non-operating Temperature
-40 to 85 degrees Celsius
Environment
Operating Humidity
50 to 95% (non-condensing)
Environment
Operating Temperature
-10 to 70 degrees Celsius
Physical Characteristics
Connectors
SFP+ Module
Physical Characteristics
Dimensions
PCI Express Half Length Full Height / 167.65 x 111.15 mm
Physical Characteristics
Forward Error Correction
Level A and Level B FEC (steam basis)
Physical Characteristics
Internet protocol
Support IPV4 static IP setting
Physical Characteristics
Networking Interface
2x 10Gbps Ethernet port (VEGA-3311-I)
Physical Characteristics
Streaming Protocol (output)
RTSP/RTMP/RTP/TS over IP (UDP)/HTTP
Physical Characteristics
Streaming Protocols (Input)
RTSP/RTMP/RTP/TS over IP (UDP) / HTTP
Physical Characteristics
Video Input Interfaces
PCIexpressGen3 x8/ 4x SDI-3G (Level A/B) or 1x SDI-12G 1x Tri-sync/2x 10Gbps Ethernet port (Rx, VEGA-3311-I)
Physical Characteristics
Video Output Interface
PCI express Gen3 x8
Physical Characteristics
Video-over-IP
SMPTE 2110 & VSF TR-03/-04 w/ AES67 audio & SMPTE 2059 sync/Optional TICO compression
Feature
Development Kits
FFmpeg 3.4.1, Microsoft DirectShow
Feature
Operating System
Windows Server 2012 & 2012 R2 (64-bit)/ Windows Server 2008 R2 (64-bit) /Linux Kernel 3.13.0 (32-bit,64-bit)
Video Input Interfaces
10Gbps Ethernet port
2
Video Input Interfaces
SDI-12G
1
Video Input Interfaces
SDI-3G
4
Video Output Interfaces
10Gbps Ethernet port
2
Video Output Interfaces
SDI-12G
1
Video Output Interfaces
SDI-3G
4
Video Input (File base)- Video Encoding (H.265)
8-bit encoding from 10-bit raw data
Supported
Video Input (File base)- Video Encoding (H.265)
Bit depth
8/10 bits
Video Input (File base)- Video Encoding (H.265)
Chroma Sampling
4:2:0 / 4:2:2
Video Input (File base)- Video Encoding (H.265)
CPB delay control
3s, 1s, 0.5s
Video Input (File base)- Video Encoding (H.265)
Filter
De-blocking filter/ Fixed strength
Video Input (File base)- Video Encoding (H.265)
Frame rate/Scan mode
60p/59.94p/50p/30p/29.97p/25p/24p /59.94i/50i
Video Input (File base)- Video Encoding (H.265)
GOP length
One Picture (I only) / 0.5sec / 1 sec
Video Input (File base)- Video Encoding (H.265)
GOP structure
I picture only/IPPP/IBB /Closed GOP/Open GOP/ Adaptive GOP (Scene change)
Video Input (File base)- Video Encoding (H.265)
HDR
supported
Video Input (File base)- Video Encoding (H.265)
Low latency
5, 6 frame (GOP=IBBB)
Video Input (File base)- Video Encoding (H.265)
Rate control
CBR/ Capped VBR
Video Input (File base)- Video Encoding (H.265)
Resolution (Multi-channel more than x2ch)
1920x1080 /1280x720 /720x480
Video Input (File base)- Video Encoding (H.265)
Resolution (x1ch)
3840x2160 /1920x1080 / 1280x720 /720x480
Video Input (File base)- Video Encoding (H.265)
Ultra low-latency
< 1 frame
Video Input (File base)- Video Encoding (H.264)
8-bit encoding from 10-bit raw data
Supported
Video Input (File base)- Video Encoding (H.264)
Bit depth
8, 10 bits
Video Input (File base)- Video Encoding (H.264)
Chroma Sampling
4:2:0 / 4:2:2
Video Input (File base)- Video Encoding (H.264)
CPB delay control
1s, 0.5s
Video Input (File base)- Video Encoding (H.264)
Filter
De-blocking filter / Fixed strength
Video Input (File base)- Video Encoding (H.264)
Frame rate/Scan mode
60p/59.94p/50p/30p/29.97p/25p/24p / 59.94i/50i
Video Input (File base)- Video Encoding (H.264)
GOP structure
I picture only/IPPP/IBB /Closed GOP/Open GOP/ Adaptive GOP (Scene change)
Video Input (File base)- Video Encoding (H.264)
Low latency
5,6 frame (with IPPP)
Video Input (File base)- Video Encoding (H.264)
Rate control
CBR/ Capped VBR
Video Input (File base)- Video Encoding (H.264)
Resolution (Multi-channel more than x2ch)
1920x1080 /1280x720 /720x480
Video Input (File base)- Video Encoding (H.264)
Resolution (x1ch)
3840x2160 /1920x1080 / 1280x720 /720x480
Video Input (File base)- Video Decoding(H.265)
Bit depth
8, 10 bits
Video Input (File base)- Video Decoding(H.265)
Chroma Sampling
4:2:0 / 4:2:2
Video Input (File base)- Video Decoding(H.265)
Frame rate/Scan mode
60p/59.94p/50p/30p/29.97p/25p/24p /59.94i/50i
Video Input (File base)- Video Decoding(H.265)
Resolution (x1ch)
3840x2160 /1920x1080 / 1280x720 /720x480
Video Input (File base)- Video Decoding (H.264)
Bit depth
8, 10 bits
Video Input (File base)- Video Decoding (H.264)
Chroma Sampling
4:2:0 / 4:2:2
Video Input (File base)- Video Decoding (H.264)
Frame rate/Scan mode
60p/59.94p/50p/30p/29.97p/25p/24p /59.94i/50i
Video Input (File base)- Video Decoding (H.264)
Resolution (x1ch)
3840x2160 /1920x1080 / 1280x720 /720x480
Video Input (File base)- Video Decoding (MPEG-2)
Bit depth
8 bits
Video Input (File base)- Video Decoding (MPEG-2)
Chroma Sampling
4:2:0
Video Input (File base)- Video Decoding (MPEG-2)
Frame rate/Scan mode
60p/59.94p/50p(up to 720p), 30p/29.97p/25p/24p/59.94i/50i
Video Input (File base)- Video Decoding (MPEG-2)
Resolution (x1ch)
1920x1080 / 1280x720 /720x480
Video Input (File base)- Audio Encoding (Control)
Single ch
Supported
Video Input (File base)- Audio Decoding (Control)
Single ch
Supported
Video Input/Output (SDI)- Video Encoding (H.265)
8-bit encoding from 10-bit raw data
Supported
Video Input/Output (SDI)- Video Encoding (H.265)
Bit depth
8, 10 bits
Video Input/Output (SDI)- Video Encoding (H.265)
Chroma Sampling
4:2:0 / 4:2:2
Video Input/Output (SDI)- Video Encoding (H.265)
CPB delay control
3s, 1s, 0.5s
Video Input/Output (SDI)- Video Encoding (H.265)
Filter
De-blocking filter / Fixed strength
Video Input/Output (SDI)- Video Encoding (H.265)
Frame rate/Scan mode
60p/59.94p/50p/30p/29.97p/25p/24p / 59.94i/50i
Video Input/Output (SDI)- Video Encoding (H.265)
GOP structure
I picture only / IPPP / Closed GOP/Open GOP / Adaptive GOP (Scene change)
Video Input/Output (SDI)- Video Encoding (H.265)
HDR
Supported
Video Input/Output (SDI)- Video Encoding (H.265)
Low latency
5,6 frame (GOP = IBBB)
Video Input/Output (SDI)- Video Encoding (H.265)
Rate control
CBR / Capped VBR
Video Input/Output (SDI)- Video Encoding (H.265)
Resolution (Multi-channel more than x2ch)
1920x1080 /1280x720 /720x480
Video Input/Output (SDI)- Video Encoding (H.265)
Resolution (x1ch)
3840x2160 /1920x1080 / 1280x720 /720x480
Video Input/Output (SDI)- Video Encoding (H.265)
Ultra low-latency
< 1 frame
Video Input/Output (SDI)- Video Encoding (H.264)
8-bit encoding from 10-bit raw data
Supported
Video Input/Output (SDI)- Video Encoding (H.264)
Bit depth
8, 10 bits
Video Input/Output (SDI)- Video Encoding (H.264)
Chroma Sampling
4:2:0 / 4:2:2
Video Input/Output (SDI)- Video Encoding (H.264)
CPB delay control
1s, 0.5s
Video Input/Output (SDI)- Video Encoding (H.264)
Filter
De-blocking filter / Fixed strength
Video Input/Output (SDI)- Video Encoding (H.264)
Frame rate/Scan mode
60p/59.94p/50p/30p/29.97p/25p/24p / 59.94i/50i
Video Input/Output (SDI)- Video Encoding (H.264)
GOP length
One Picture (I only) / 0.5sec / 1 sec
Video Input/Output (SDI)- Video Encoding (H.264)
GOP structure
I picture only / IPPP /IBB/IBBB / Closed GOP/Open GOP / Adaptive GOP (Scene change)
Video Input/Output (SDI)- Video Encoding (H.264)
Low latency
5,6 frame (GOP = IPPPP)
Video Input/Output (SDI)- Video Encoding (H.264)
Rate control
CBR / Capped VBR
Video Input/Output (SDI)- Video Encoding (H.264)
Resolution (Multi-channel more than x2ch)
1920x1080 /1280x720 /720x480
Video Input/Output (SDI)- Video Encoding (H.264)
Resolution (x1ch)
3840x2160 /1920x1080 / 1280x720 /720x480
Video Input/Output (SDI)- Video Decoding(H.265)
Bit depth
8 / 10 bits
Video Input/Output (SDI)- Video Decoding(H.265)
Chroma Sampling
4:2:0 / 4:2:2
Video Input/Output (SDI)- Video Decoding(H.265)
Frame rate/Scan mode
60p/59.94p/50p/30p/29.97p/25p/24p / 59.94i/50i
Video Input/Output (SDI)- Video Decoding(H.265)
Resolution (x1ch)
3840x2160 /1920x1080 / 1280x720 /720x480
Video Input/Output (SDI)- Video Decoding (H.264)
Bit depth
8 / 10 bits
Video Input/Output (SDI)- Video Decoding (H.264)
Chroma Sampling
4:2:0 / 4:2:2
Video Input/Output (SDI)- Video Decoding (H.264)
Frame rate/Scan mode
60p/59.94p/50p/30p/29.97p/25p/24p / 59.94i/50i
Video Input/Output (SDI)- Video Decoding (H.264)
Resolution (x1ch)
3840x2160 /1920x1080 / 1280x720 /720x480
Video Input/Output (SDI)- Video Decoding (MPEG-2)
Bit depth
8 bits
Video Input/Output (SDI)- Video Decoding (MPEG-2)
Chroma Sampling
4:2:0
Video Input/Output (SDI)- Video Decoding (MPEG-2)
Frame rate/Scan mode
30p/29.97p/25p/24p / 59.94i/50i
Video Input/Output (SDI)- Video Decoding (MPEG-2)
Resolution (x1ch)
1920x1080 / 1280x720 /720x480
Video Input/Output (SDI)- Audio Encoding (Control)
Single ch
Supported
Video Input/Output (SDI)- Audio Decoding (Control)
Single ch
Supported
Video Input/Output (SDI)- Video Capture (Control)
Frame Rate
60p/59.94p/50p/30p/29.97p/25p/24p / 59.94i/50i
Video Input/Output (SDI)- Video Capture (Control)
Pixel Format
NV12 / YV12 / I420 / P010 / NV16 / YV16 / YUY2/P210
Video Input/Output (SDI)- Video Capture (Control)
Resolution
3840x2160 /1920x1080 / 1280x720 /720x480
Video Input/Output (SDI)- Audio Capture (Control)
Channel Layouts
8-ch / 16-ch
Video Input/Output (SDI)- Audio Capture (Control)
Sample Frequency
48KHz / 96KHz
Video Input/Output (SDI)- Audio Capture (Control)
Sampling Depth
16 bit / 24 bit
