An Advantech Video Wall Controller is designed for video wall applications. Being strictly validated by the Matrox laboratory, Advantech video Controllers feature Mura MPX Series compatibility, and industrial reliability.

 AVS-240-00A1E
‧Supported Mura Cards: 2 standard Mura MPX +1 Mura MPX-V8/V16
‧Maximum Video Inputs: 8 Analog / Digital + 16 Analog
‧Maximum Video Outputs: 8 Analog / Digital
‧Processor: Intel® Xeon® E5-2400 series up to 8 cores/16 threads
‧Memory: DDR3 1333/1600MHz (ECC) UDIMM/RDIMM up to 96GB
Video Card Details Panel Selections
Starting From $2,264.00
 AVS-290-00A1E
‧Supported Mura Cards: 2 standard Mura MPX
‧Maximum Video Inputs: 8 Analog / Digital
‧Maximum Video Outputs: 8 Analog / Digital
‧Processor: Intel® Xeon® E3-1200 series up to 4 cores/8 threads
‧Memory: DDR3 1333 MHz (ECC) UDIMM up to 32GB
Video Card Details Panel Selections
Starting From $1,766.00

 AVS-540-00A1E
‧Supported Mura Cards: 5 standard Mura MPX
‧Maximum Video Inputs: 20 Analog / Digital
‧Maximum Video Outputs: 20 Analog / Digital
‧Processor: Intel® Xeon® E5-2600 series up to 8 cores/16 threads
‧Memory: DDR3 1333/1600 MHz (ECC) UDIMM/RDIMM up to 96GB
Note: This product is still under development, specification might be adjusted.
Video Card Details Panel Selections

 AVS-541-00A1E
‧Supported Mura Cards: 5 standard Mura MPX + 11 Mura MPX-V8/V16
‧Maximum Video Inputs: 20 Analog / Digital + 176 Analog
‧Maximum Video Outputs: 20 Analog / Digital
‧Processor: Intel® Xeon® E3-1200V2 series up to 4 cores/8 threads
‧Memory: DDR3 1333/1600 MHz (ECC) UDIMM up to 16GB
Note: This product is still under development, specification might be adjusted.
Video Card Details Panel Selections

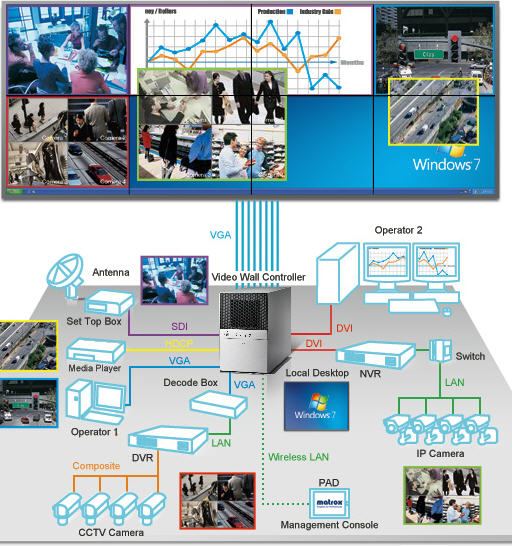

A video wall, besides being used as a signage display, can also be a powerful control room tool, aggregating, integrating, analyzing and manipulating massive amounts of information from a whole array of sources. In professional applications that require high situational awareness - such as SCADA, emergency dispatch center, transportation, security, oil and energy - a reliable, high performance video wall is really the backbone of the central control room. When equipped with Matrox Mura MPX cards, the Advantech AVS video wall controller is capable of not only handling multiple displays but also of capturing video or graphics streams from a wide range of sources such as PC, NVR, DVR, decoder box, blue ray player, set up box, etc. Once streams are captured, the AVS video wall controller flexibly switches, scales, organizes and displays that content in real time. Powered by Matrox Mura MPX and endowed with industrial reliability, the Advantech AVS video wall controller makes an ideal solution for system integrators or OEMs who need to build high performance video wall systems.
