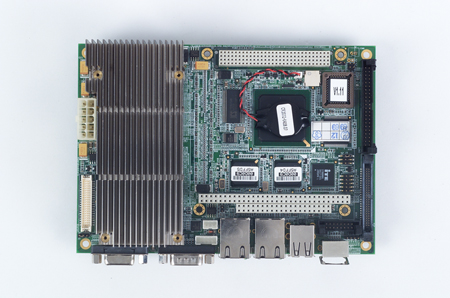

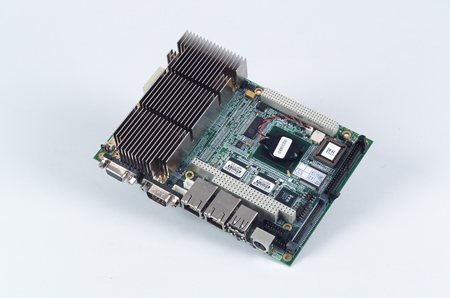

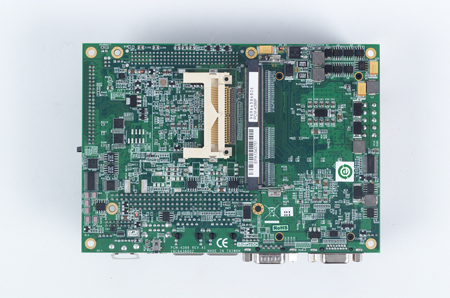

PCM-4380F-S0A2E Phase Out Celeron M 1.0 GHz+855GME EPIC SBC with 2LAN, 4COM, PC/104+

Celeron M 1.0 GHz+855GME EPIC SBC with 2LAN, 4COM, PC/104+
  • Celeron M 1.0 GHz+855GME EPIC SBC with 2LAN, 4COM, PC/104+
  • Celeron M 1.0 GHz+855GME EPIC SBC with 2LAN, 4COM, PC/104+
  • Celeron M 1.0 GHz+855GME EPIC SBC with 2LAN, 4COM, PC/104+

  1. Celeron® M 1.0GHz EPIC Embedded Board
  2. SODIMM socket supports up to 1GB ECC DDR SDRAM
  3. Display Combination: CRT + LVDS display support
  4. Supports 4 COM & 4 Ports USB 2.0
  5. Supports Dual Gigabit Ethernet
  6. Supports Compact Flash Card
  7. AC97 audio available with Audio/USB module card
  8. 2-year limited warranty
Certifications
CE
Resources
Resources Download
DatasheetDownloadDriverManualUtilitiesExtended SpecificationsReturn Policy
Please visit via PC to place order/quote
2 years extended warranty
Make an inquiry
Please Select Purchase Qty X
confirm
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Display
Type
VGA dual LVDS 36bit + 48bit
Form Factor
Form Factor
EPIC
I/O
COM Port
4
I/O
USB
6 ( 2.0)
Memory
Max. Capacity
1GB DDR ECC
Processor
Chipset
Intel® 855GME GMCH/ICH4
Processor
CPU
Celeron® M
Processor
Max Speed
1.0GHz
Storage
SSD
CF I/II
Network
LAN
2 x 10/100 Base-T
Embedded OS
Support
Wins XPE Wins CE 5.0 Wins 6.0
Environment
Temperature (Operating)
0 ~ 60°C
Expansion
Expansion
PC/104 + 8 GPIO
Expansion
Slots
PC/104 8-bit GPIO
