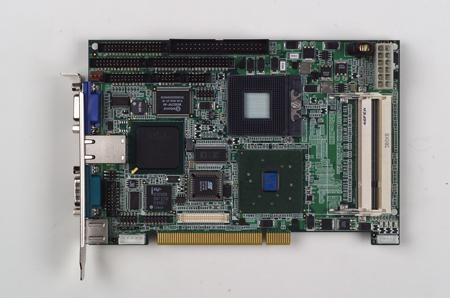

PCI-6881F-00A2E

Pentium® M 855GME+ICH slot PC w/Audio, VGA, LCD, CFC, 10/100 LSN, no CPU

Pentium® M 855GME+ICH slot PC w/Audio, VGA, LCD, CFC, 10/100 LSN, no CPU
  • Embedded new generation Intel® Pentium® M/Intel® Celeron® M Processor
  • Fanless operation @ 0 ~ 60°C (Celeron M 600 MHz/Pentium® 1.1 GHz)
  • Supports 400 MHz Front Side Bus
  • Supports 200 MHz, 266 MHz and 333 MHz ECC DDR SDRAM
  • Supports up to 1000Base-T Ethernet on board
  • Supports up to 2 Channel 36 bits LVDS for LCD
  • Supports four USB 2.0 ports
  • Supports Enhanced Intel® SpeedStep technology (Intel® Pentium® M)
  • 2 years limited warranty
  • Estimate expected life until 2010

Price: $310

RefreshATP
Ordering Information
Main Products
Part No. Description QTY
PCI-6881F-00A2E Pentium® M 855GME+ICH slot PC w/Audio, VGA, LCD, CFC, 10/100 LSN, no CPU
Accessory Products
Part No. Description Price Qty
1700001166 COM3 & 4 cable with bracket (2.0mm pitch) $4
1701140201 RS232/422/485 cable $2
1703100260 USB cable with 2 ports (2.0 mm pitch) $10
IPC-644BP-15ZE IPC-644 w/o BP with 150W P/S RoHS $199
IPC-6806SB-15ZBE IPC-6806S w/o BP With 150W P/S Rev. B RoHS $215
PCM-231A-00A1E Audio Module for PCM5823,PCA-6752 $37
