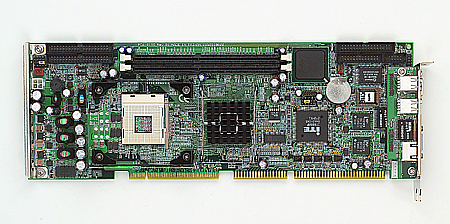

PCA-6186G2-00B2E

Socket 478 Pentium® 4/Celeron® D (up to 3.06/2.2 GHz)/845GV+ICH4 SBC w/ DDR/HISA/VGA/Dual GbE ROHS

Socket 478 Pentium® 4/Celeron® D (up to 3.06/2.2 GHz)/845GV+ICH4 SBC w/ DDR/HISA/VGA/Dual GbE ROHS
  • Socket 478 Pentium® 4/Celeron® D/Celeron up to 3.06/3.06/2.8 GHz Supports Intel® Hyper-Threading technology
  • Intel 845GV chipset 400/533 MHz FSB
  • Two DIMM sockets support up to 2GB
  • Onboard integrated VGA controller, shared memory architecture
  • Supports dual 10/100/1000Base-T Ethernet
  • Six USB 2.0 ports
  • CMOS automatic backup and restore to prevent accidental data loss of BIOS setup
  • Two years limited warranty
  • Estimated Expected life until 2010

Price: $445

RefreshATP
Ordering Information
Main Products
Part No. Description QTY
PCA-6186G2-00B2E Socket 478 Pentium® 4/Celeron® D (up to 3.06/2.2 GHz)/845GV+ICH4 SBC w/ DDR/HISA/VGA/Dual GbE ROHS
Accessory Products
Part No. Description Price Qty
1700100170 USB cable with two ports, 17.5 cm $10
1750000242 CPU cooler for Pentium 4 processor up to 2.5 GHz (70 W), for 1U chassis $22
1750000257 2U-high P4 Socket 478 CPU cooler up to 3.2 GHz (89 W) $37
PCA-USB4-00A1E I/O 4USB/1PS2 For ISBF CPU card, A105-2,RoHS $15
