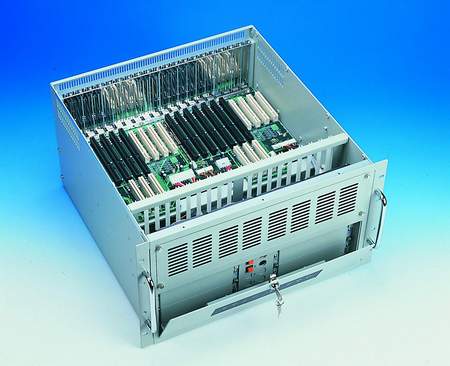

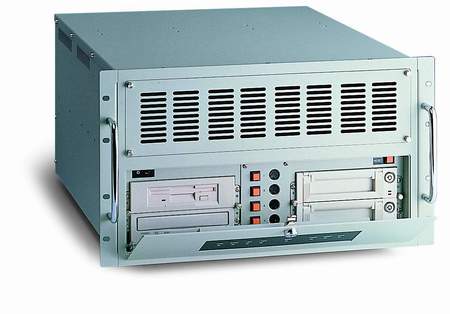

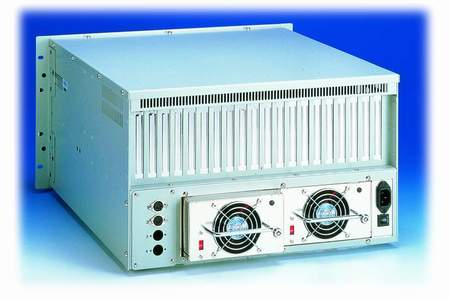

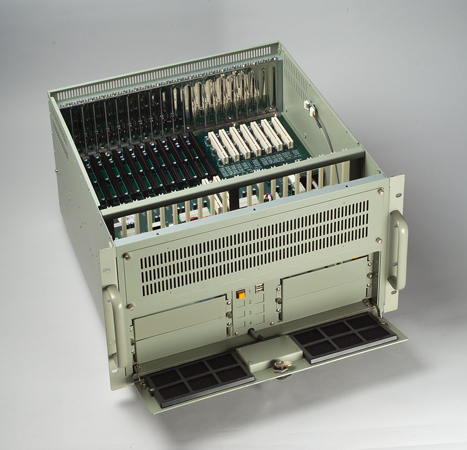

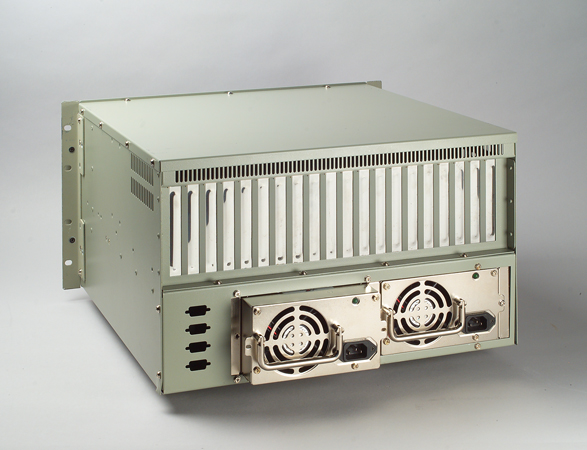

IPC-622BP-40ZCE Phase Out 6U 20-Slot Rackmount Chassis with Quad System Support and 400W PSU

6U 20-Slot Rackmount Chassis with Quad System Support and 400W PSU
  • 6U 20-Slot Rackmount Chassis with Quad System Support and 400W PSU
  • 6U 20-Slot Rackmount Chassis with Quad System Support and 400W PSU
  • 6U 20-Slot Rackmount Chassis with Quad System Support and 400W PSU
  • 6U 20-Slot Rackmount Chassis with Quad System Support and 400W PSU
  • 6U 20-Slot Rackmount Chassis with Quad System Support and 400W PSU
  • 6U 20-Slot Rackmount Chassis with Quad System Support and 400W PSU
  • 6U 20-Slot Rackmount Chassis with Quad System Support and 400W PSU
  • 6U 20-Slot Rackmount Chassis with Quad System Support and 400W PSU

  1. 6U rackmount chassis supports up to 4 multi-systems

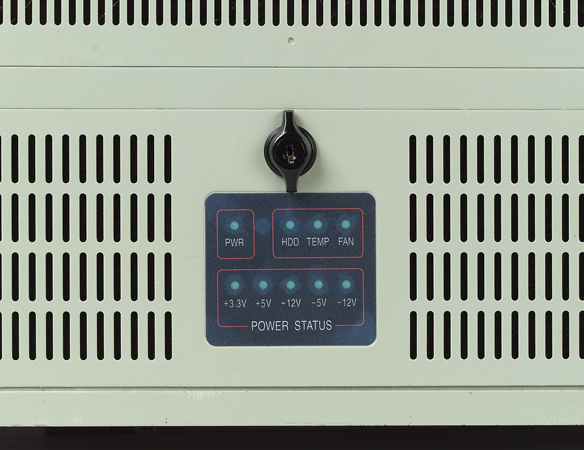

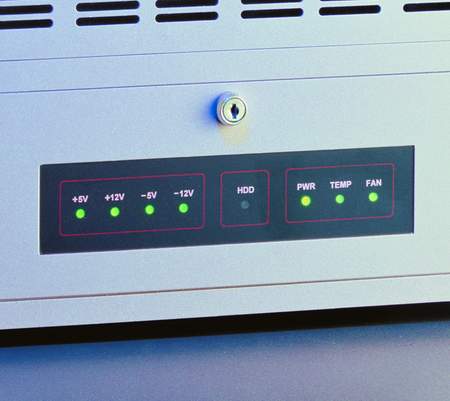

  2. Front LEDs and audible alarm

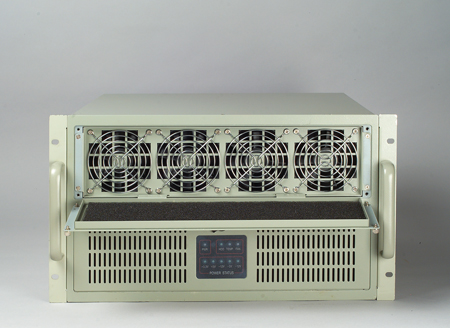

  3. Four 53-CFM cooling fans with filters
  4. Various backplane options for up to 20 slots
  5. Lockable front door prevents unauthorized access and displays the system status clearly
  6. Supports up to four sets of dual USB ports in the front
  7. Four reserved COM port openings on the rear panel
Certifications
CE
Resources
Resources Download
DatasheetDownloadManual3D ModelExtended SpecificationsReturn Policy
Please visit via PC to place order/quote
2 years extended warranty
Make an inquiry
Please Select Purchase Qty X
confirm
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Form Factor
Form Factor
6U Rackmount
Power Supplies
Power Supply
400W (Single)
Cooling
Air Filter
Yes
Environment
Non-Operating Vibration
1 Grms
Environment
Non-Operating Humidity (Non-condensing)
10 ~ 95% @ 40 °C
Environment
Non-Operational Temperature
-20 ~ 60° C (-4 ~ 140° F)
Environment
Operating Humidity
10 ~ 85% @ 40° C
Environment
Operating Shock
5G (with 11ms duration, half sine wave
Environment
Operating Temperature
0~45 °C (32~113 °F)
Environment
Operating Vibration
0.5 Grms
Physical Characteristics
Dimension (W x H x D)
482 x 266 x 465 mm ( 19" x 10.5" x 18.3" )
Physical Characteristics
Weight (Net)
9.96 kg (21.93 lb)
Disk Drive Bay
5.25" Front-Accessible
4
Miscellaneous
Control
Power / System reset / Alarm reset switch
Miscellaneous
LED Indicators
Power, HDD, Temperature, FAN, and Power voltage Status
Miscellaneous
Rear Panel
2 x 9-pin D-Sub openings
Drive Bay
3.5" Internal
2
Intelligent System Module
Remote Monitoring
CPU/System fan speed , CPU/System temperature , motherboard voltage
Recommended Peripherals

Accessory Products

Part No. Description Unit Price Qty
1700002444 A Cable PB SW/1x2P-2.54 57cm $10.00
1700007032 M Cable 2x5P-2.54/DUAL USB-A 8P(F) 65CM F/10 $10.00
2130004802S000 Door Filter 142x97x5mm for IPC-611 A1 $10.00
Part No. Qty
1700002444
A Cable PB SW/1x2P-2.54 57cm
Unit Price: $10.00
1700007032
M Cable 2x5P-2.54/DUAL USB-A 8P(F) 65CM F/10
Unit Price: $10.00
2130004802S000
Door Filter 142x97x5mm for IPC-611 A1
Unit Price: $10.00
